INSTALLATION
3

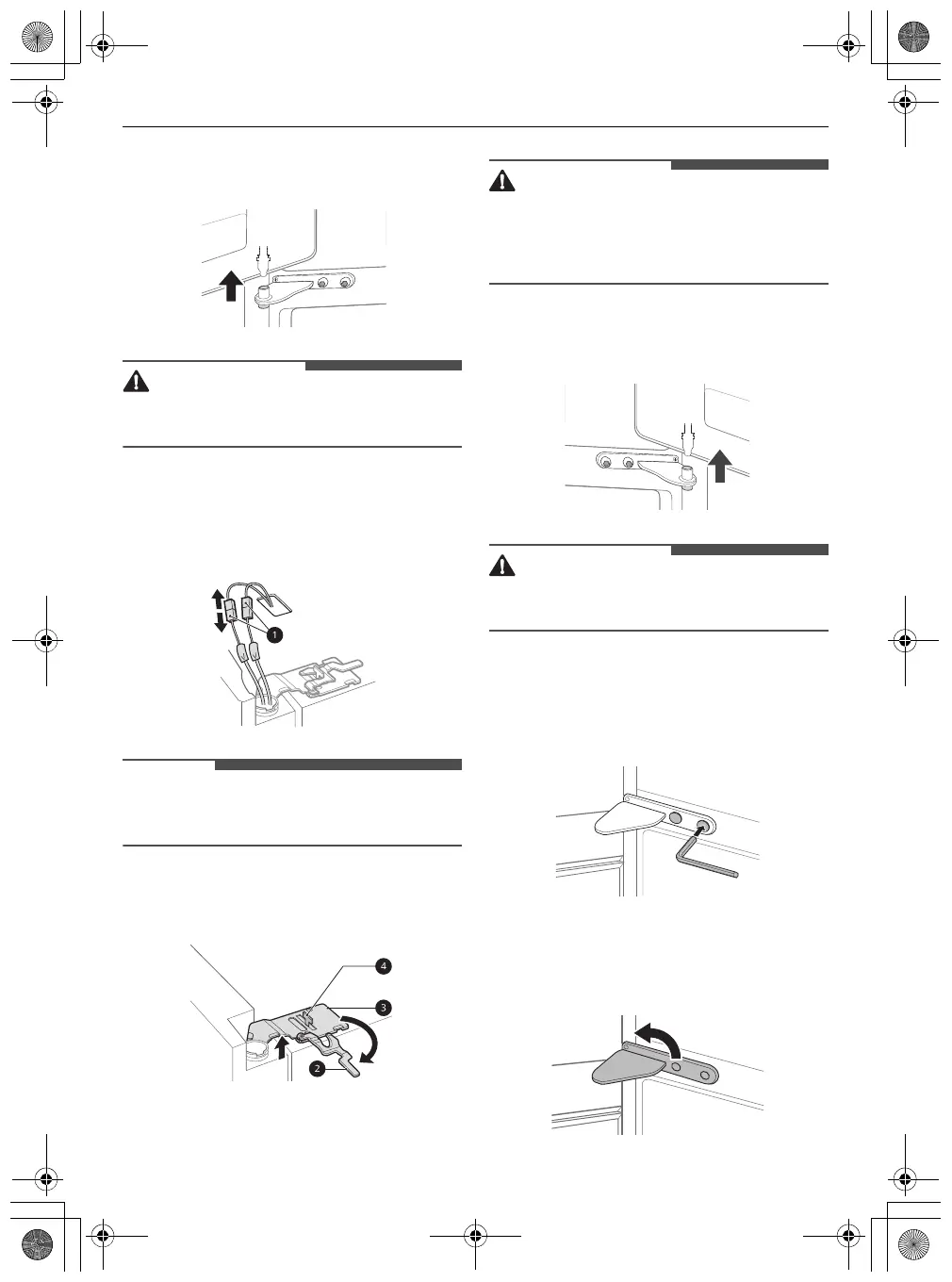

Lift the door from the middle hinge pin and
remove the door.
• Place the door, inside facing up, on a non-
scratching surface.
Removing the Right Fridge Door
1
Disconnect all wire harnesses
a
.
• The number of wire harnesses may vary
depending on the model.
2
Rotate the hinge lever
b
clockwise. Lift the top
hinge
c
free of the hinge lever latch
d
.
• When lifting the hinge free of the hinge lever
latch, be careful that the door does not fall
forward. It is recommended that two or more
people carry out the door removal and refitting.
3
Lift the right fridge door until it is free of the
middle hinge assembly.
• Place the door on a non-scratching surface with
the inner side facing up.
Removing the Freezer Door
1
Remove the two hinge bolts.
2
Twist the hinge to raise the pivoting end so that
the door can be lifted off. Lift the door off the
lower hinge pin and remove it.
