Push
Push

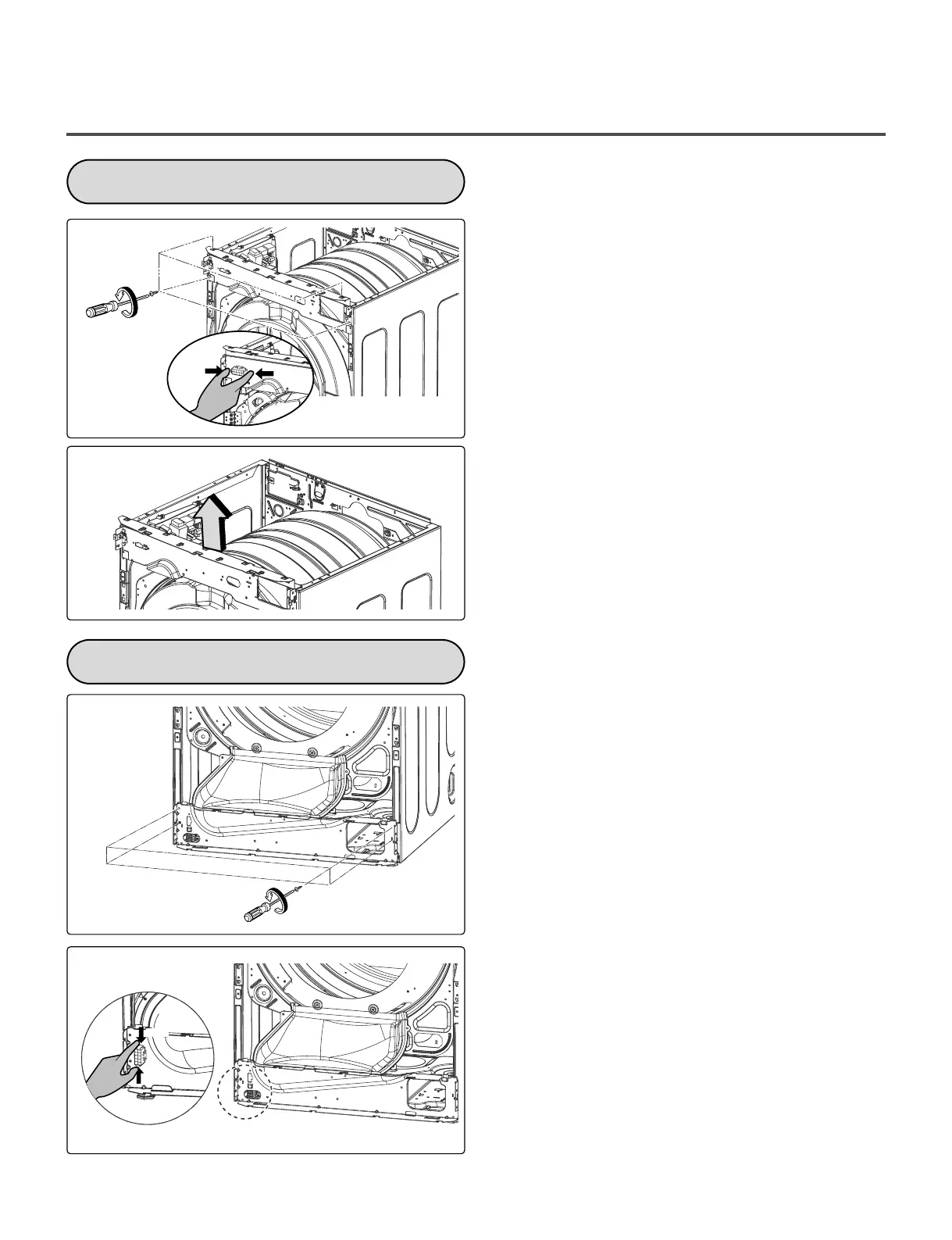

P
ANEL FRAME
1.
Disconnect the housing of the panel frame.
2.
Remove 4 screws on the panel frame.
3.
Disassemble panel frame from pulling upside.
Push
Push
LOWER FRAME
1.
Disconnect the housing of the panel frame.
2.
Remove 4 screw on the panel frame.
3.
Disassemble lower frame from pulling forward
with pushing down.
70
69
71
Table of Contents
Table of Contents
3
Important Safety Instructions
4
Specifications
9
Features and Benefits
11
Electrical Requirements for Electric Dryers
18
Electrical Requirements for Gas Dryers
41
Gas Requirements and Instructions
42
Component Testing Information
48
Motor Diagram and Schematic
51
Control Layout
52
Wiring Diagram
53
Diagnostic Test
54
Test 1 120Vac Electrical Supply
55
Test 3 Motor Test
59
Test 5 Door Switch Test
61
Error Mode
64
Exploded View
75
Control Panel & Plate Assembly - Coin Type
75
Cabinet & Door Assembly - Electric Stack Upper Type
77
Cabinet & Door Assembly - Electric Stack Lower Type
78
Cabinet & Door Assembly - Gas Stack Upper Type
79
Cabinet & Door Assembly - Gas Stack Lower Type
80
Drum & Motor Assembly: Gas Type
82
