LG GD580 - Checking Front End Module Block Input Logic

- 133 -
Copyright © 2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
4. Trouble Shooting
EGSM Tx
ANTSW1
ANTSW2
ANTSW3
WCDMA 2100
DCS/PCS Tx
4.17 Checking Front End Module Block input logic

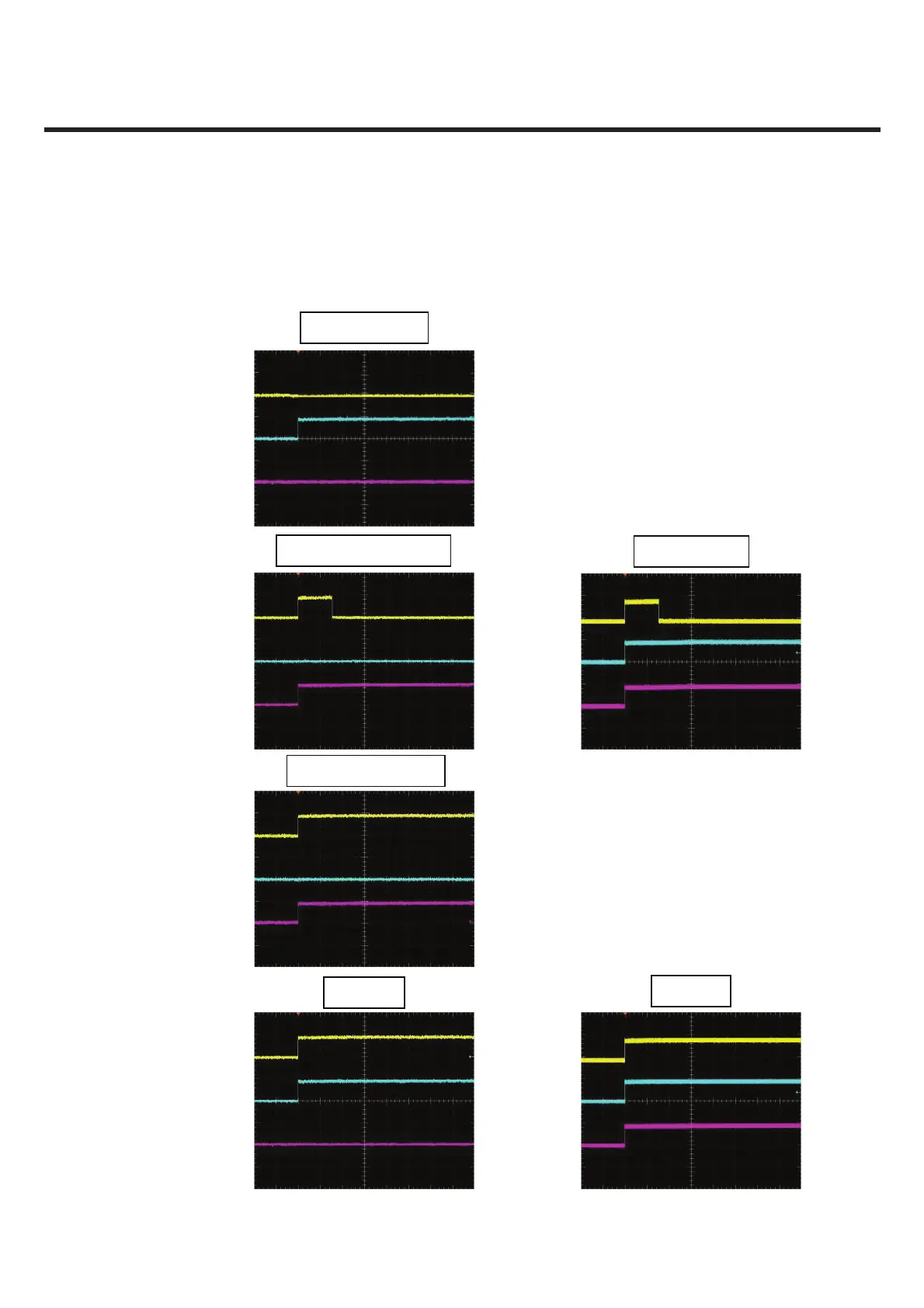

4.17.1 Mode Logic by TP Command
DCS Rx
PCS Rx
ANTSW1
ANTSW2
ANTSW3
ANTSW1
ANTSW2
ANTSW3
EGSM Rx
ANTSW1
ANTSW2
ANTSW3
ANTSW1
ANTSW2
ANTSW3
ANTSW1
ANTSW2
ANTSW3
