Chapter 1 Introduction
1-5
2) FLASH O/S Ver. check
For Cnet I/F module Ver. 2.0 or later, all functions to embody Cnet functions are saved in flash memory, and version
check and upgrade are available through Frame Editor. Flash O/S version can be checked by Frame Editor if CPU
O/S is of Ver. 2.0 or later.

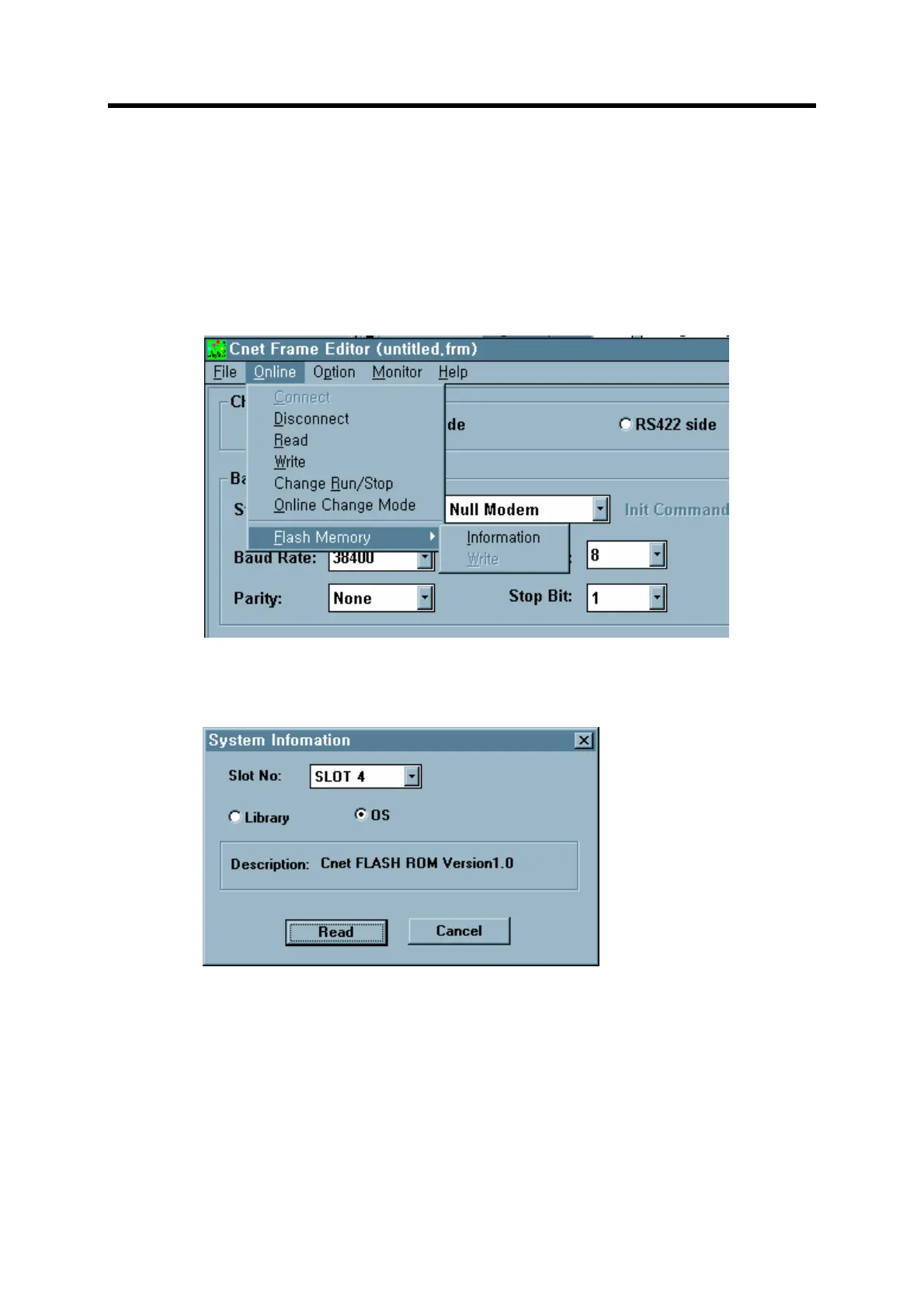

A) Select flash memory information with Frame Editor after Online connection.
B) Select slot number and O/S on which Cnet I/F module is mounted from the system information screen, and
click reading button to display the system information screen as below for version check of FLASH ROM.
To Next Page
