LG GR-151SPF - CIRCUIT DIAGRAM; Electrical Schematic Diagram

2000.03.13 100/70

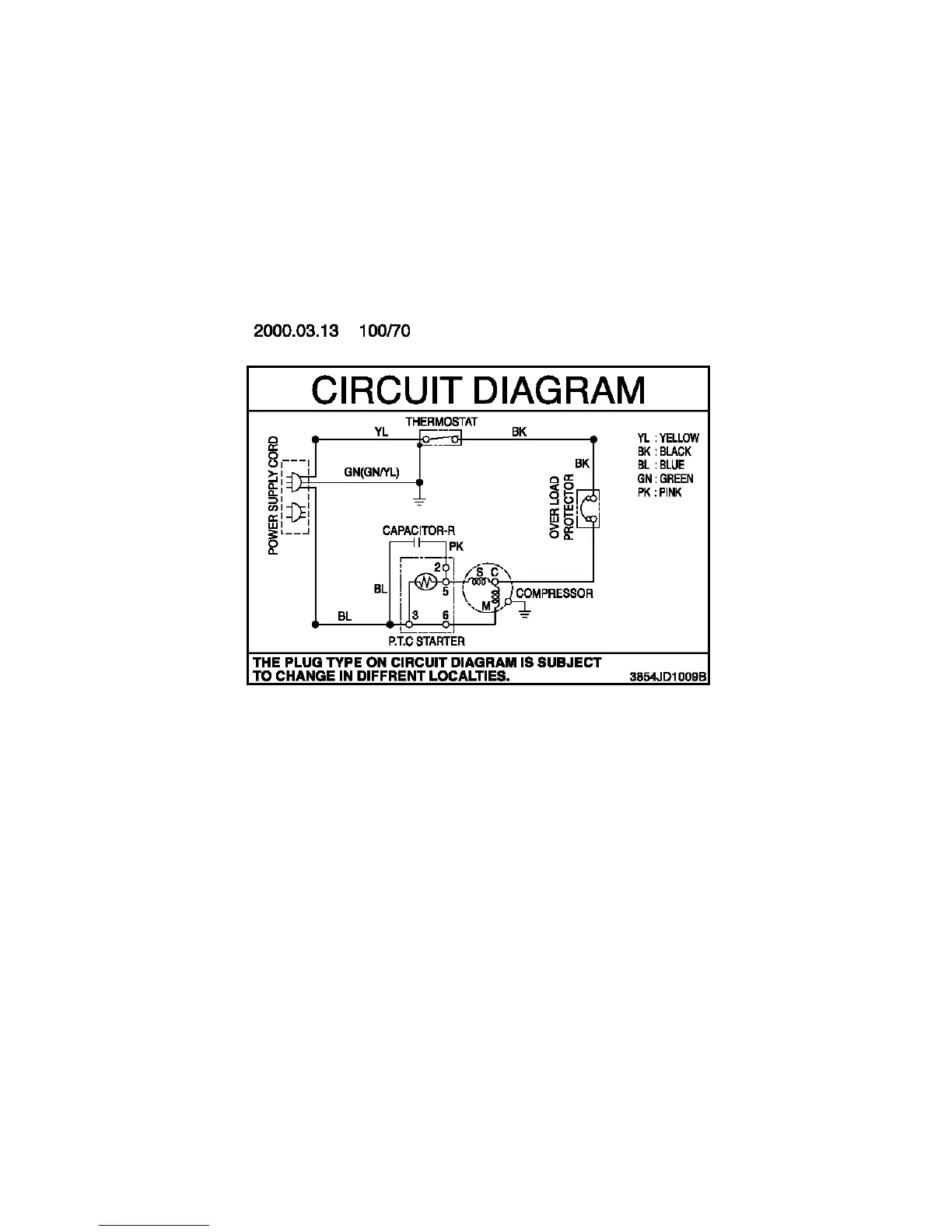

CIRCUIT DIAGRAM
BK
THERMOSTAT
Y"
_, i i GN(GI_.)
_l 4N-I
BL
BK
BL_ _ __C_IOMPRESSOR
P.T.CSTARTER
YL :YELLOW
BK:BLACK
BL:BLUE
GN:GREEN
PK:PINK
THE PLUG TYPE ON CIRCUIT DIAGRAM IS SUBJECT
TO CHANGE IN DIFFRENT LOCALTIES. 3854,JD1009E
