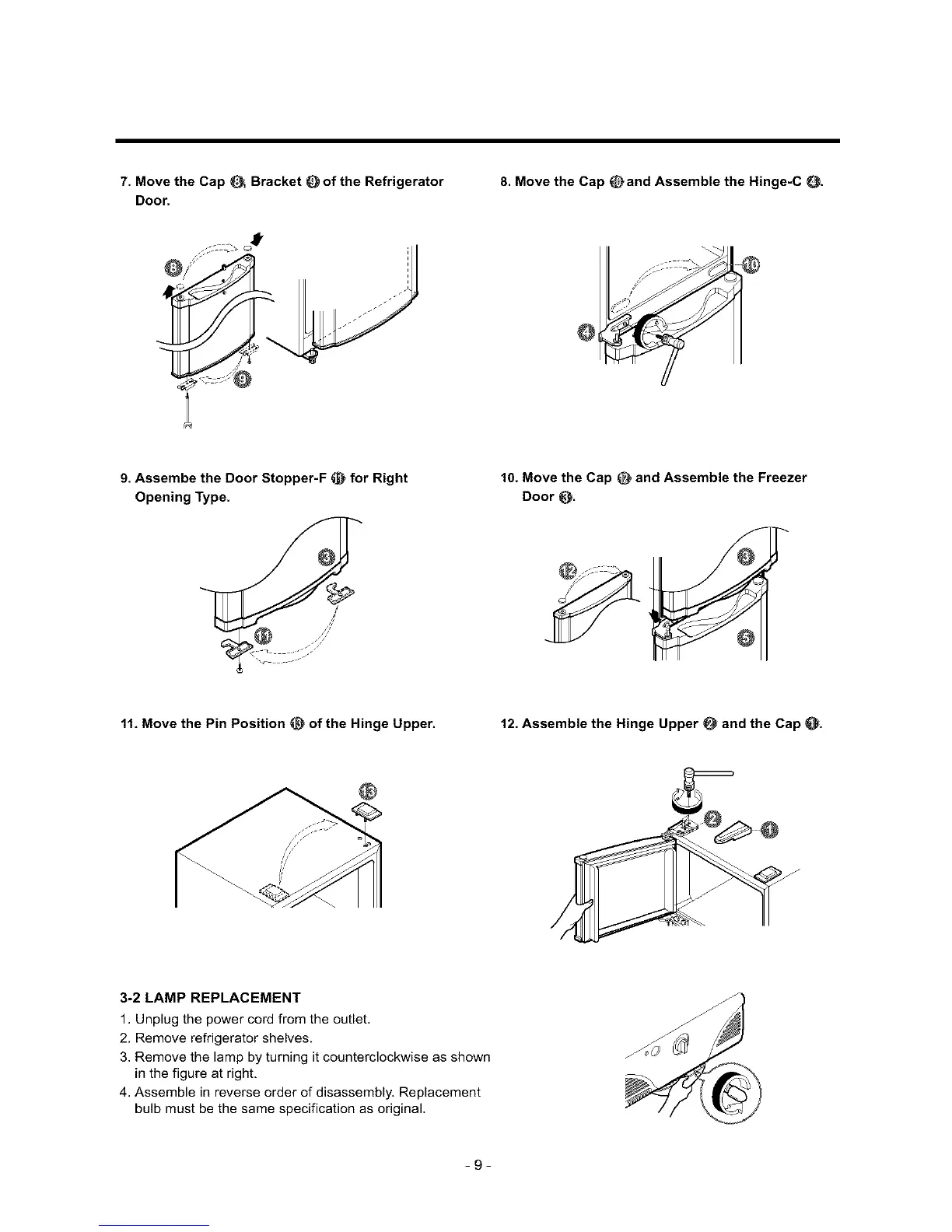

7. Move the Cap _ Bracket O of the Refrigerator
Door.
8. Move the Cap _and Assemble the Hinge-C O.
OI
9. Assembe the Door Stopper-F _ for Right
Opening Type.
10. Move the Cap _ and Assemble the Freezer
Door O-
11, Move the Pin Position _ of the Hinge Upper. 12. Assemble the Hinge Upper _ and the Cap O_
3-2 LAMP REPLACEMENT
1. Unplug the power cord from the outlet.
2. Remove refrigerator shelves.
3. Remove the lamp by turning it counterclockwise as shown
in the figure at right.
4. Assemble in reverse order of disassembly. Replacement
bulb must be the same specification as original.
-9-
