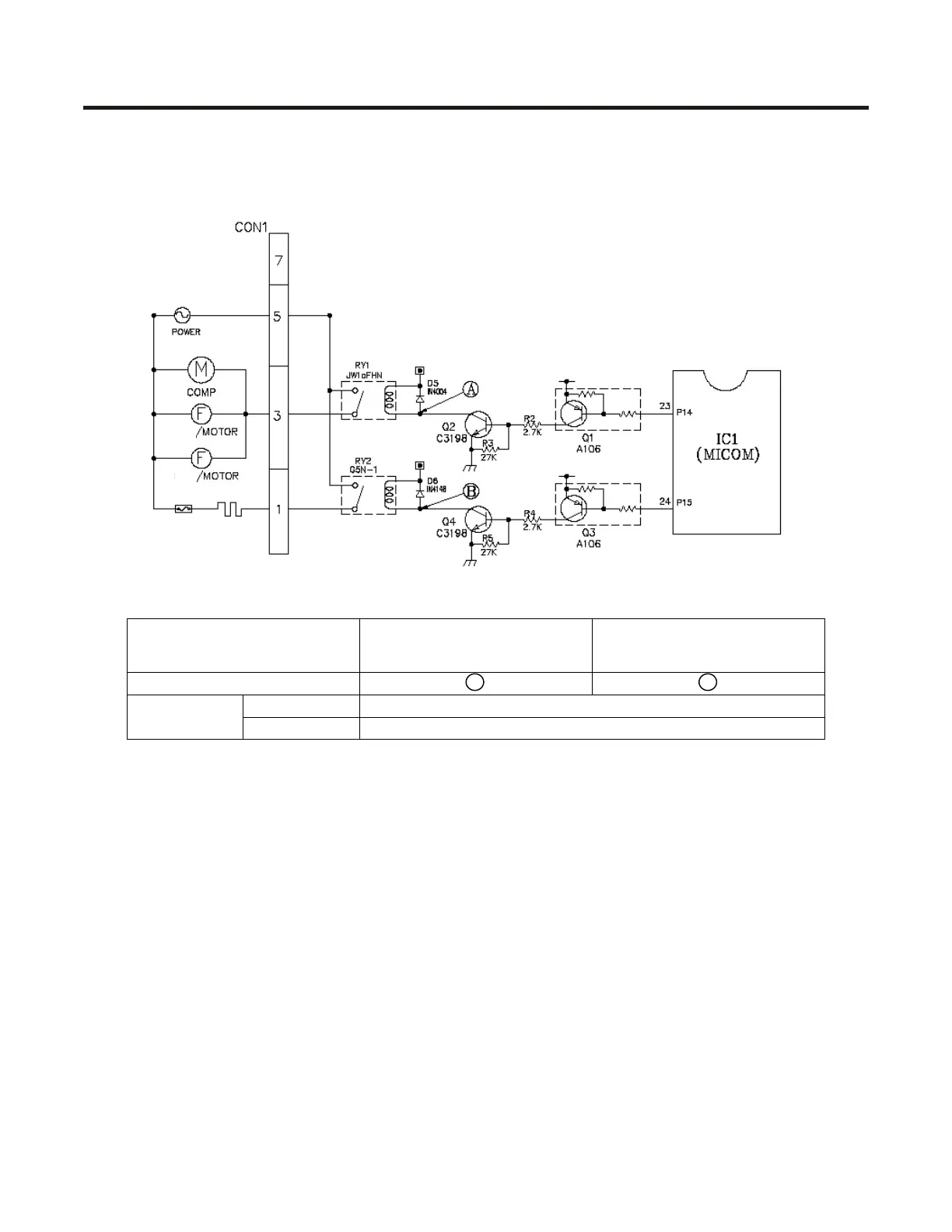

7-2-4 LOAD DRIVE CIRCUIT
1. Load Drive Condition Check
FEEZER
FAN
COOLING
FAN
MELTING
FUSE
DEFROST
HEATER
Load Type
Compressor, Freeze Fan
Motor
Defrosting Heater
Measurement Location
A B
ON 1 V or below
Condition
OFF 12 V
