LG GS74SXS Service Manual

Troubleshooting

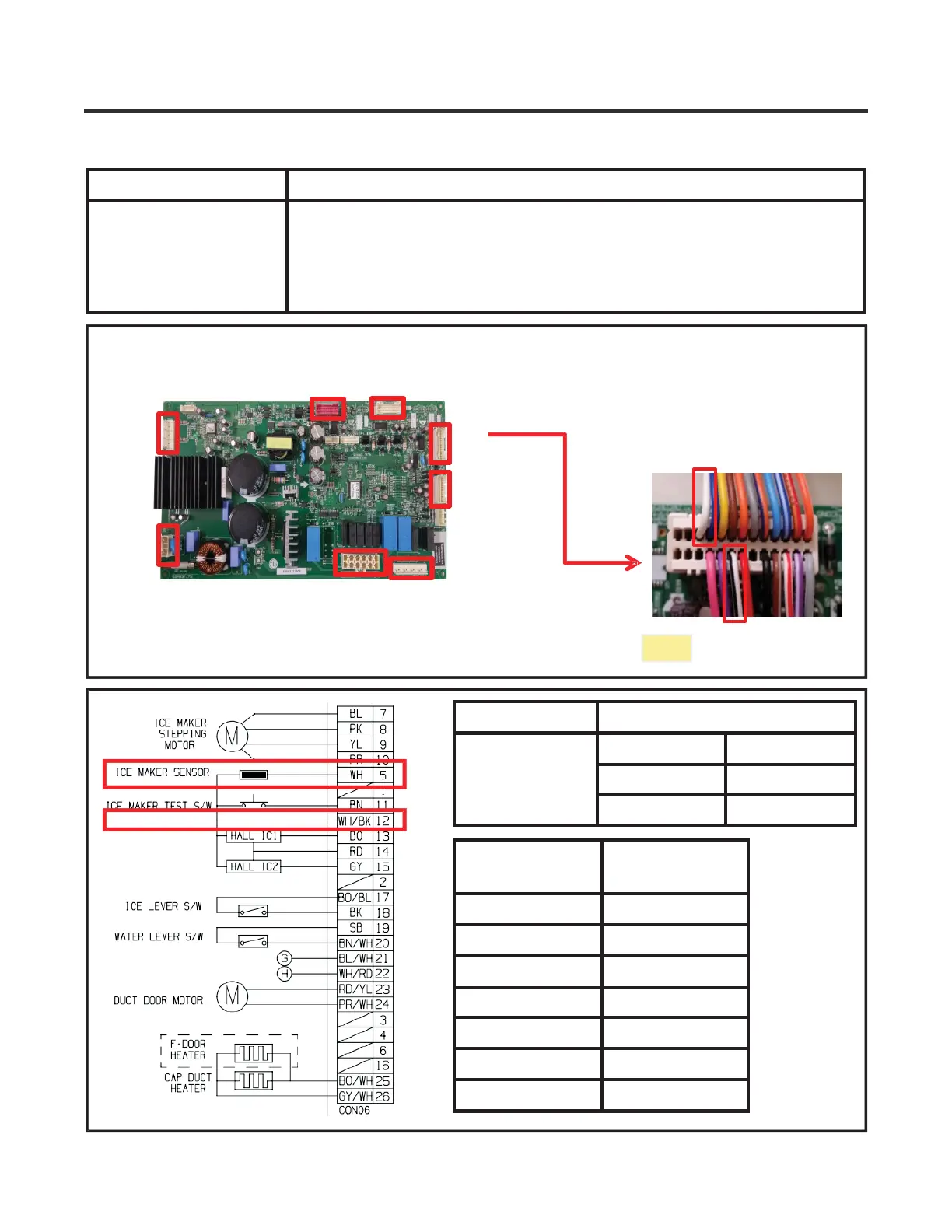

4. Icing Sensor Error
Symptom Check Point
1. E IS 1. Check for a loose connection
2. Check Sensor Resistance
Resistance [Ω]
CON6
5
st
pin ~ 12
th
pin
Short 0
Open OFF
Other Normal
CON6
5
st
pin ~ 12
th
pin
Resistance [Ω]
-22ºF / -30ºC 40k
-13ºF / -25ºC 30k
-4ºF / -20ºC 23k
-13ºF / -25ºC 17k
14ºF / -10ºC 13k
23ºF / -5ºC 10k
32ºF / 0ºC 8k
( P/N EBR809775**)
CON6
46
CON 6
CON 5
CON 2CON 3
CON 8
CON 7
CON 201
CON 1
