a
11

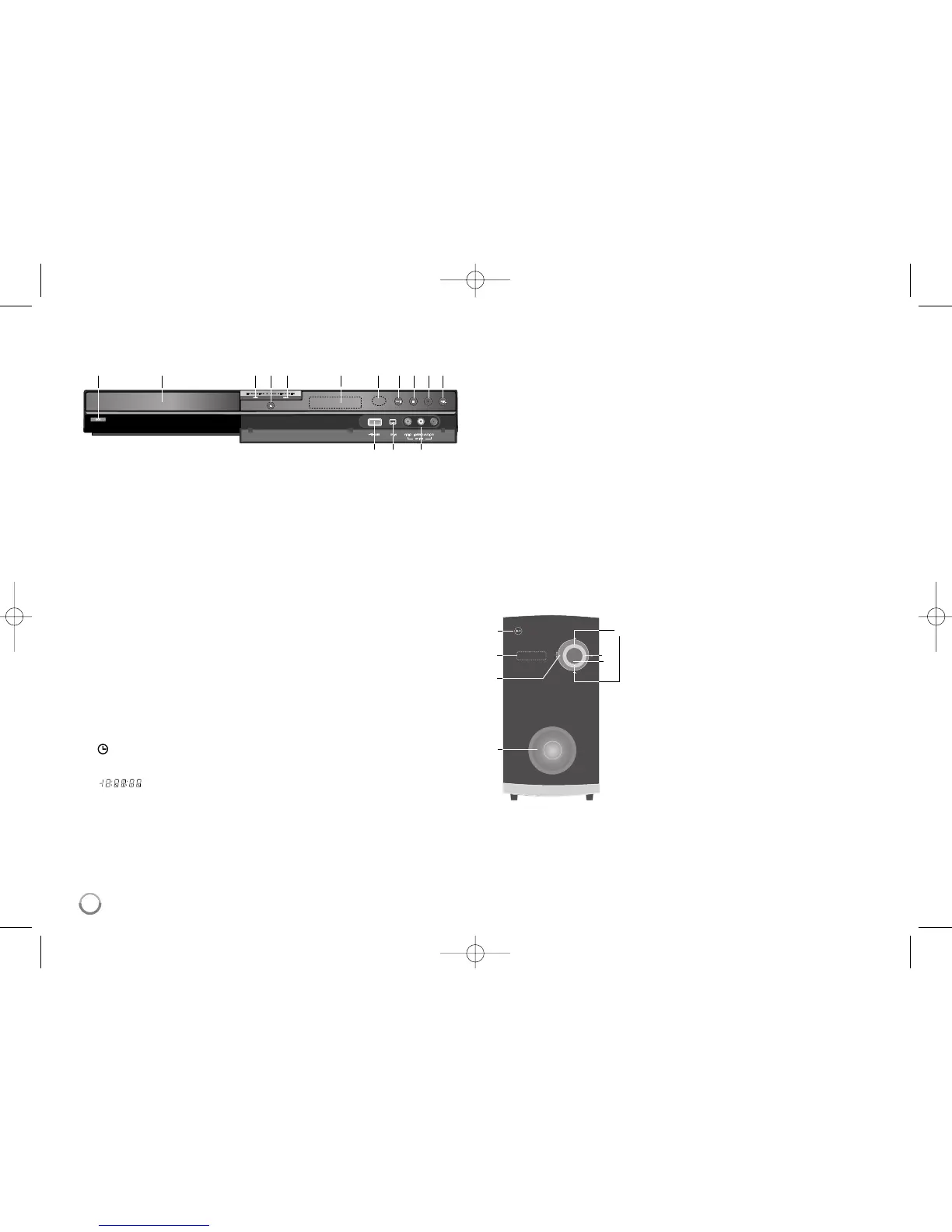

/ I (POWER button)
Switches the unit ON or OFF.
b Disc Tray
Insert a disc here.
c DVD
Set the recorder’s mode to DVD.
d OPEN/CLOSE (Z)
Opens or closes the disc tray.
e HDD
Set the recorder’s mode to HDD.
f Display window
Shows the current status of the unit.
T/S: Indicates the timeshift mode.
REC: The unit is recording.
HDD: The unit is in HDD mode.
DVD: The unit is in DVD mode.
HDD bBDVD: The unit is dubbing.
: Indicates when the unit is in timer recording or a timer recording is
programmed.
: Indicates clock, total playing time, elapsed time, title number,
chapter/track number, channel, etc.
g Remote Sensor
Point the remote control here.
h N / X (PLAY / PAUSE)
Starts playback.
Pause playback or recording temporarily,
press again to exit pause mode.
i x (STOP)
Stops playback or recording.
j z (REC)
Starts recording. Press repeatedly to set the recording time.
k RES. (Resolution)
Sets the output resolution for HDMI and COMPONENT OUTPUT jacks.
- HDMI: 576i, 576p, 720p, 1080i, 1080p
- COMPONENT: 576i, 576p
l USB Port
Connect a USB Flash memory.
m DV IN
Connect the DV output of a digital camcorder to the HDD/DVD recorder.
n AV IN 3 (VIDEO IN/AUDIO IN (Left/Right))
Connect the audio/video output of an external source (Audio system, TV/
Monitor, VCR, Camcorder, etc.).
a
11
/ I (POWER button)
Switches the unit ON or OFF.
b Display window
Shows the current status of the unit.
c FUNCTION
Selects the active subwoofer’s mode to
DVD/TV or FM.
d TUN.(+/-)
Tunes in the desired radio station.
e VSM
Selects the virtul sound.
f VOLUME
Adjusts speaker volume.
g Speaker duct
A hall for plentiful bass sound on speaker
cabinet (enclosure).
Be careful to make sure children not to put
their hands or any objects into the speaker
duct.
HDD/DVD recorder
Active Subwoofer
a
b
c
g
e
f
ab cdefghijk
lm n
d
