Connecting the Display
Using the Computer

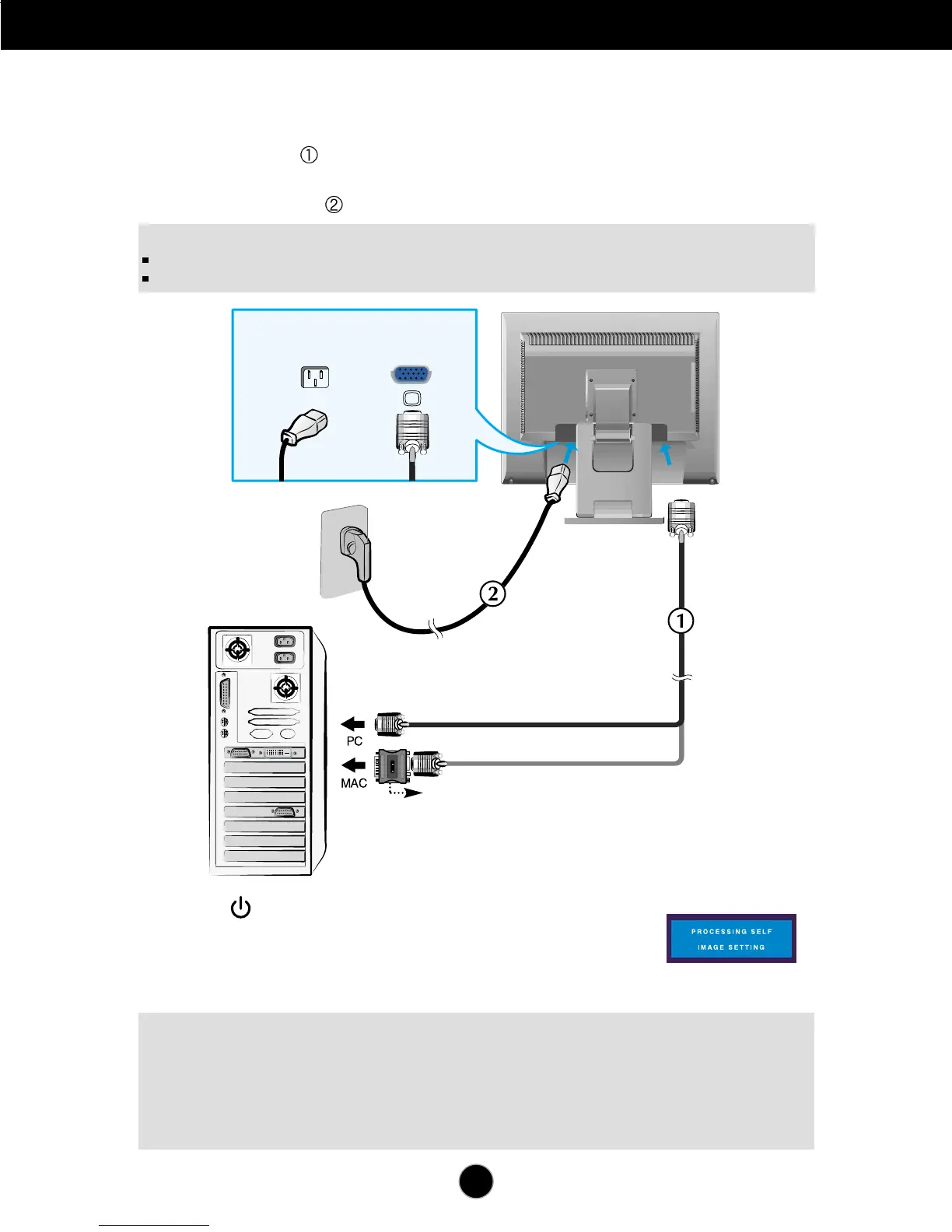

1. Connect the signal cable. When attached, tighten the thumbscrews to secure
the connection.
2. Connect the power cord into a proper power outlet that is easily accessible and
close to the display.
3. Press button on the front switch panel to turn the
power on. When monitor power is turned on, the 'Self
Image Setting Function' is executed automatically.
(Only analog mode)
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display may differ from the view as shown.
Wall-outlet type
D-sub
Mac adapter
For Apple Macintosh use, a separate plug adapter is needed to
change the 15 pin high density (3 row) D-sub VGA connector on
the supplied cable to a 15 pin 2 row connector.
Power Cord
Signal Cable
NOTE
‘ Self Image Setting Function’? This function provides the user with optimal display settings.When
the user connects the monitor for the first time, this function automatically adjusts the display to
optimal settings for individual input signals.
‘SET/AUTO’ Function? When you encounter problems such as blurry screen, blurred letters, screen
flicker or tilted screen while using the device or after changing screen resolution, press the
SET/AUTO function button to improve resolution.
To Next Page
