Connecting Cables between Indoor Unit and Outdoor Unit
Connecting Cables between Indoor Unit and Outdoor Unit

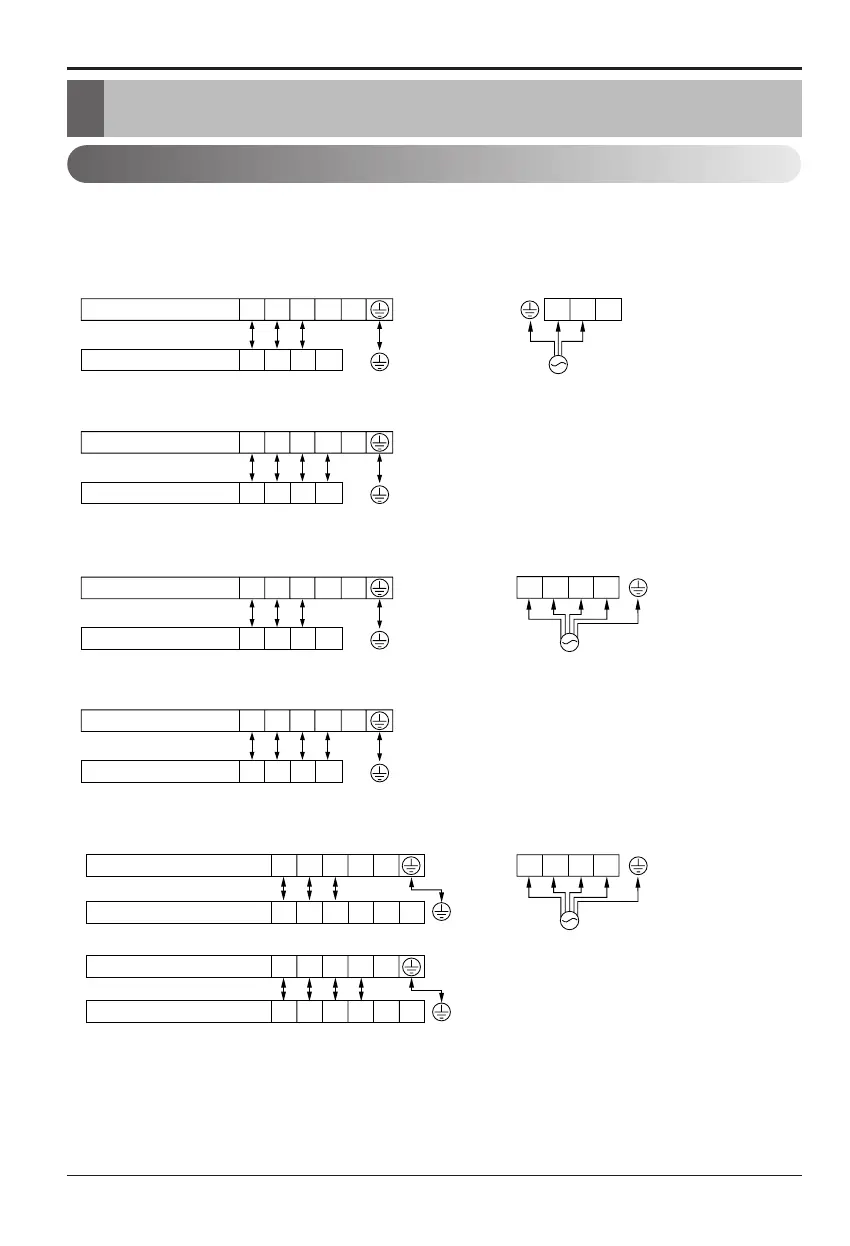

■ Connect the wires to the terminals on the control board individually according to the outdoor unit connection.
• Ensure that the color of the wires of outdoor unit and the terminal No. are the same as
those of indoor unit respectively
(380 - 415 V3N~)
POWER INPUT
RS TN
(380 - 415 V3N~)
POWER INPUT
RS TN
■ 42 / 48 / 60 kBtu/h
• Cooling & Heating type
• Cooling only type
Terminals on the indoor unit
1(L) 2(N) 453
Terminals on the outdoor unit
1(L) 2(N) 453
Terminals on the indoor unit
1(L) 2(N) 453
Terminals on the outdoor unit
1(L) 2(N) 453
■ 30 / 36 kBtu/h (1Ø)
• Cooling only type
• Cooling & Heating type
2(N) 345 1(L)
4(N)3(L)
Terminals on the outdoor unit
Terminals on the indoor unit
POWER INPUT
(220 - 240 V~)
1(L) 2(N)
5
2(N) 345 1(L)
4(N)3(L)
Terminals on the outdoor unit
Terminals on the indoor unit
56
■ 36 kBtu/h (3Ø)
• Cooling only type
• Cooling & Heating type
2(N) 345 1(L)
4(N)3(L)
Terminals on the outdoor unit
Terminals on the indoor unit
5
2(N) 345 1(L)
4(N)3(L)
Terminals on the outdoor unit
Terminals on the indoor unit
56
Connecting cables to the Indoor Unit
