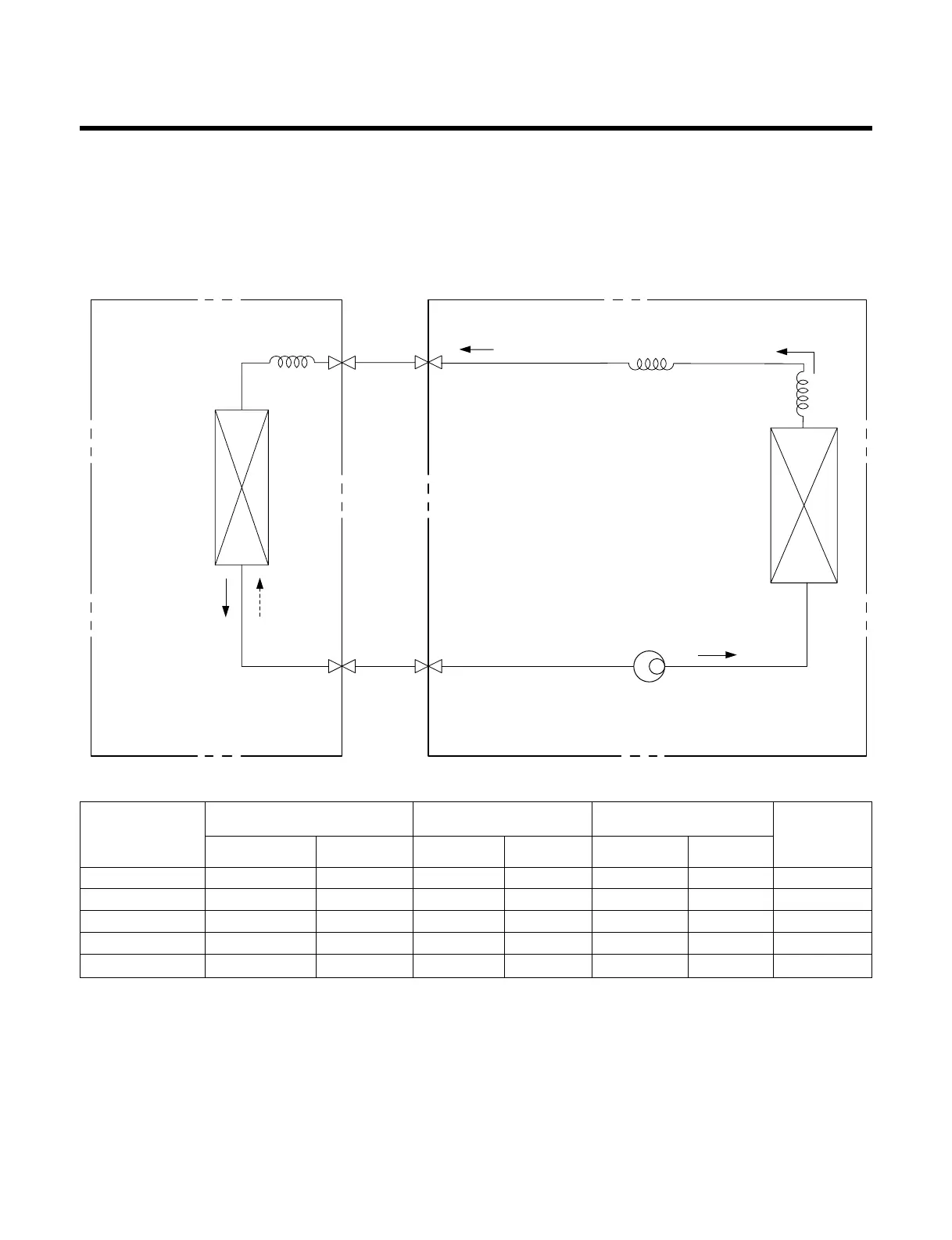

LG LB-E4881CL - Cooling Only Refrigeration Cycle Diagram

–12–
• COOLING ONLY (LB-D1861CL/LB-D1863CL/LB-D2461CL/LB-D2463CL/LB-F3661CL/
LB-D3663CL/LB-F3681CL/LB-F3683CL/LB-E4881CL/LB-E4883CL/
LB-E6081CL/LB-E6083CL)
• Rated performance for refrigerant line length of: .7.5m
• If 18K Model is installed at a distance of 15m, 188g of refrigerant should be added (15-7.5)x25g=188g
INDOOR UNIT OUTDOOR UNIT
HEAT
EXCHANGER
(CONDENSER)
HEAT
EXCHANGER
(CONDENSER)
COMPRESSOR
GAS SIDE
LIQUID SIDE
CAPILLARY TUBE
Pipe size(Diameter: ø) Piping length(m) Elevation(m)
MODEL
Gas Liquid Rated Max. Rated Max.
18K 5/8" 1/4" 7.5 50 5 30 25
24K 5/8" 1/4" 7.5 50 5 30 25
36K 5/8" 3/8" 7.5 50 5 30 40
48K 3/4" 3/8" 7.5 50 5 30 50
60K 3/4" 1/2" 7.5 50 5 30 60
*Additional
refrigerant
(g/m)
