LG LC128HV4 - Outdoor Unit Wiring Diagram

31
Product Data
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
OUTDOOR UNIT WIRING DIAGRAM
LUU097HV and LUU127HV

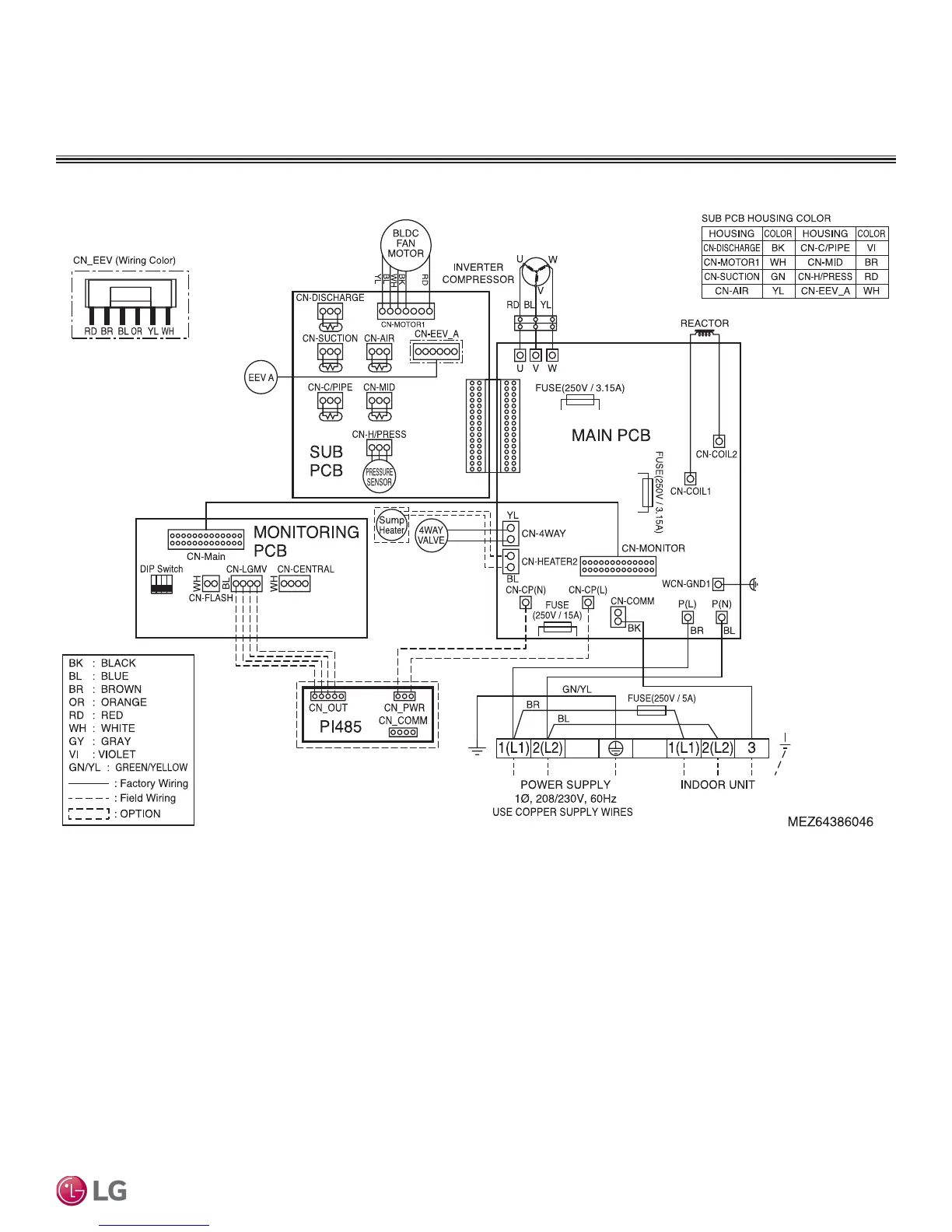

Figure 25: Four-Way Ceiling Cassette LUU097HV and LUU127HV Outdoor Unit Wiring Diagram.
