LG LC260WX2 - LC320 WX2 Model Mechanical Procedures; T-CON Board Replacement for LC320 WX2

Mechanical Instructions
EN 12 LCD LPL 2K74.
4.4 Model LC320WX2
4.4.1 Control Board (T-CON Board)

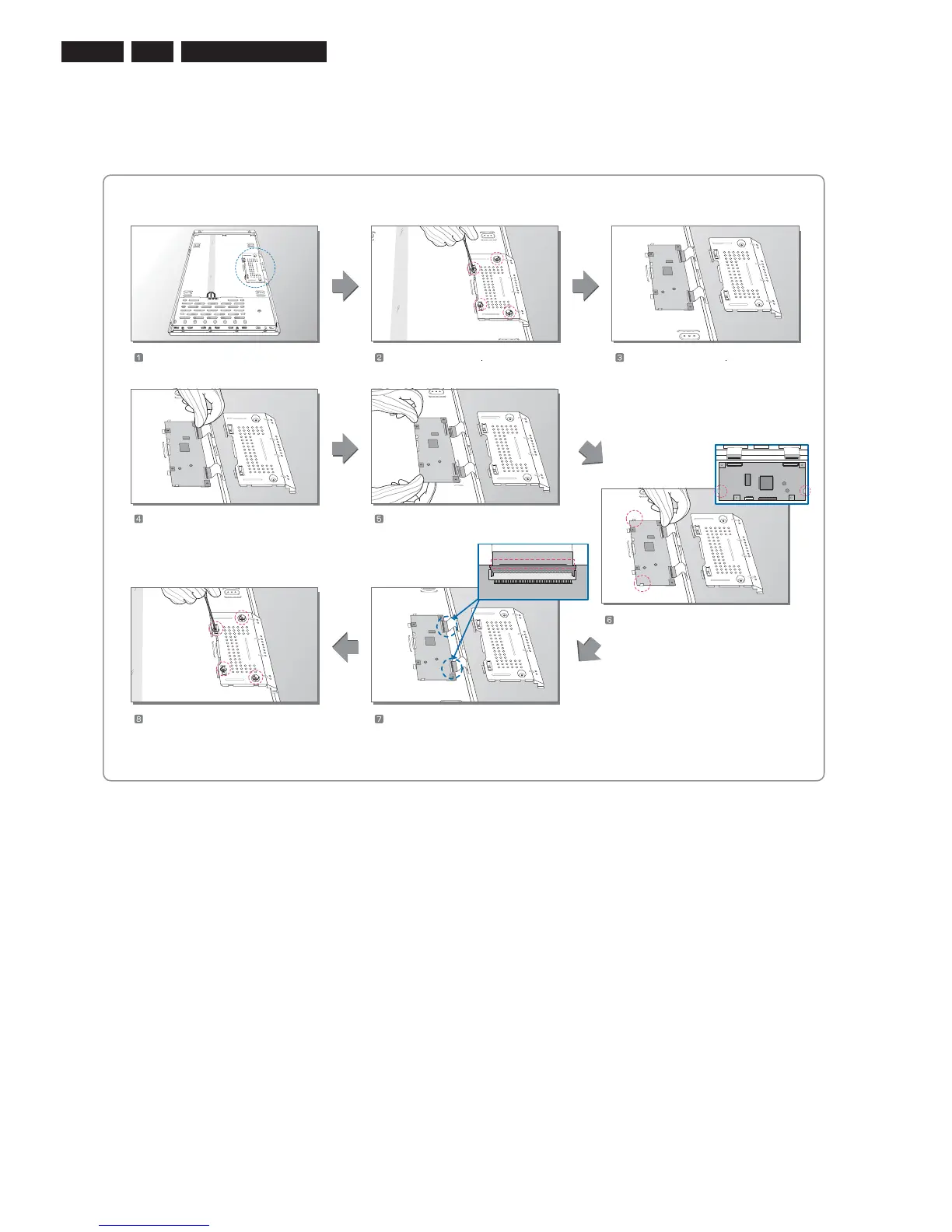

Figure 4-9 Replacement instructions T-CON board
MODEL: LC320WX2-SL01
Separate the FFC(60pin) 2EA. Separate the T-CON Board.
Attach the Cover Shield and
Assemble the Screw(4EA).
Check the FFC(60pin) 4EA.
Replace of T-CON Board and
Assemble the FFC(60pin) 4EA.
* Guide Pin station keeping check.
H_16890_022.eps
230507
Prepare the LCM. Separate the Screw(4EA)
Separate the Cover Shield
