Mechanical Instructions
EN 8 LCD LPL 2K74.
4.2.3 Inverter (Slave) Board

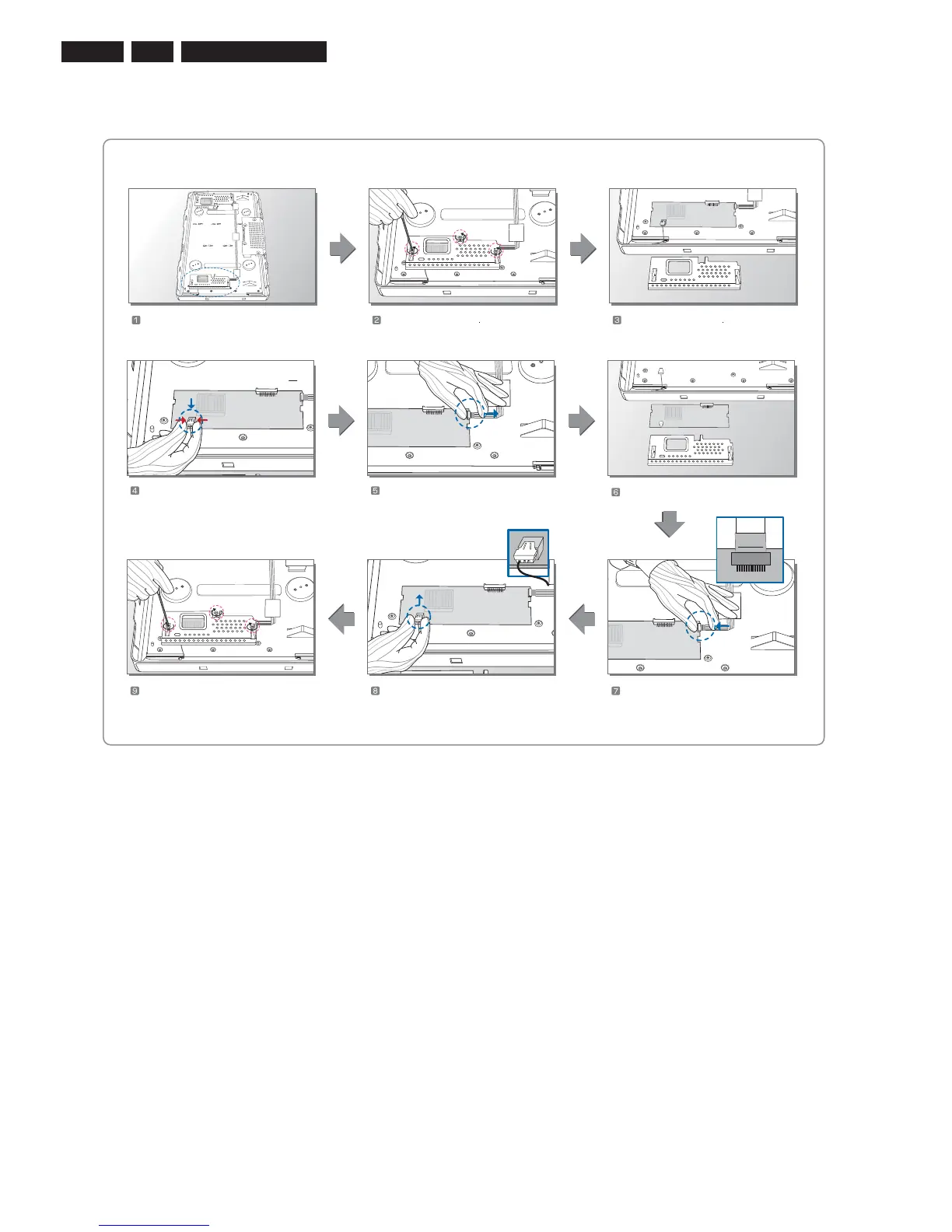

Figure 4-5 Replacement instructions Inverter (slave) board
MODEL: LC260WX2-SLB2
Unlock of Connector and
sperate the Wire Connector(2pin).
Separate the FFC(11pin) .
Separate the Inverter.
Attach the Cover Shield and
Assemble the Screw(3EA).
Assemble the Wire Connector(2pin).
Replace of Inverter and
Assemble the FFC(11pin).
H_16890_030.eps
230507
Prepare the LCM. Separate the Screw(3EA) Separate the Cover Shield
To Next Page
