Mechanical Instructions
EN 13LCD LPL 2K7 4.
4.4.2 Inverter Board

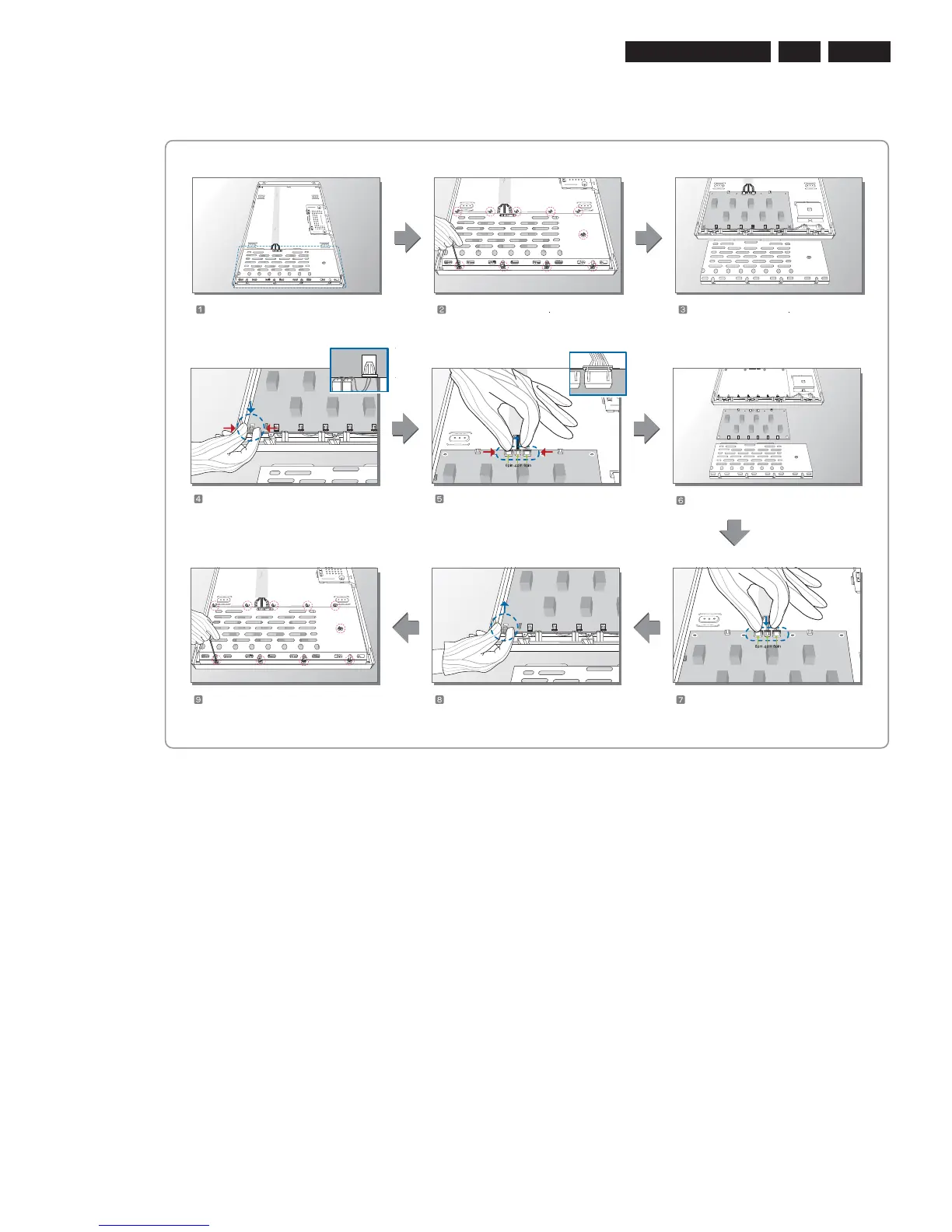

Figure 4-10 Replacement instructions Inverter board
MODEL: LC320WX2-SL01
Unlock of Connector and
sperate the Wire Connector(2pin).
Separate the
FFC<6pin(2ea), 4Ppin> 4EA.
Separate the Inverter.
Attach the Cover Shield and
Assemble the Screw(10EA).
Assemble the Wire Connector(2pin). Replace of Inverter and
Assemble the
FFC<6pin(2ea), 4Ppin> 4EA.
H_16890_023.eps
230507
Prepare the LCM. Separate the Screw(10EA)
Separate the Cover Shield
