3.4 WINDOW REQUIREMENTS
1. These instructions are for a horizontal sliding or a
casement window.
2. The electrical outlet must be within reach of the
power cord.
For installation in a casement window, the window
frame assembly and the side of the building must be
adequate to support the weight of the air conditioner.

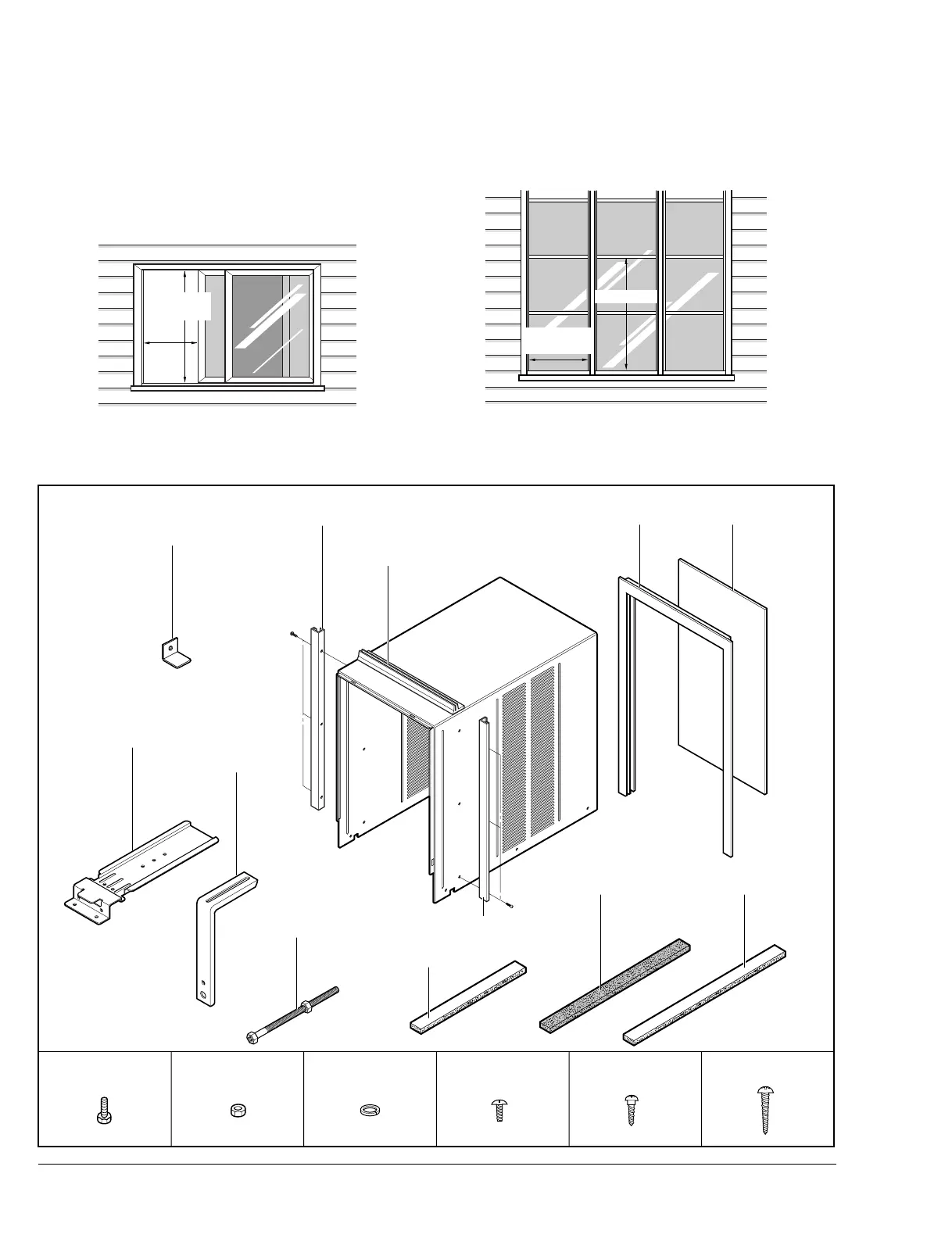

3.5 INSTALLATION KITS CONTENTS
21" min.
40
1
/2" max.
15
1
/2"
min.
Horizontal sliding window
21
1
/2" min.
15
1
/2" min.
16
1
/2" max.
Casement window
Nut (2) Washer (2) Type A (9)
Type B (3) Type C (8)
Bolt (2)
CurtainWindow Locking
Bracket
Side Guide
Support Bracket
Leveling
bolt & nut
Bracket
Side Guide
Upper Guide
Curtain Frame
Side Guide SealFoam Seal Strip
Window Track Seal
