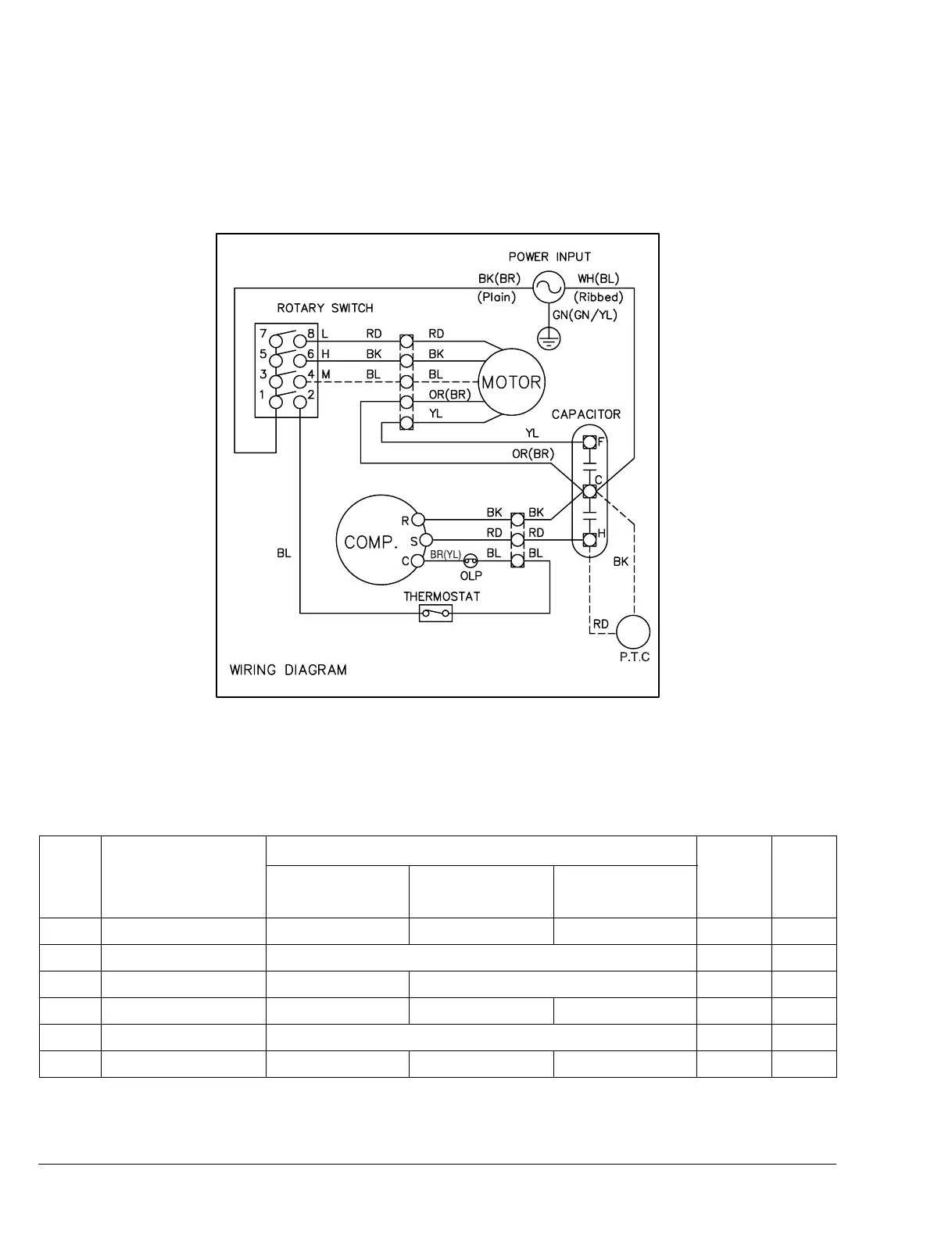

5. SCHEMATIC DIAGRAM
5.1 CIRCUIT DIAGRAM
■ MODEL : LC6000, LC1000, LC1200, LEA0610ACL, LEA1010ACL, LEA1210ACL, HBLG1000C
LC6000
LEA0610ACL
LC1000
LEA1010ACL
HBLG1000C
LC1200
LEA1210ACL
PART NO.
1 POWER CORD 6411A20011L 6411A20011N 6411A20011P 1 S
2 ROTARY SWITCH 2H00598E 1 S
3 FAN MOTOR 4681A20069B 4681A20069C 1 S
4 CAPACITOR 6210AR2359V 6120AR2194K 0CZZA20001N 1 S
5 THERMOSTAT 2H01109M 1 S
6 COMPRESSOR 2520UAMC2BA 2520UKAC2DA 2520UKGC2CA 1S
LOCATION
NO.
DESCRIPTION
RE-
MARKS
Q'TY
PER SET
S: Service Parts
N: Non Service Parts
