3. DISASSEMBLY
3-1 REMOVING AND REPLACING REFRIGERATOR
To remove and replace the refrigerator door:
CAUTION: Before you begin, remove food and
bins from the doors.
WARNING
Explosion Hazard
Disconnect electrical supply to the refrigerator before
installing. Failure to do so could result in death or
serious injury.
Do not put hands or feet or other objects into the air
vents, base grille, or bottom of the refrigerator.
You may be injured or receive an electrical shock.
Be careful when you work with the hinge, base grille,
and stopper. You may be injured.

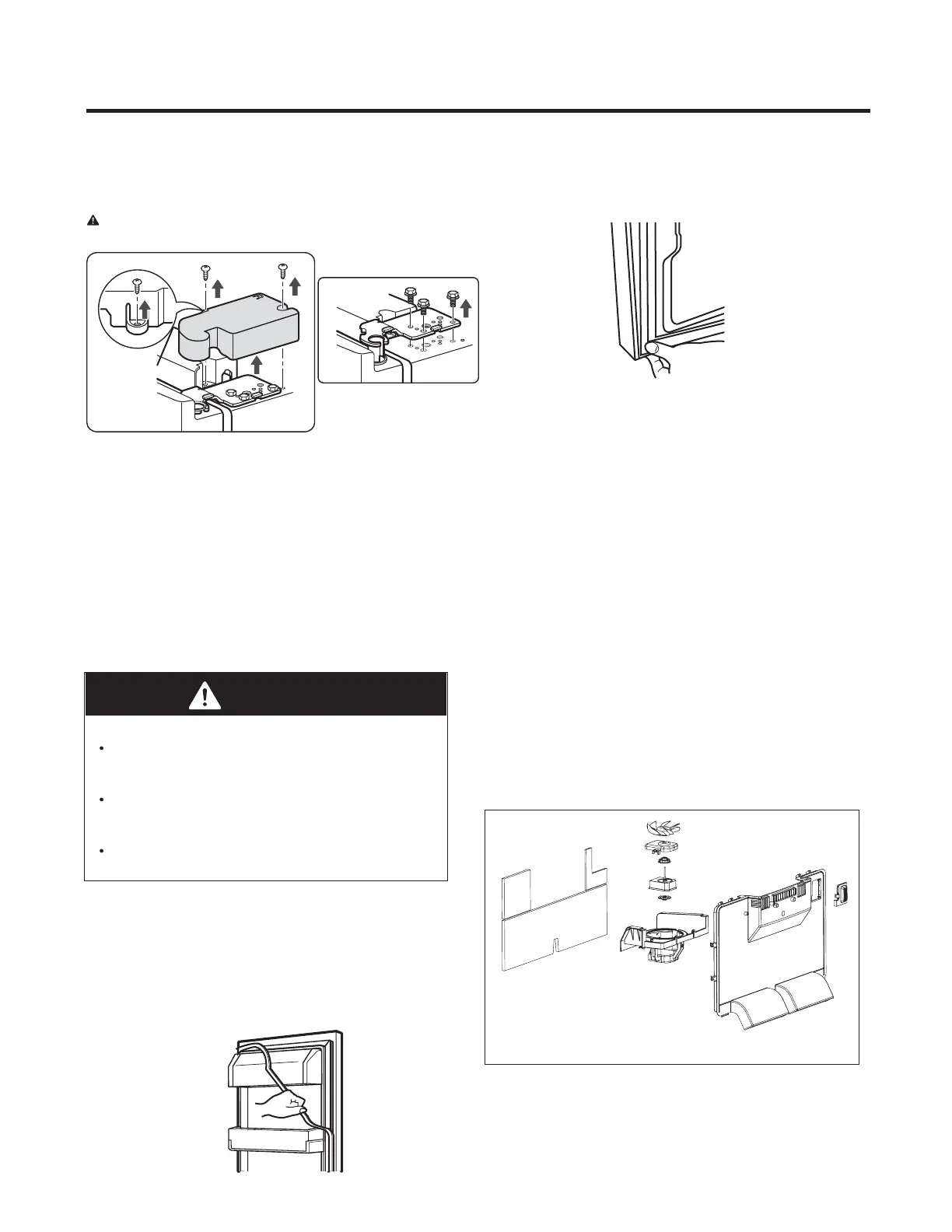

• Open the door. Remove the top hinge cover screw (1) and lift
up the cover(2).
• Remove the cover.
• Using 10mm or 13/32-inch socket wrench, remove the 3 bolts
and lift off the Top Hinge(3). Set parts aside.
: When removing the bolts, be careful that the
door does not fall forward.
• Lift the door from the middle hinge pin and remove the door.
• Place the door, inside facing up, on a non-scratching surface.
• Replace in the reverse order.
IMPORTANT
1. Remove gasket
Pull gasket free from gasket channel on the four
remaining sides of door.
3-2 DOOR
●
Door Gasket Removal
●
Door Gasket Replacement
1. Insert gasket into channel
Press gasket into channels on the four remaining
sides of door.
DOOR
(1)
(1)
(2)
5
3-3 DOOR ALIGNMENT
3-4 FAN AND FAN MOTOR(EVAPORATOR)
If the space between your doors is uneven, follow the
instructions below to align the doors.
Remove the top hinge cover screws. Lift the hook located at
the bottom of the front side of the cover with a flat-head
screwdriver. Loosen the Top Hinge Bolts using a 10mm or
13/32-in. Socket wrench or open-end wrench. Have someone
hold the refrigerator door so that the space between the two
door is even, and tighten the top hinge bolts.
Replace the Top Hinge Cover.
1. Remove the freezer drawer, (If your refrigerator has an
icemaker, remove the icemaker first).
2. Remove the grille by pulling the grille forward.
3. Remove the Fan Motor assembly by loosening 3 screws
and disassembling the shroud.
4. Pull out the fan and separate the Fan Motor bracket.
