INSTALLATION INSTRUCTIONS
1) Light all surface burners.
2) Turn the knob on the burner being adjusted to “LO”.
3) Remove knob.
4) Insert a small, flat bladed screwdriver into the valve
shaft as shown in Fig. 1.
On right front valve for model LDG3019ST there is a
secondary adjustment for the low flame for the outer
burners.
Insert a small, flat blade screwdriver into the hole
next to the valve stem to adjust the outer flame as
shown in Fig. 2.
Turn the adjustment screw until the flame reaches
the desired size.
5) Replace the knob.
Note: Hold the valve shaft with one hand while turning
the screw for adjustment with the other.
6) Test the flame stability.
Test 1: Turn the knob from “HI” to “LO” quickly. If the
flame goes out, increase the flame size and test again.
Test 2: With the burner on a “LO” setting, open and
close the oven door quickly. If the flame is extinguished
by the air currents created by the door movement,
increase the flame height and test again.
7) Repeat steps 1-6 for each surface burner.
7. ADJUST THE SURFACE BURNER TO THE LOW
FLAME(SIMMER) SETTING.

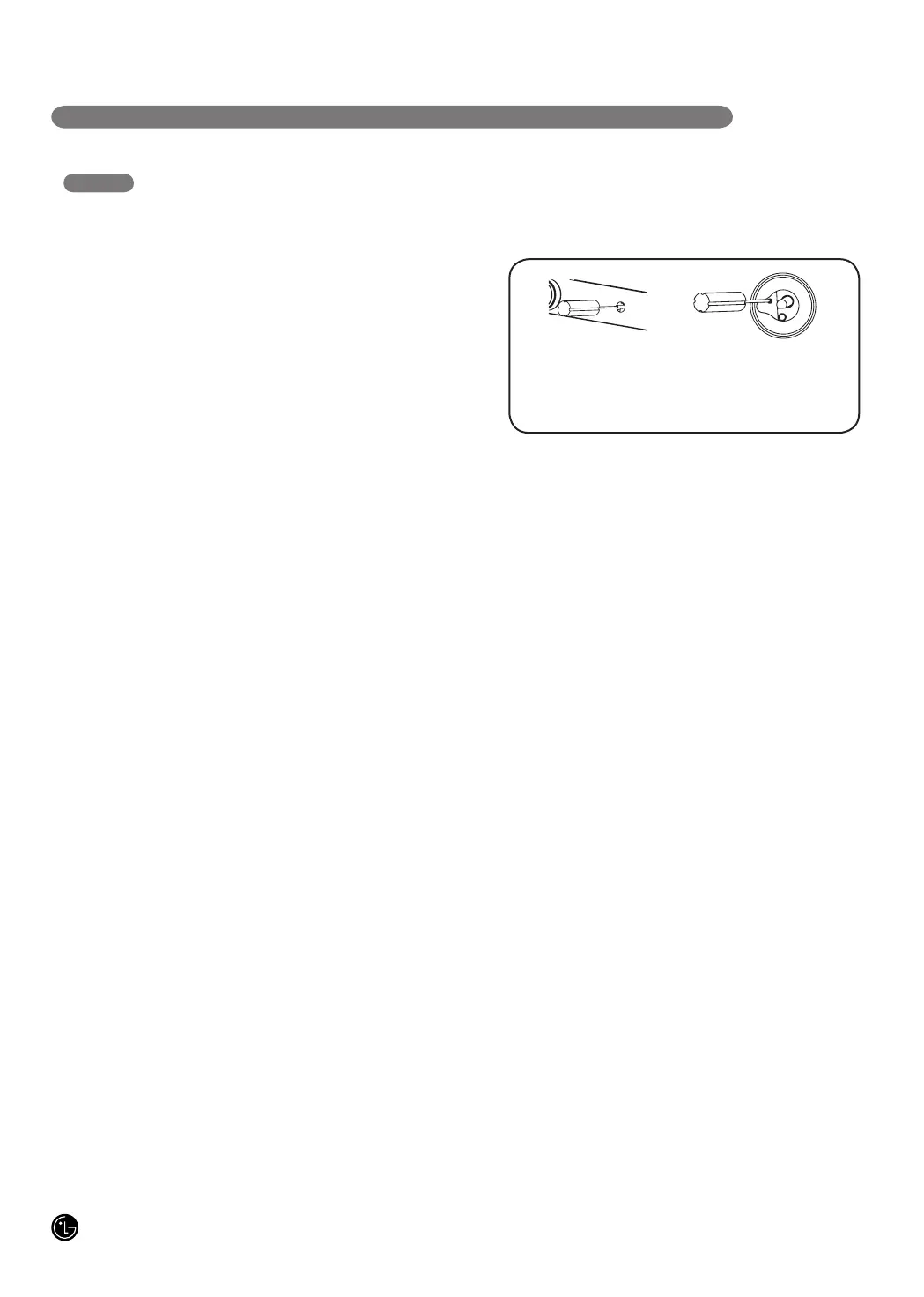

Center adjustment screw
Fig. 1
Adjustment screw next
to the valve shaft
Fig. 2
