6
INSTALLATION INSTRUCTIONS
Provide proper clearances between the range and
adjacent combustible surfaces. These dimensions must
be met for safe use of your range. The location of the
electrical outlet and pipe opening (see “GAS PIPE AND
ELECTRICAL OUTLET LOCATIONS”) may be adjusted to
meet specific requirements.
The range may be placed with 0” clearance (flush) at the
back wall.

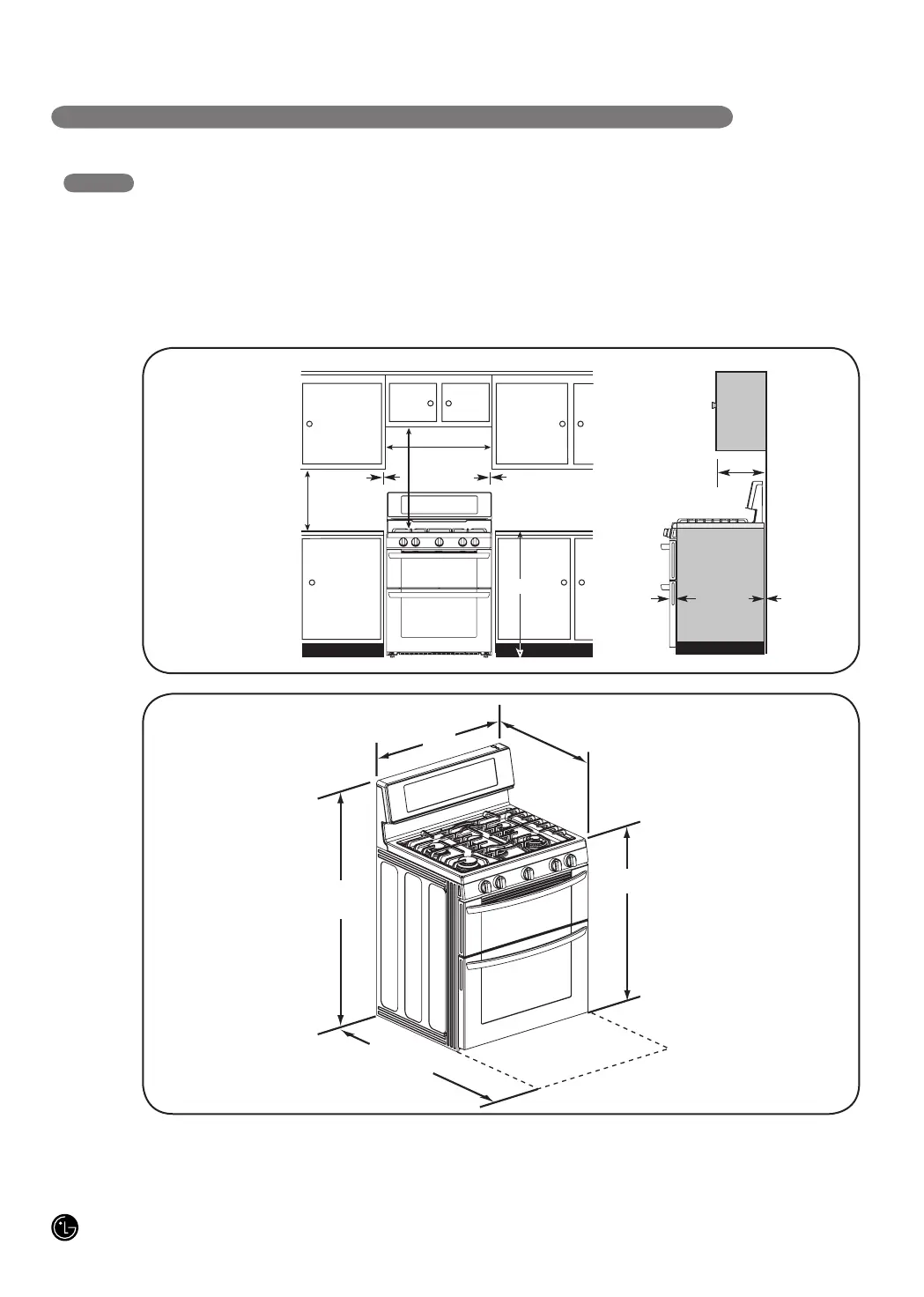

DIMENSIONS AND CLEARANCES
DIMENSIONS
Height
Depth with door open.
Depth with door closed (includes door handle)
INSTALLATION
CLEARANCES
Minimum to
cabinets on
either side
of the range
18”
5”
30”
30”
5”
36”
1/4”
13”
0”
Minimum
clearance to
left wall
Minimum clearance to
right wall
Front edge of
the range side
panel forward
from cabinet
To cabinets
below cooktop
and at the
range back
Maximum
depth for
cabinets above
coutertops
Minimum
30”
28
3
/
4
47
7
/
16
43
5
/
32
36” ± 1/4
