3-14

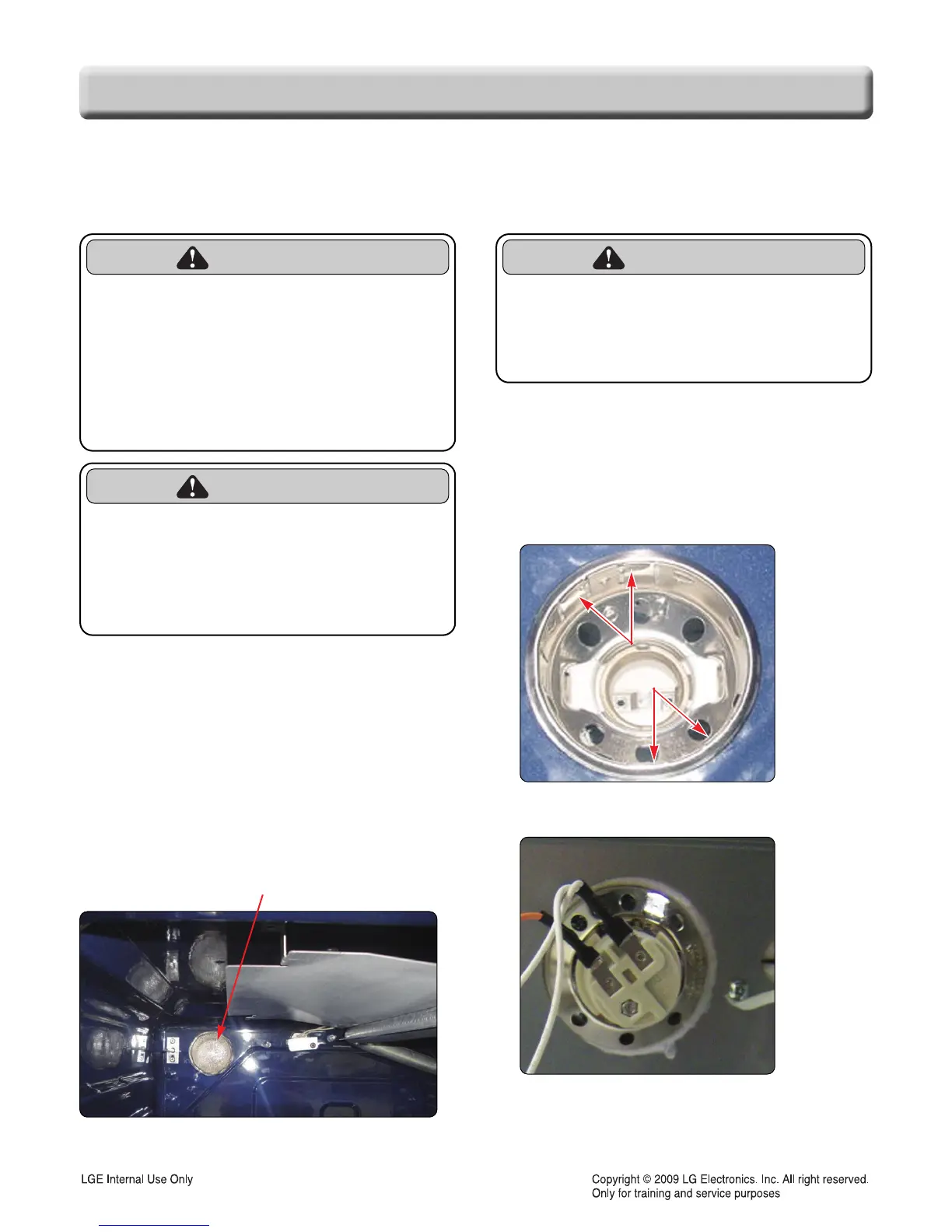

COMPONENT ACCESS
REMOVING THE OVEN LIGHT & SOCKET ASSEMBL
REMOVING THE OVEN LIGHT & SOCKET ASSEMBL
Y
Y
(For both the Upper & Lower oven)
(For both the Upper & Lower oven)
To replace:
1. Turn off the electrical supply and gas supply
going to the range.
2. Turn the glass bulb cover in the back of the oven
counterclockwise to remove.
3. Turn bulb counterclockwise to remove from
socket.
4. Replace bulb and bulb cover by turning
clockwise.
5. Use a screwdriver and bend the clips on the oven
light socket away from the edges of the liner
hole, and pull the socket out of the liner.
NOTE: If it is too difficult to remove the socket
from the front of the oven, you will have to push
the socket out from the back of the unit.
6. Disconnect the wires from the socket terminals.
Glass cover & Bulb
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
Socket Clips
<Viewed From Rear Panel>
CAUTION
• Be careful not to scratch or chip the
oven liner paint when you remove
the oven light socket in the next
step.
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• Be careful when you work on the
gas range handling the sheet metal
part.
- Sharp edge may be present and you can cut
yourself.
