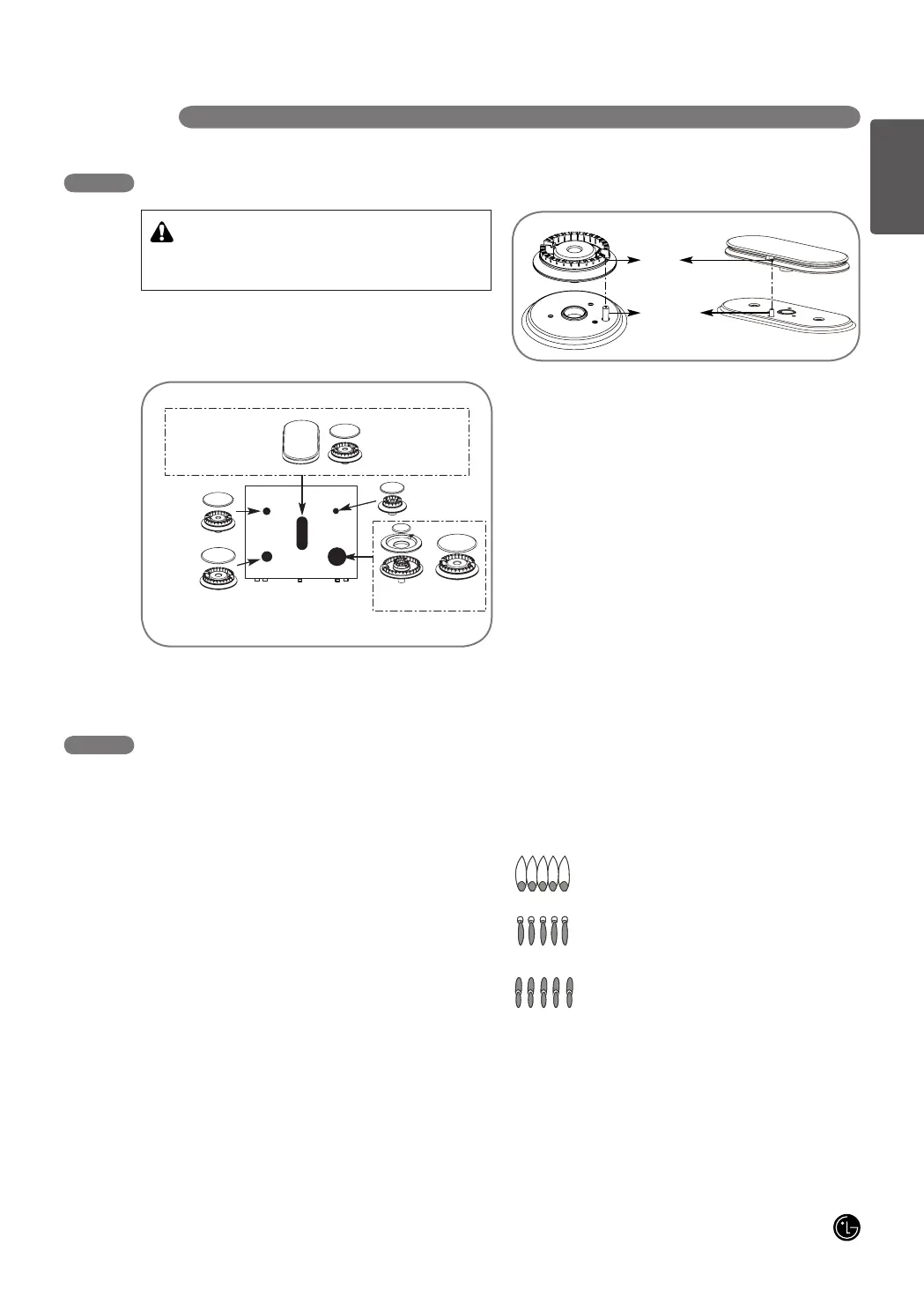

INSTALLATION INSTRUCTIONS
CAUTION
Place the burner caps and heads on the cooktop. Make
sure that the caps and heads are placed in the correct
locations. There is one small, one medium, one large and
one extra large burner head and cap.
Make sure the hole in the burner head is positioned over
the electrode.
5. ASSEMBLE THE SURFACE BURNERS
ELECTRIC IGNITION
Select a top burner knob and simultaneously push in and
turn to the “LITE” position. You will hear a clicking sound
indicating proper operation of the spark module.
Once the air has been purged from the supply lines,
burner should ignite within 4 seconds. After burner ignites,
rotate knob out of the “LITE” position. Try each burner in
succession until all burners have been checked.
QUALITY OF FLAMES
The combustion quality of burner flames needs to be
confirmed visually.
A Yellow flames—Call for service
B Yellow tips on outer cones—
It is normal for LP gas
C Soft blue flames—
It is normal for natural gas
With LP gas, some yellow tipping on outer cones is
normal.
6. CHECK IGNITION OF SURFACE BURNERS
Hole
Electrode
DO NOT Operate the burners without all parts in
place.
Center Burner
Medium
burner
head and
cap
Large burner
head and cap
(on some models)
Oval (Center) Burner
Head/Cap Assembly
(on some models)
Medium burner
head and cap
(on some
models)
(on some
models)
Front of range
Small burner
head and cap
Extra large burner
head and cap
