- 69 -

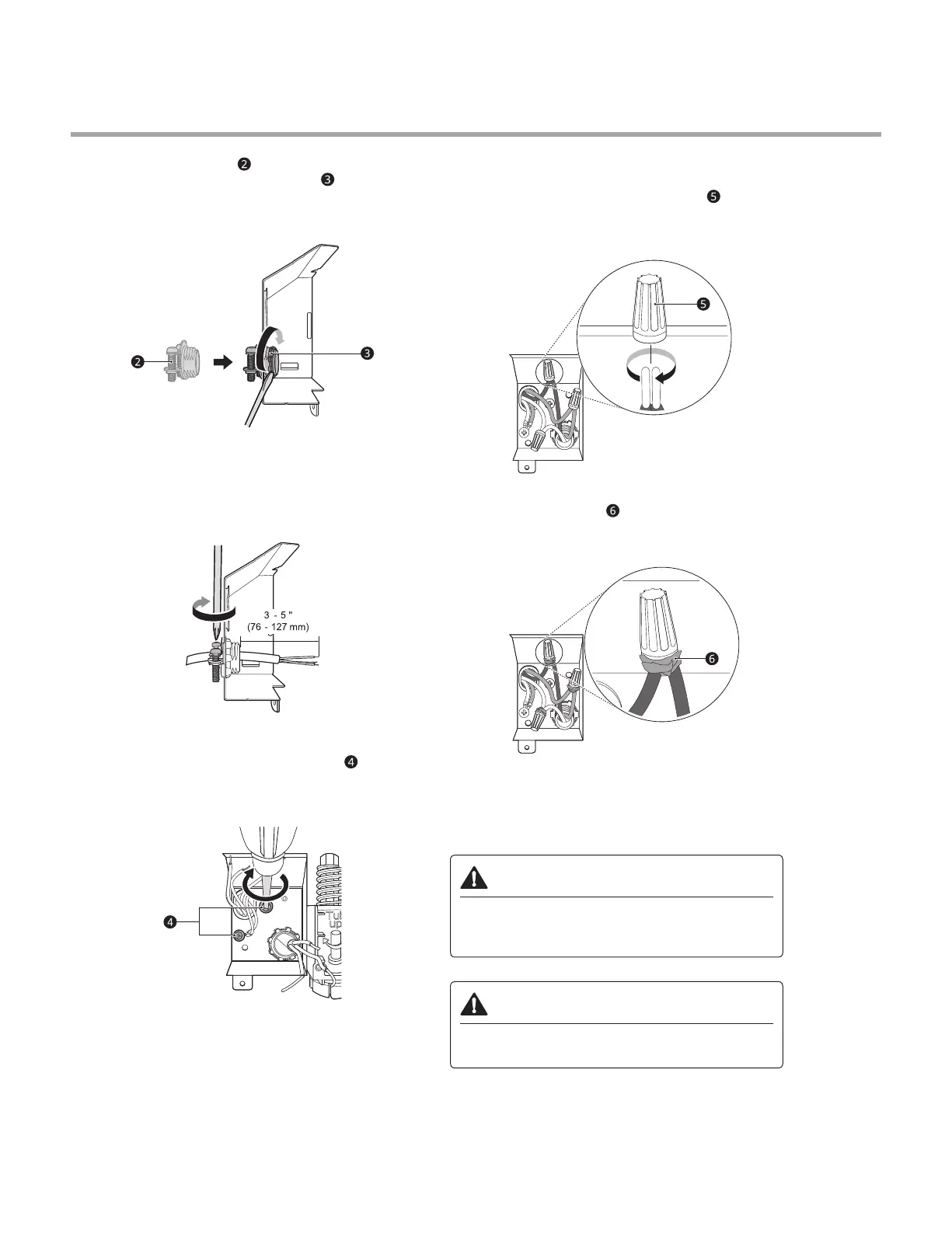

5
Insert a strain relief through the hole in the
junction box. Tighten the ring nut to secure it
in place.
6
Insert the electrical cable through the hole in
the strain relief. Tighten 2 screws to secure the
cable.
7
Pull the existing wires through the openings
in the junction box. Tighten 2 screws to
reassemble the junction box in the appliance.
8
Pair the white, black, and green wires to the
matching colored wires from the dishwasher.
Then twist on the provided wire nuts tightly to
connect the corresponding wires.
9
Wrap electrical tape around each connection.
10
Fold the connected wires back into the junction
box and screw on the junction box cover.
WARNING
• Verify that the black wire is hot (120 V). If not,
or if you are unsure of the power supply, have it
checked by a licensed electrician.
CAUTION
• Do not leave stripped wire exposed. Trim
stripped wire to fit completely inside wire nuts.
