LG LFC22760 Series - REFRIGERATOR INSTALLATION; Removing Refrigerator Doors (No Water Dispenser)

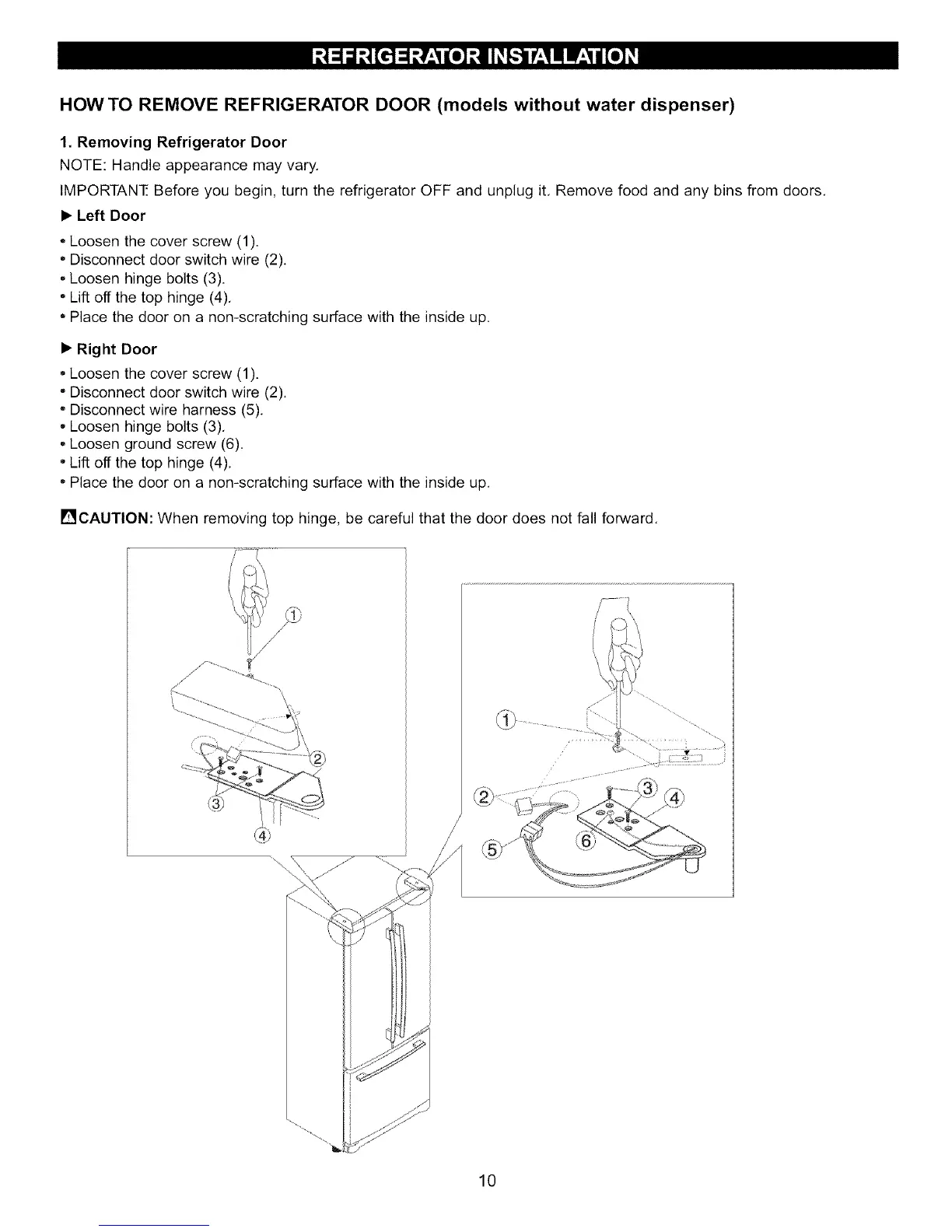

HOW TO REMOVE REFRIGERATOR DOOR (models without water dispenser)
1. Removing Refrigerator Door
NOTE: Handle appearance may vary.
IMPORTANT." Before you begin, turn the refrigerator OFF and unplug it, Remove food and any bins from doors.
• Left Door
, Loosen the cover screw (1).
• Disconnect door switch wire (2).
• Loosen hinge bolts (3).
• Lift off the top hinge (4),
• Place the door on a non-scratching surface with the inside up.
• Right Door
• Loosen the cover screw (1).
= Disconnect door switch wire (2).
, Disconnect wire harness (5),
• Loosen hinge bolts (3),
• Loosen ground screw (6),
• Lift off the top hinge (4),
• Place the door on a non-scratching surface with the inside up.
[]CAUTION: When removing top hinge, be careful that the door does not fall forward,
--
/
10
