LG LFC22760 Series - REFRIGERATOR INSTALLATION; Replacing Refrigerator Doors

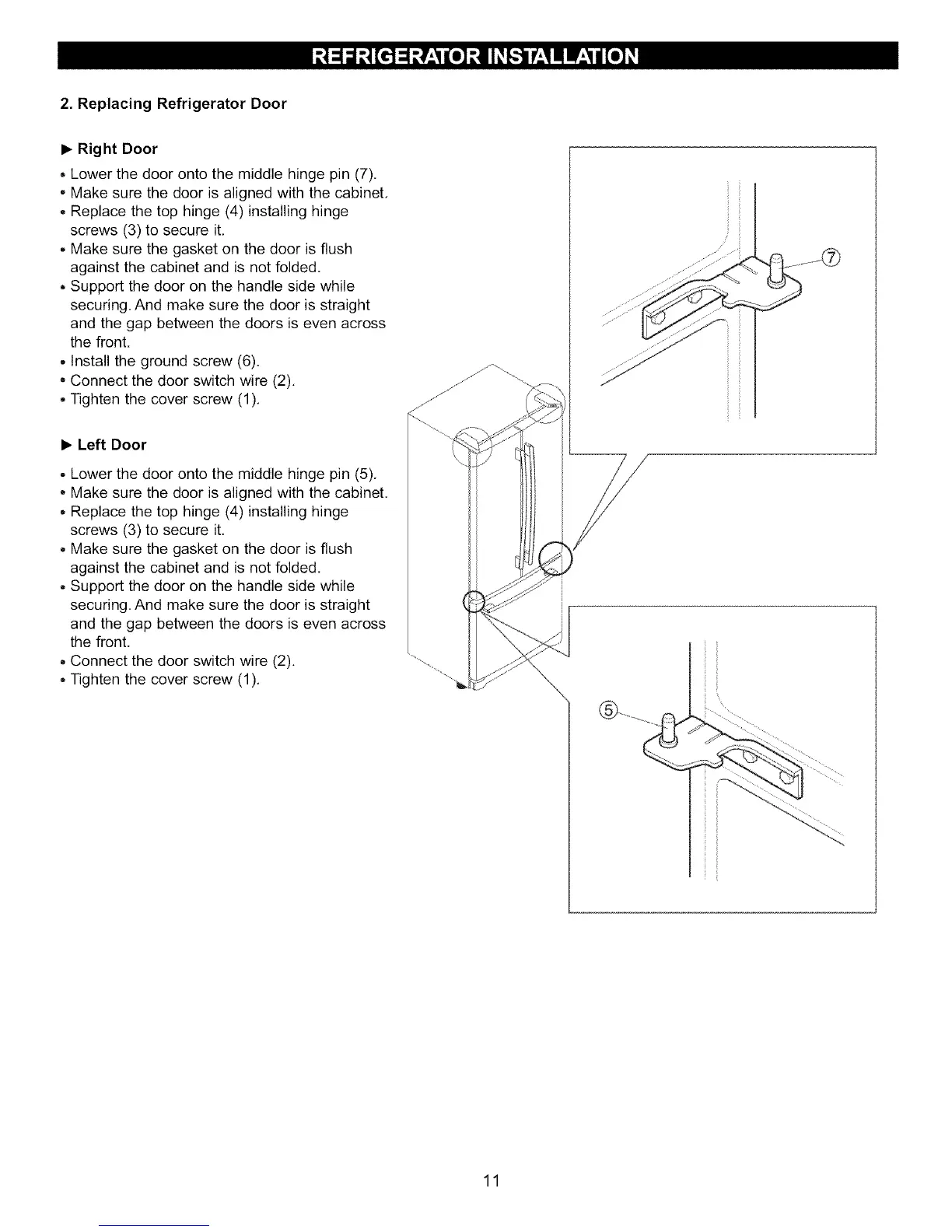

2. Replacing Refrigerator Door
• Right Door
• Lower the door onto the middle hinge pin (7).
• Make sure the door is aligned with the cabinet,
, Replace the top hinge (4) installing hinge
screws (3) to secure it,
• Make sure the gasket on the door is flush
against the cabinet and is not folded,
• Support the door on the handle side while
securing. And make sure the door is straight
and the gap between the doors is even across
the front.
. Install the ground screw (6).
, Connect the door switch wire (2),
• Tighten the cover screw (1),
• Left Door
• Lower the door onto the middle hinge pin (5),
• Make sure the door is aligned with the cabinet,
• Replace the top hinge (4) installing hinge
screws (3) to secure it,
• Make sure the gasket on the door is flush
against the cabinet and is not folded.
• Support the door on the handle side while
securing, And make sure the door is straight
and the gap between the doors is even across
the front,
• Connect the door switch wire (2).
• Tighten the cover screw (1),
