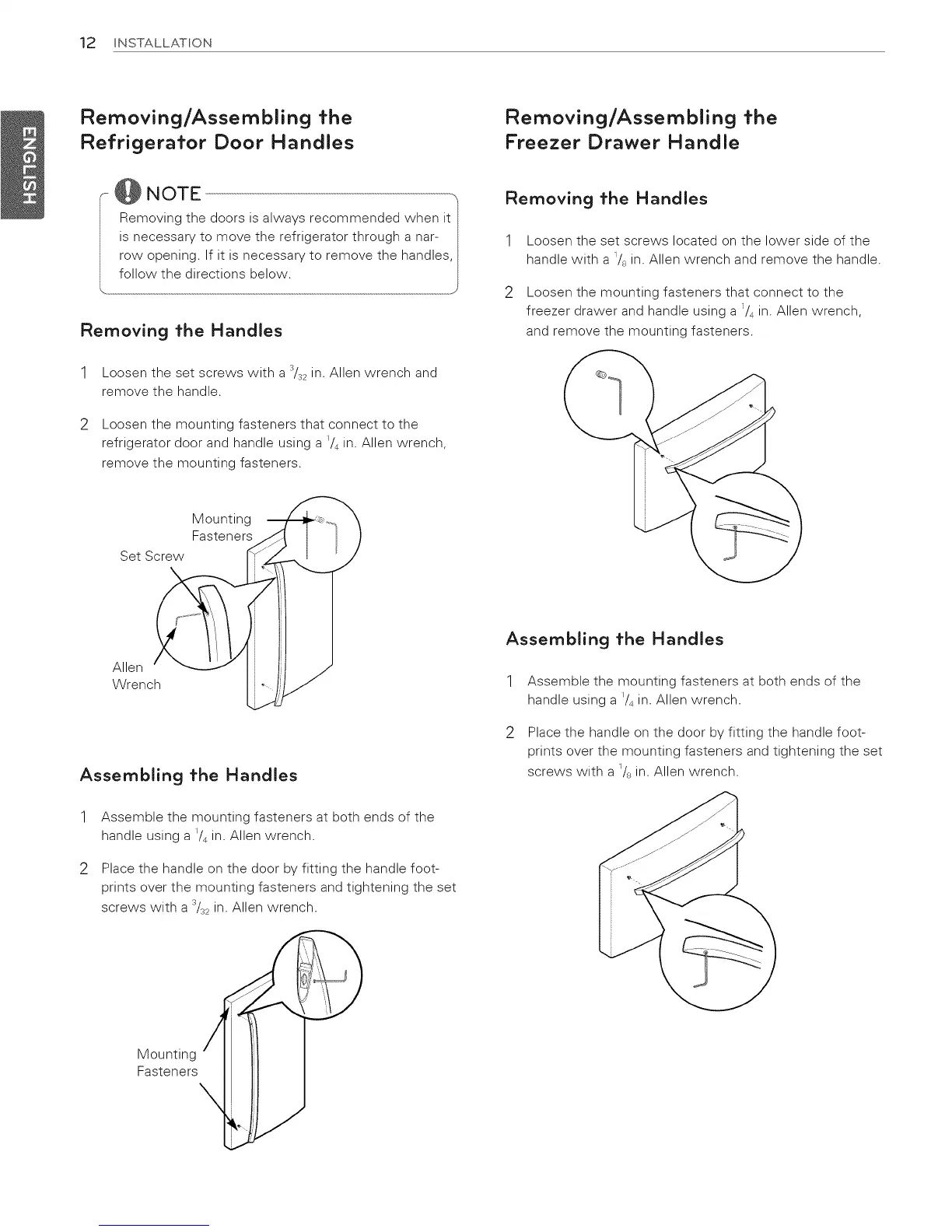

12 iNSTALLATiON
Removing/Assembling fhe
Refrigerafor Door Handles
¢--@ NOTE -]
/ Removing the doors is always recommended when it I
is necessary to move the refrigerator through a nar-
J row opening. If it is necessary to remove the handles, I
Removing fhe Handles
1
2
Loosen the set screws with a 3/3_in. Allen wrench and
remove the handle.
Loosen the mounting fasteners that connect to the
refrigerator door and handle using a _/4in. Allen wrench,
remove the mounting fasteners.
Mounting
SetS Fastener_ I _ )
Allen" I l:l J
Wrench
Assembling 1"he Handles
2
Assemble the mounting fasteners at both ends of the
handle using a _/4in. Allen wrench.
Place the handle on the door by fitting the handle foot-
prints over the mounting fasteners and tightening the set
screws with a 3/32in. Allen wrench.
Removing/Assembling fhe
Freezer Drawer Handle
Removing 1"he Handles
Loosen the set screws located on the lower side of the
handle with a 1/8in. Allen wrench and remove the handle.
Loosen the mounting fasteners that connect to the
freezer drawer and handle using a 1/4in. Allen wrench,
and remove the mounting fasteners.
Assembling 1"he Handles
2
Assemble the mounting fasteners at both ends of the
handle using a _/4in. Allen wrench.
Place the handle on the door by fitting the handle foot-
prints over the mounting fasteners and tightening the set
screws with a 1/8in. Allen wrench.
Mounting
Fasteners
\
To Next Page
