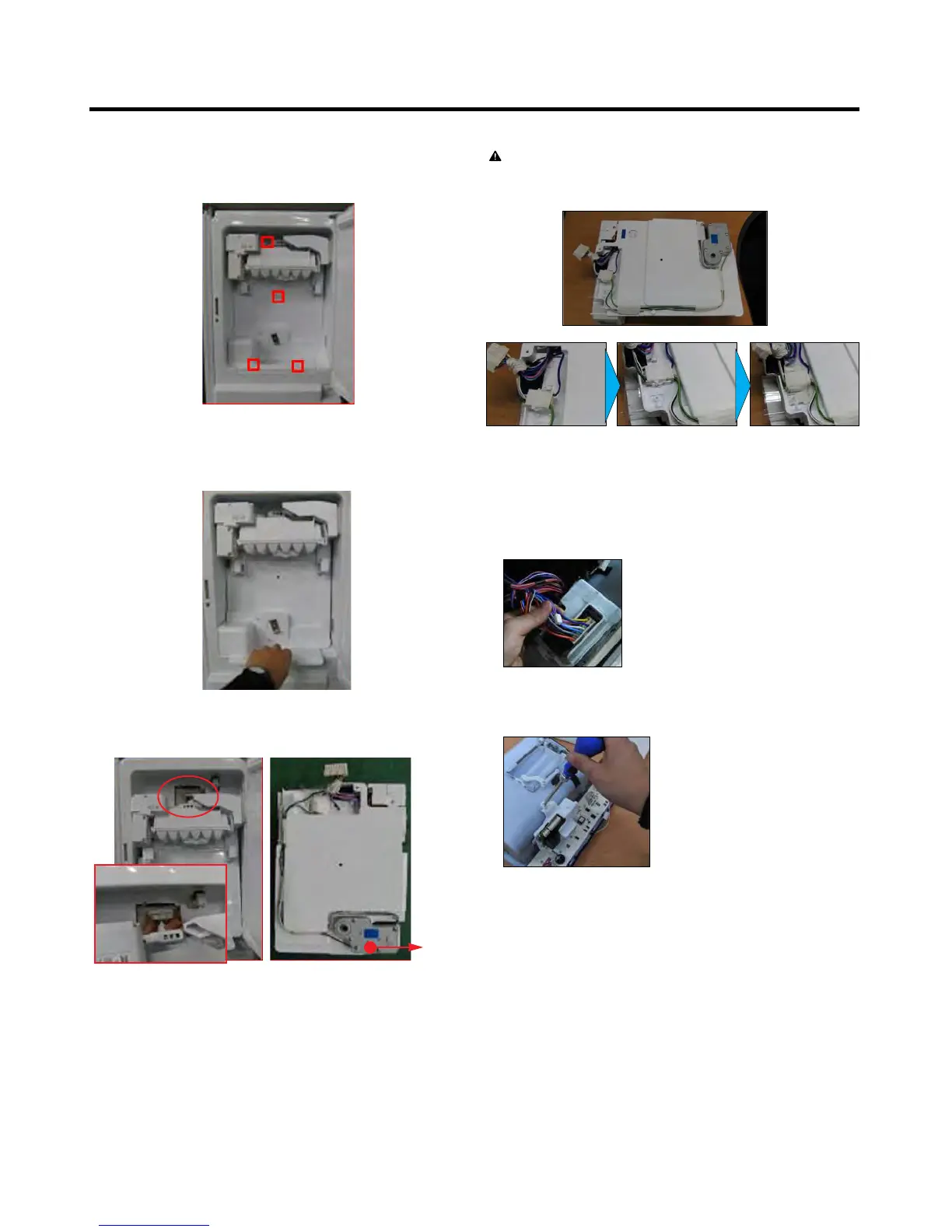

3-13 ICEMAKER REPLACEMENT
1) Remove 4 screws as shown.
2) Grasp the bottom of motor cover assembly and pull
slowly.
3) Disconnect wire harness from wall of compartment.
In-door
motor
3-14 SUB PCB FOR WORKING DISPENSER
1) Disconnect the wire harness.
2) Remove 1 screw from PCB and replace with new PCB.
CAUTION: Make sure that the motor housing is taped to
the mold, if not positioned correctly the cover will not fit
properly.
