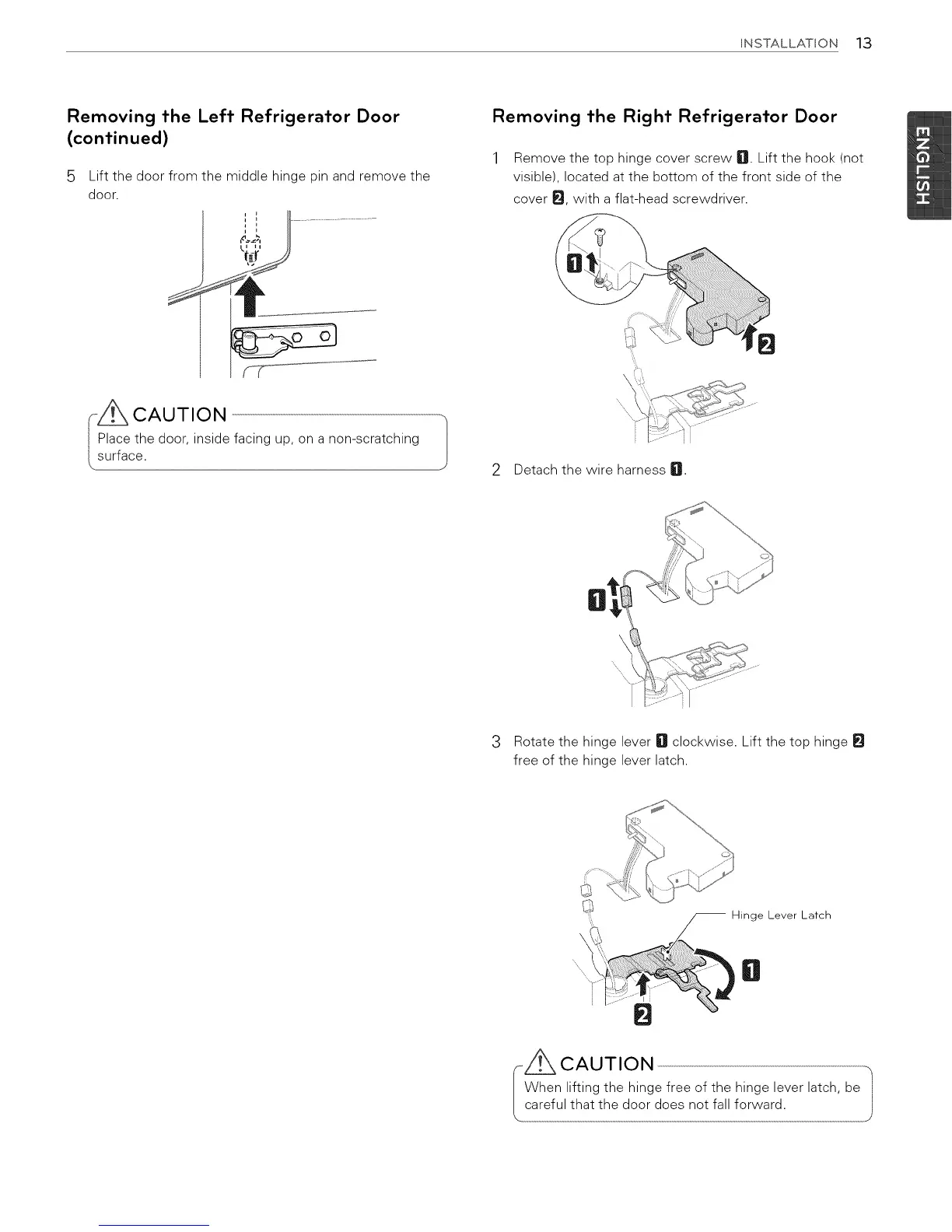

INSTALLATION 13
Removing the Left Refrigerator Door
(continued)
Lift the door from the middle hinge pin and remove the
door.
,,
CAUTION
Removing the Right Refrigerator Door
1 Remove the top hinge cover screw D. Lift the hook (not
visible), located at the bottom of the front side of the
cover _, with a flat-head screwdriver.
\
2 Detach the wire harness D.
3 Rotate the hinge lever _ clockwise. Lift the top hinge
free of the hinge lever latch.
Hinge Lever Latch
\
• D
\
_-Z_ CAUTION
When liftingthe hingefreeofthe hingeleverlatch,be
carefulthatthe door does notfallforward.
To Next Page
