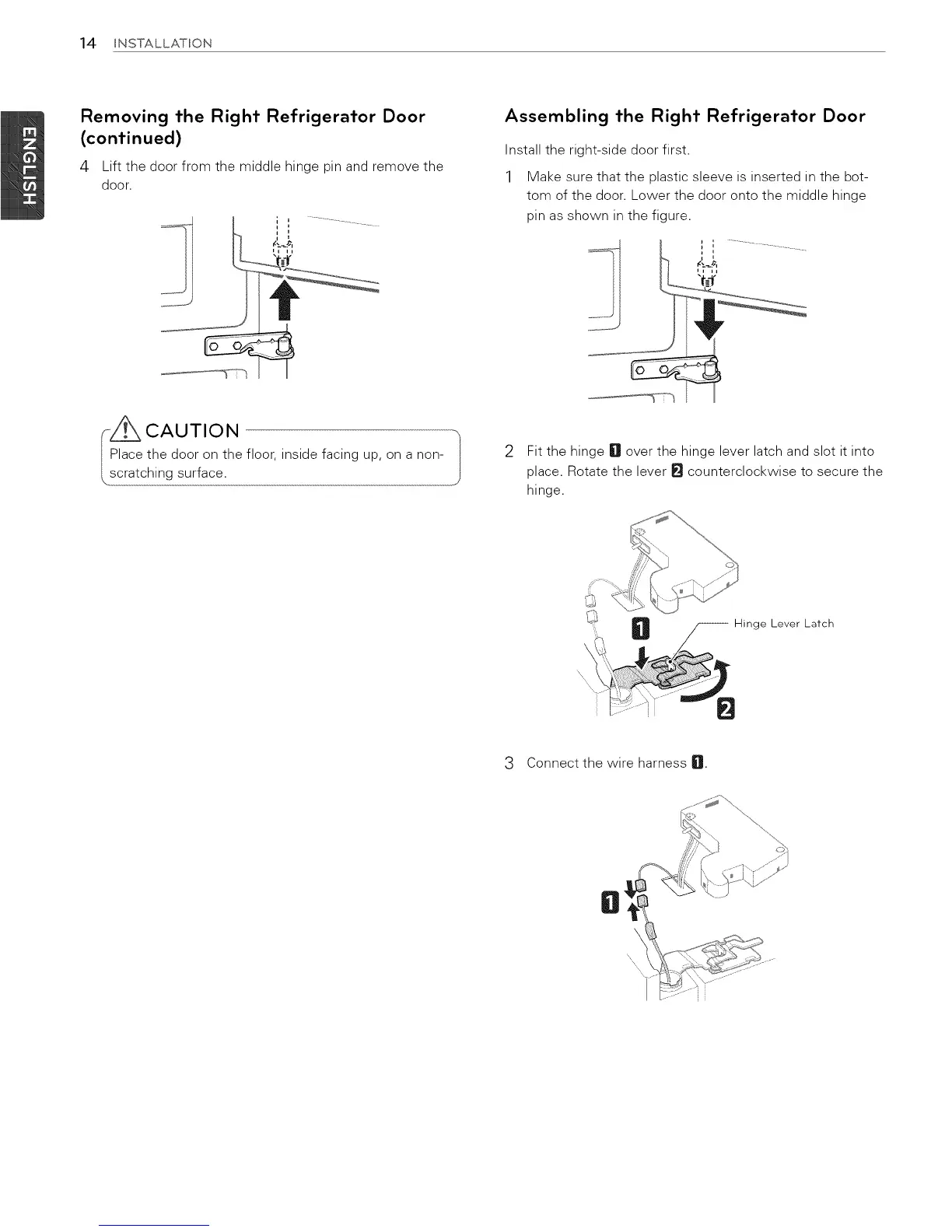

14 INSTALLATION
Removing the Right Refrigerator Door
(continued)
4 Lift the door from the middle hinge pin and remove the
door.
Assembling the Right Refrigerator Door
Install the right-side door first.
1 Make sure that the plastic sleeve is inserted in the bot-
tom of the door. Lower the door onto the middle hinge
pin as shown in the figure.
-Z_CAUTION
Place the door on the floor, inside facing up, on a non- |
scratching surface.
J
2 Fit the hinge D over the hinge lever latch and slot it into
place. Rotate the lever D counterclockwise to secure the
hinge.
\
D -- Hinge Lever Latch
[]
3 Connect the wire harness i[i.
D
To Next Page
