4.7 GPS/WIFI/BT RF components
4.7.1 GPS RF Components

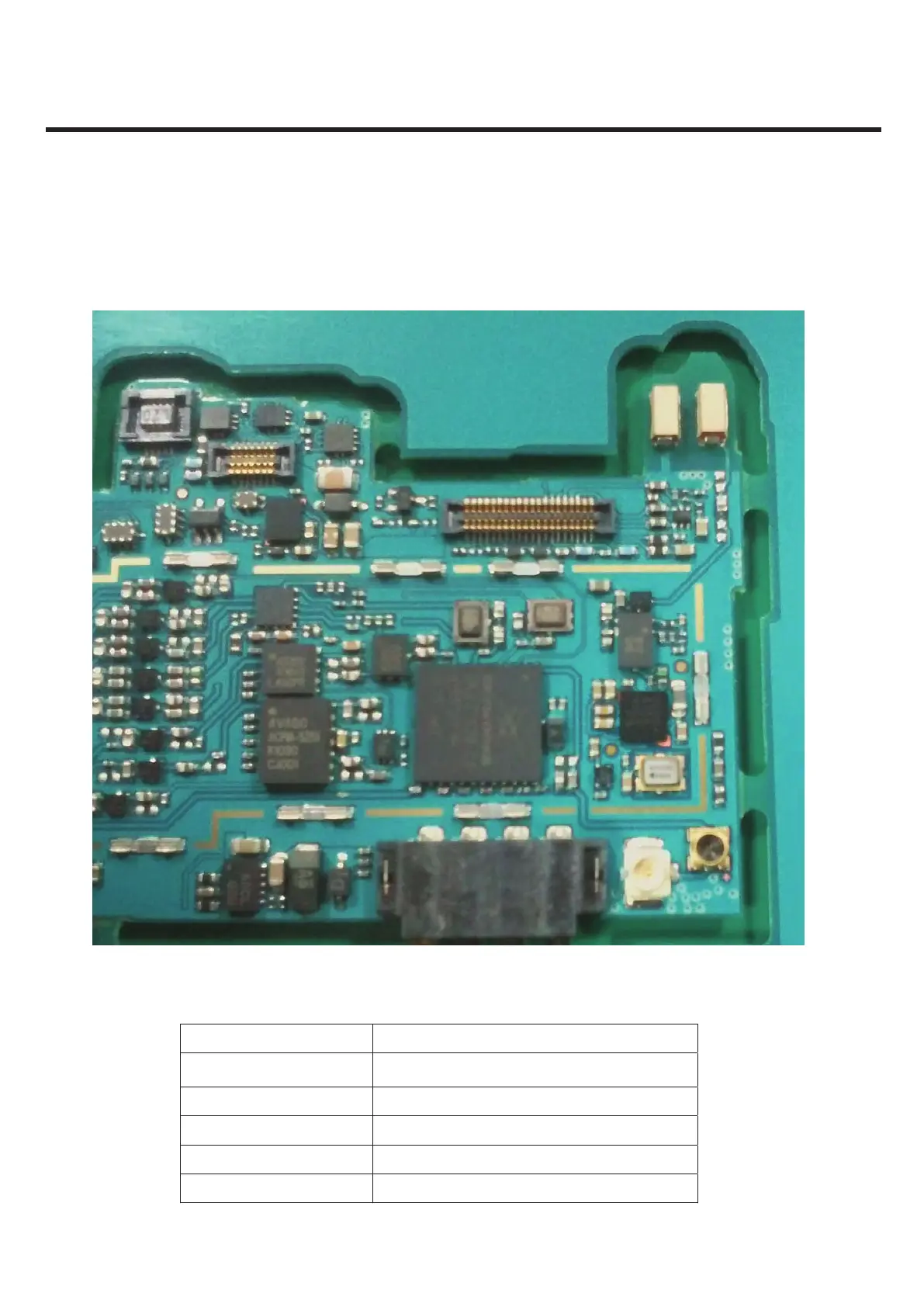

Figure. GPS RF Components on top side of the P970 bear board.
Reference Description
U801 GPS Chip (BCM4751)
U802 LNA Module (LNA + SAW)
FL801 SAW Filter (1575MHz)
X801 TCXO (26MHz)
U405 LDO (150mA)
U801
FL801
U802
X801
U405
