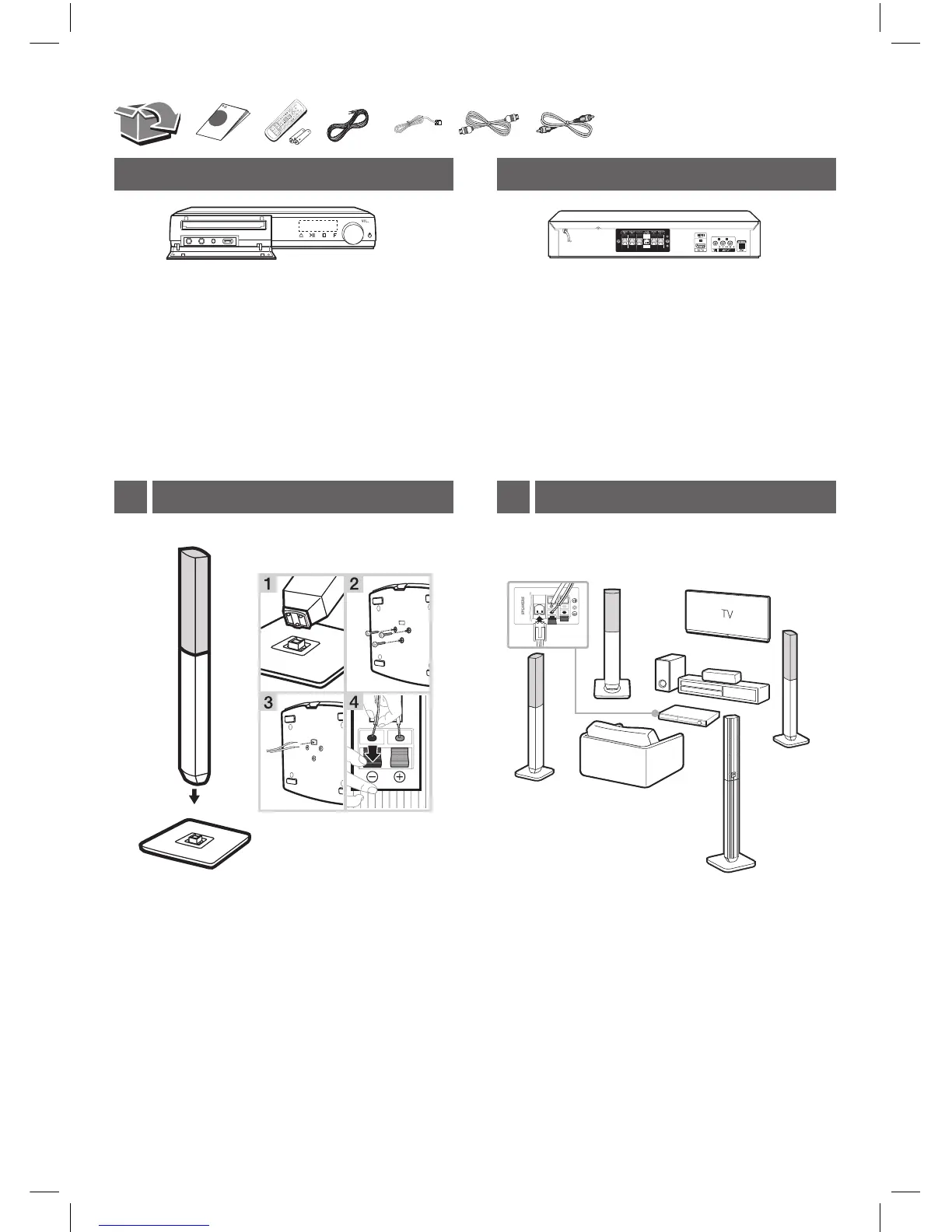

Front Panel Rear Panel
MIC 1/2···················· Connect a microphone.
PORT. IN ··············Connect to a Portable device.
USB Port····················Connect a USB device.
R··························Disc Tray Open / Close
T ·······················Starts / Pauses playback.
I ·································Stops playback.
F············· Changes the input source or function.
VOL. ······························Adjusts volume.
1 ·································Power On / Off
SPEAKERS ··················· Connect to speakers.
HDMI OUT TO TV··················· Connect to TV.
VIDEO OUT ························ Connect to TV.
AUX (L/R) INPUT······ Connect to analogue device.
ANTENNA FM ·········· Connect to radio antenna.
Speaker design and connection method may
be different according to models.
,
Speaker Connection2Speaker Assembling1
Front
(Right)
Front
(Left)
Center
Subwoofer
Unit
Surround
(Left)
Surround
(Right)
