LG LMC1575SB User Manual

5-25

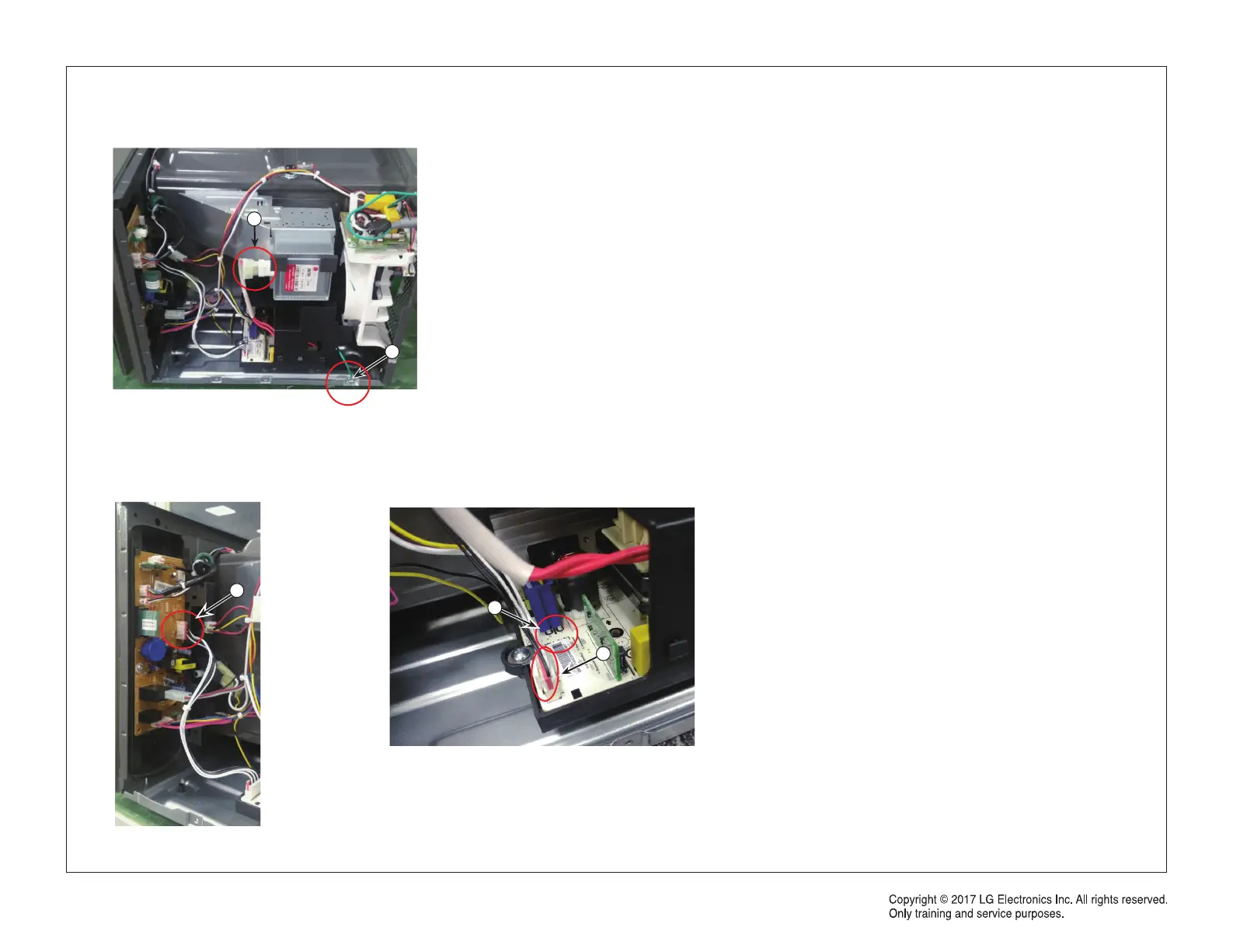

Inverter wiring check.
4
5
3
1
2
① High voltage wire
: IInverter supply high voltage
and current to Magnetron
though this wire
② Inverter earth wire
: If earth is loose or not fixed,
inverter work not correctly and
make current leakage.
Make sure earth wire fix
correctly after change inverter
PCB.
③, ⑤ Communication wire connector
: If this wire is not connect exactly,
it make F-11 Error code.
④ AC power connector
: If this wire is not connect exactly,
it make F-13,14 and 15 Error code.

LG LMC1575SB Specifications

General

Style	countertop
Total Capacity	1.5 cubic feet
Sensor Cooking	yes
Timer	yes
Microwave Power	1200 watts
Voltage	120 volts
Current	14 amperes

Weight and Dimensions

Depth	17 inches
Height	12.1 inches
Width	21.4 inches
Net Weight	26 pounds
