LG LMC1575SB - Specific PCB Component Testing; Inverter;SMPS PCB (F-11) Testing

5-26

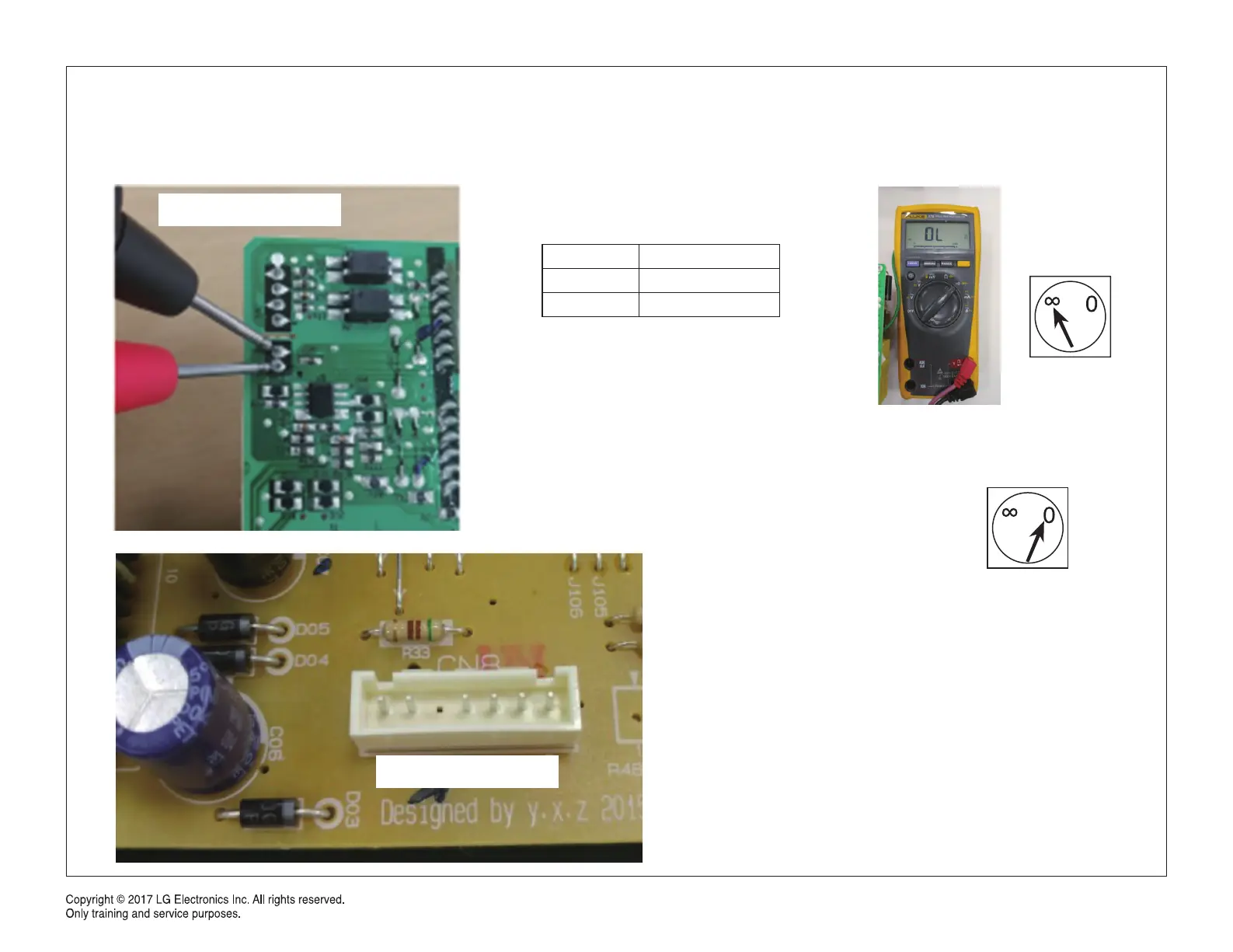

1. F-11 Inverter / SMPS PCB Check
※ Tester mode : Beep mode
Status Test result
normal Open (OL)
Abnormal Short (Beep)
• Check Connector pin (CN3, CN8)
Inverter : CN3 6-7 pin
Main : CN8 1-2 pin
Example : normal (Open)
Example : abnormal (Short)
LMC1575BD /00
LMC1575ST /00
LMC1575SW /00
LMC1575SB /00
