LG LMCN125HV Service Manual

2. Model Line Up
Part 1 General Information
- 6 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

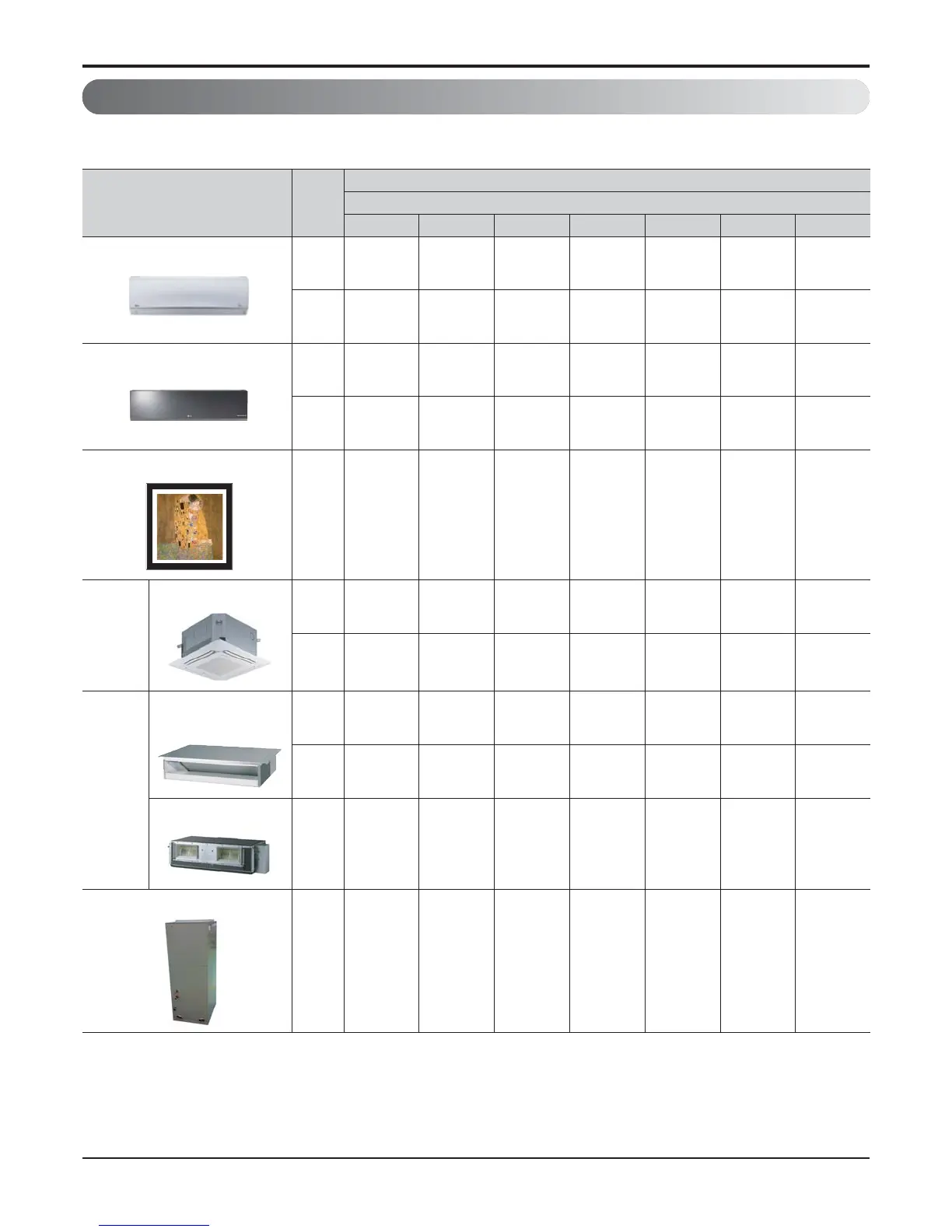

2.1 Indoor units
* Indicates color of panel – ART COOL : Gold(G), White Silver(H), Blue(B), Gallery(1)
ART COOL Mirror : Mirror(R), Silver(V), White(W)
Category Chassis
Model names
Capacity, kW(kBtu/h Class)
2.1(7) 2.6 (9) 3.5 (12) 4.2(15) 5.3 (18) 7.03 (24) 10.6 (36)
Wall mounted
SB
AMNW07GDBL1
[LMN077HVT]
AMNW09GDBL1
[LMN097HVT]
AMNW12GDBL1
[LMN127HVT]
AMNW15GDBL1
[LMN157HVT]
SC
AMNW18GDCL1
[LMN187HVT]
AMNW24GDCL1
[LMN247HVT]
ART COOL Mirror
SB
AMNW09GDBR1
[LMAN097HVT]
AMNW12GDBR1
[LMAN127HVT]
SC
AMNW18GDCR1
[LMAN187HVT]
ART COOL Gallery
SF
AMNW09GAF11
[LMAN097HVP]
AMNW12GAF11
[LMAN127HVP]
Ceiling
cassette
4-way
TR
AMNW07GTRA0
[LMCN077HV]
AMNW09GTRA0
[LMCN097HV]
AMNW12GTRA0
[LMCN125HV]
TQ
AMNW18GTQA0
[LMCN185HV]
Ceiling
concealed
duct
Low static pressure
(Slim)
L1
AMNW09GL1A0
[LMDN096HV]
L2
AMNW12GL2A0
[LMDN126HV]
AMNW18GL2A0
[LMDN186HV]
High Static pressure
BG
AMNW24GBGA0
[LMHN240HV]
AMNW36GBGA0
[LMHN360HV]
Vertical AHU
NJ
AMNW24GNJA0
[LMVN240HV]
AMNW36GNJA0
[LMVN360HV]

LG LMCN125HV Specifications

General

Cooling Capacity	12, 000 BTU/h
Energy Efficiency Ratio (EER)	11.0
Refrigerant	R410A
Power Supply	208-230V/60Hz/1Ph
Operating Temperature (Cooling)	18°C to 43°C
Operating Temperature (Heating)	5-75°F
Dimensions (Indoor Unit)	790 x 250 x 190 mm
Dimensions (Outdoor Unit)	700 x 500 x 240 mm
Weight (Indoor Unit)	19.8 lbs
