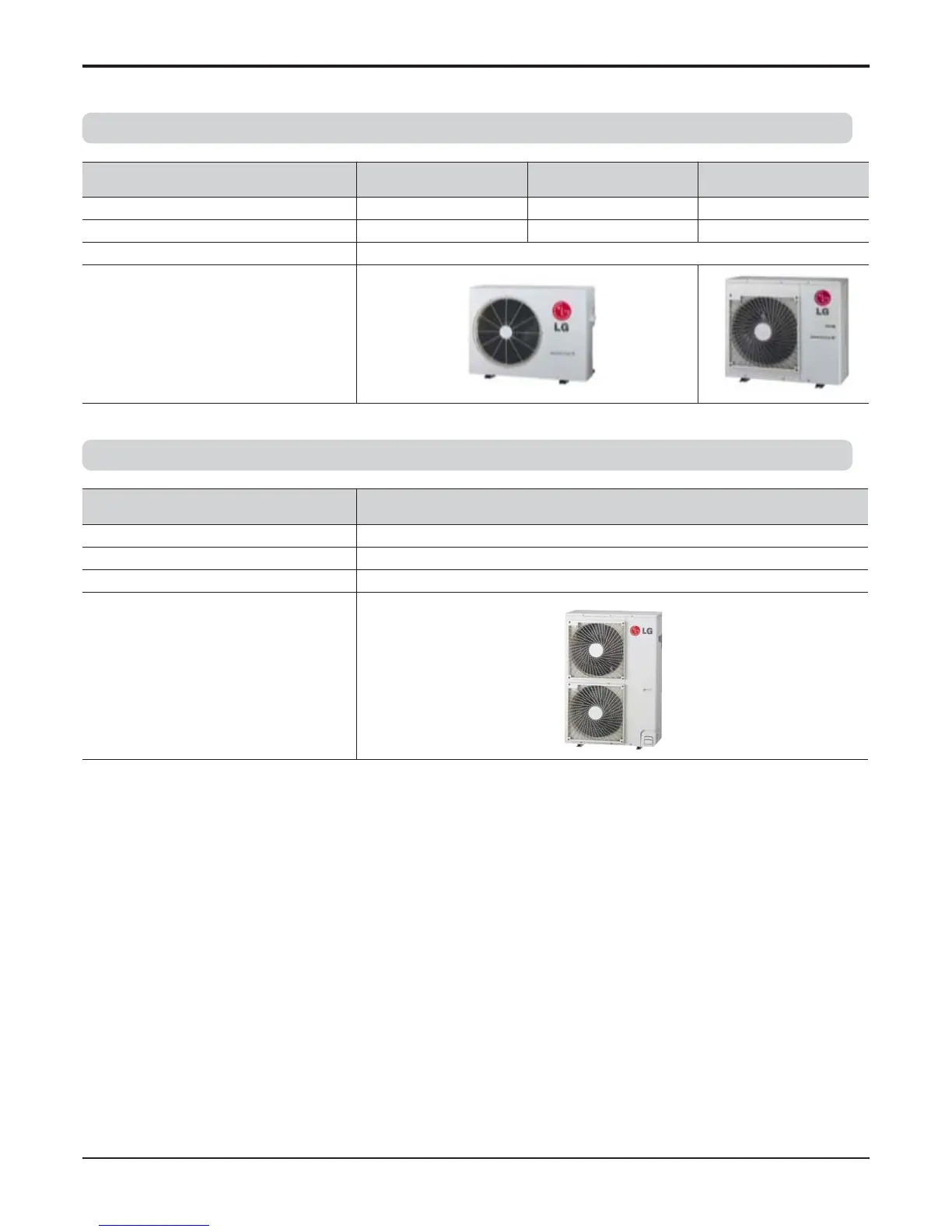

LG LMCN125HV Service Manual

- 7 -
Part 1 General Information
2.2 Outdoor units
Copyright ©2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
Multiple Piping Type
Branch Distribution type
Model Name
A2UW18GFA0
[LMU18CHV]
A3UW24GFA0
[LMU24CHV]
A4UW36GFA0
[LMU36CHV]
No. of connectable indoor units (Min. ~ Max.) 2 ~ 2 2 ~ 3 2 ~ 4
Total capacity index of connectable indoor units 24 33 48
Power supply 208/230V, 1Ø, 60Hz
Chassis
Model Name A8UW54GFA0[LMU540HV]
No. of connectable indoor units (Min. ~ Max.) 2 ~ 8
Total capacity index of connectable indoor units 73
Power supply 208/230V, 1Ø, 60Hz
Chassis

LG LMCN125HV Specifications

General

Cooling Capacity	12, 000 BTU/h
Energy Efficiency Ratio (EER)	11.0
Refrigerant	R410A
Power Supply	208-230V/60Hz/1Ph
Operating Temperature (Cooling)	18°C to 43°C
Operating Temperature (Heating)	5-75°F
Dimensions (Indoor Unit)	790 x 250 x 190 mm
Dimensions (Outdoor Unit)	700 x 500 x 240 mm
Weight (Indoor Unit)	19.8 lbs
