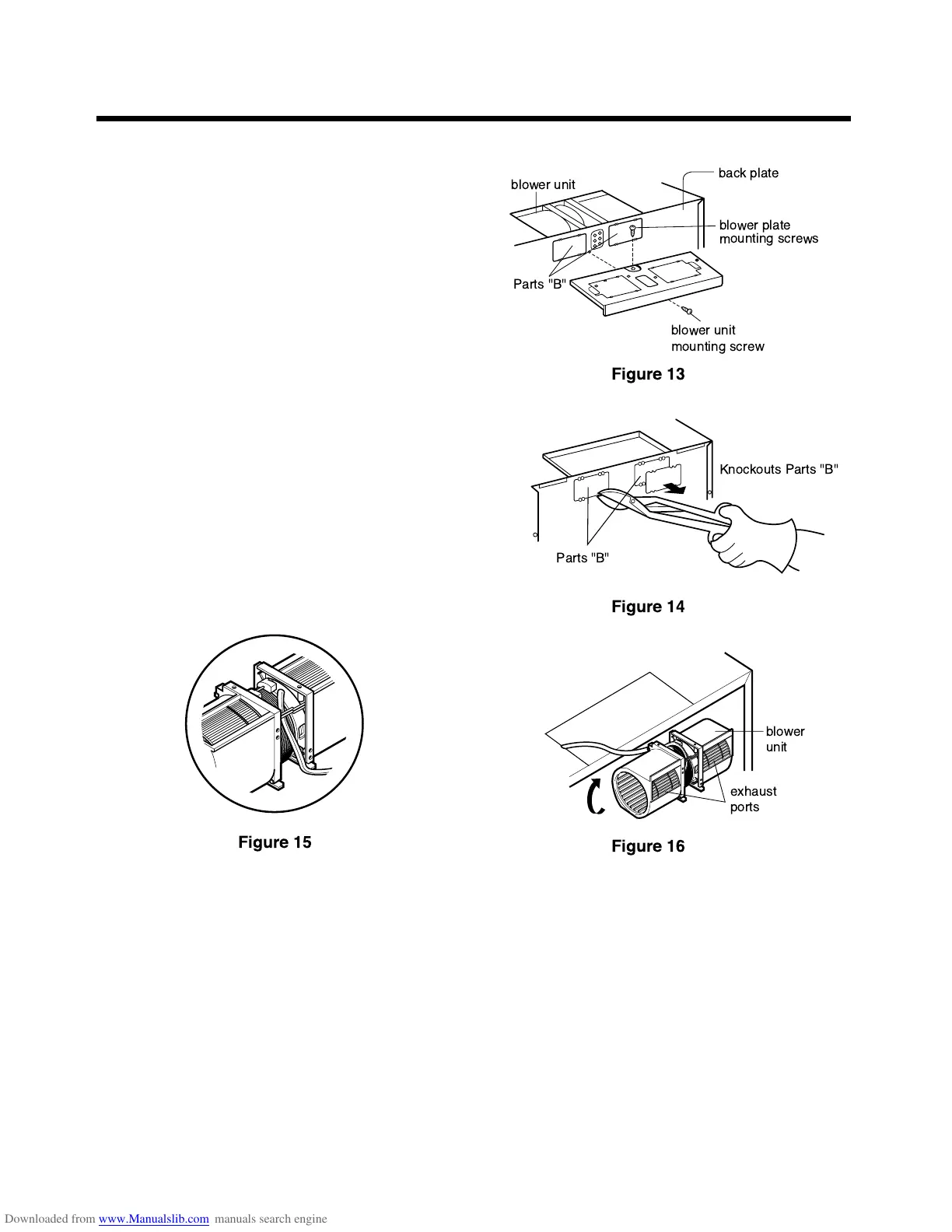

WALL-VENTED INSTALLATION:
1. Remove one blower unit mounting screw and one
blower plate screw. Remove the blower plate from
cabinet. See Figure 13.
2. Carefully lift the blower unit out of the microwave oven.
3. Use side cutters or tin snips to cut and remove
knockouts “B” from Back plate. Discard knockouts.
Be careful not to distort the plate. See Figure 14.
4. Reassemble the blower wire. See Figure 15.
5. Rotate the unit so that the exhaust ports face the rear
of the cabinet. See Figure 16. When you insert blower
unit, blower wire must be like figure 16.
6. Place blower unit back into cabinet. Check that the
exhaust ports face towards the rear of the cabinet.
See Figure 17.
7. Reattach the blower plate to cabinet so the exhaust
ports and blower plate opening are aligned. Attach with
one blower unit mounting screw and then one blower
plate mounting screw. See Figure 18.
STEP 3:
PREPARE THE VENTING BLOWER
— 11 —
