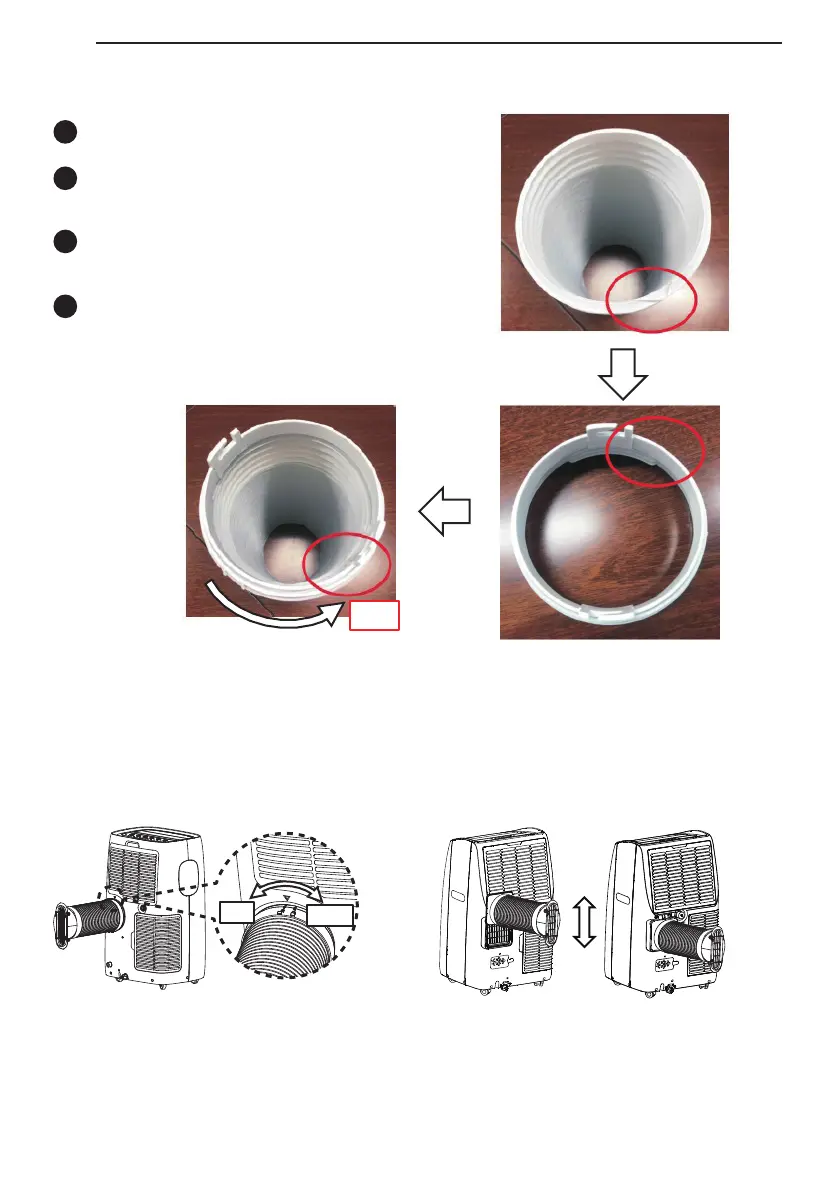

Assembling the Flexible Vent Hose Set
Attaching the Flexible Vent Hose Set
Pull evenly on the folds to extend one end of the
flexible vent hose.
1
Insert the mounting bracket on to the end of the
vent hose, aligning the mounting bracket threads
with the notch on the flexible vent hose.
2
Turn the mounting bracket counterclockwise
though 5 rotations or until the flexible vent hose
is firmly attached.
3
Repeat the process to attach the diffuser to the
other end of the flexible vent hose.
4
Lock
Lock
Unlock
Unlock
• Round Type
Insert the mounting bracket and
rotate it to lock it in place.
• Square Type
Insert the mounting bracket and
slide it to lock it in place.
Lock
INSTALLATION
