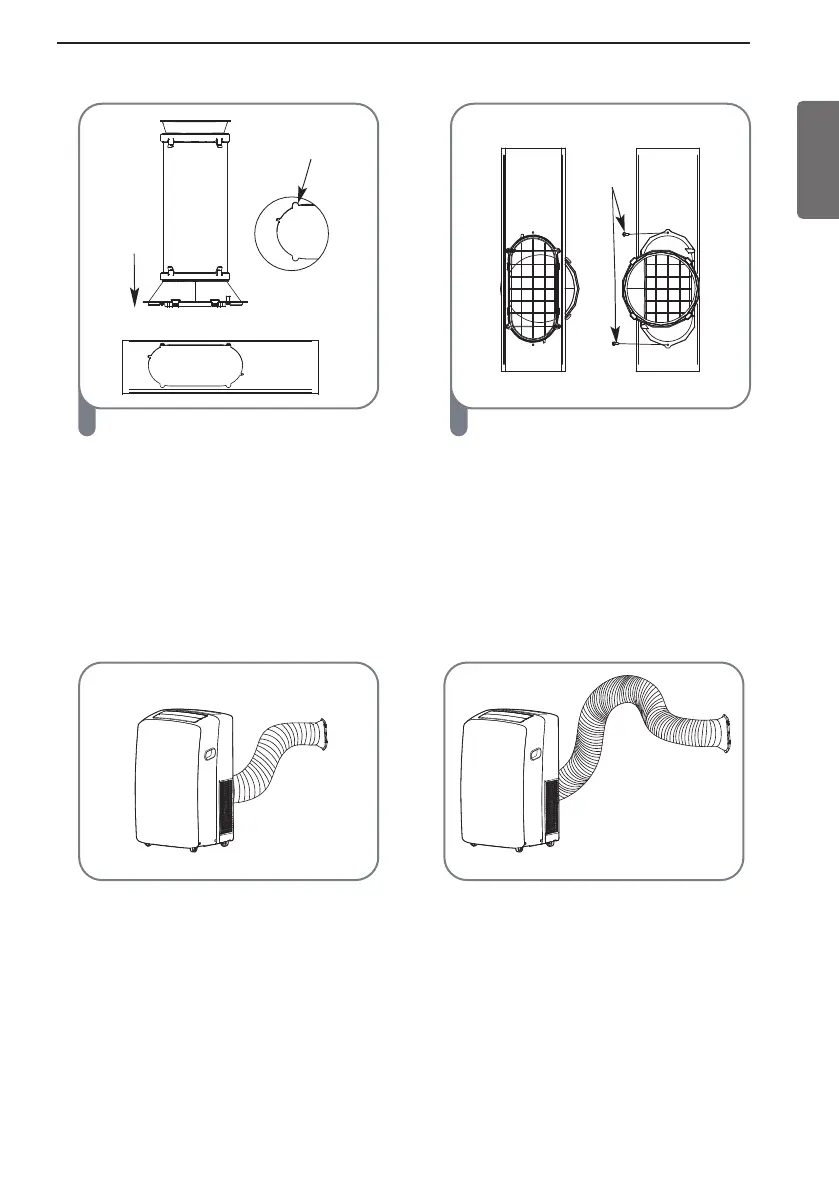

Align the tabs on the diffuser with slots in the
outer slide section. Insert the diffuser into the
opening in the vent panel.
NOTE
Best positioning Inverted U shape
• For a tighter seal, use "no residue" duct tape (not provided) to seal any gaps around the installed
panel assembly, around the diffuser, and between the sashes.
• For best results, keep the vent hose as short and straight as possible. However, shape the diffuser
end of the vent hose into an inverted U shape just inside the window to allow any rain or
condensation to drain out the window.
Slot
Insert
Insert the screw in the hole in the diffuser to
prevent the diffuser from sliding out of the
vent opening.
Screw
INSTALLATION
