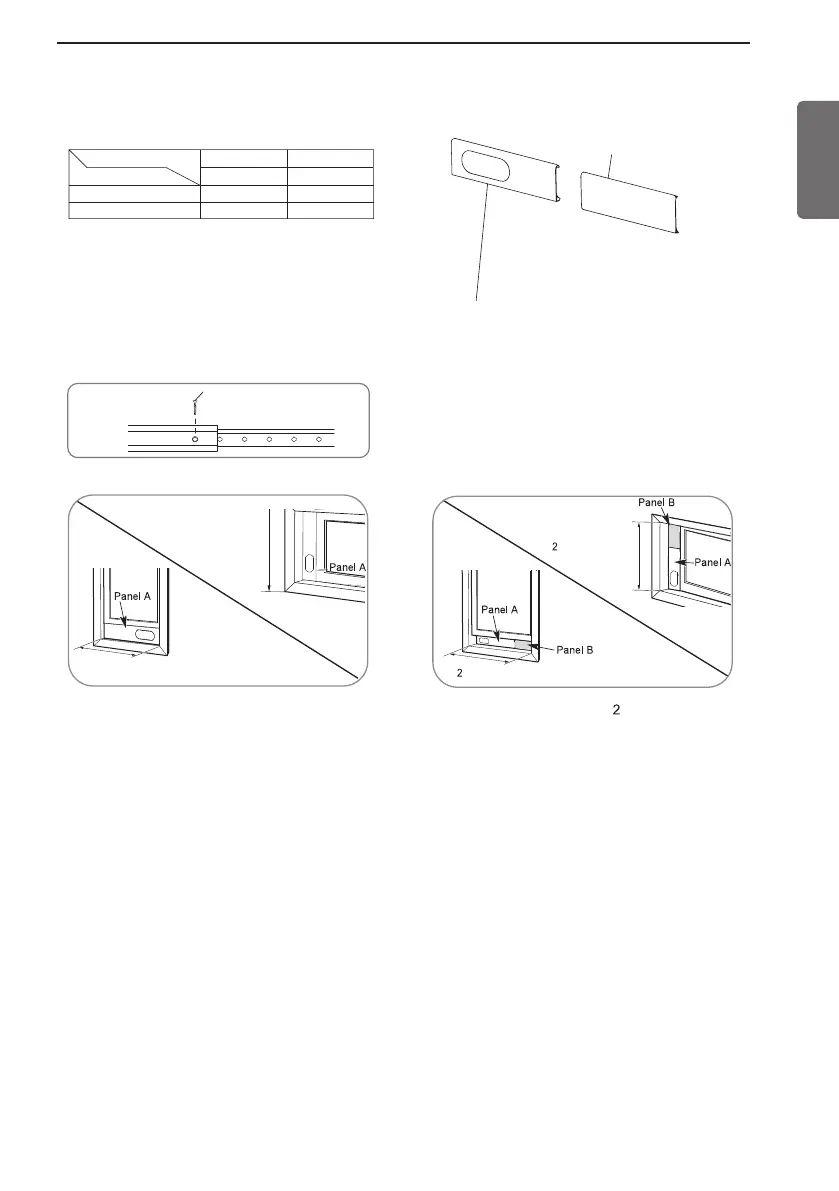

Window Vent Panel and Extensions
The window installation kit allows you to install the air conditioner in most vertical-sliding windows 52 cm to
104,4 cm wide, or horizontal-sliding windows from 52 cm to 101,4 cm high.
Fig. a
Fig. b
Window Installation Kit
(Includes 1 window vent panel and 1 extension panels)
Panel A (52 cm)
Panel B (52 cm)
1 Extension Panels
1 Window Vent Panel
Panel
Window opening
A
52
B
52
√
√
Screw A
1. Select the panels required based on the
window opening, as shown above.
2. For longer window openings, assemble and
adjust the panels to fit the window opening.
Use Type A Screws (included) to fix the panels
together at the proper length.
For window openings from 5
cm to 101,4 cm,
use the window vent panel (Panel A) and
extension Panel B.
For an 52 cm window opening, use the window
vent panel (Panel A) by itself.
52
52 – 101,4
(unit: cm)
√
52 cm
52 cm
5
cm - 101,4 cm
5
cm - 101,4 cm
