INSTALLATION INSTRUCTIONS
WINDOW VENT PANEL AND EXTENSIONS
The window installation kit allows you to install the air conditioner in most vertical-sliding windows 18” to
50” wide, or horizontal-sliding windows from 18” to 50” high.

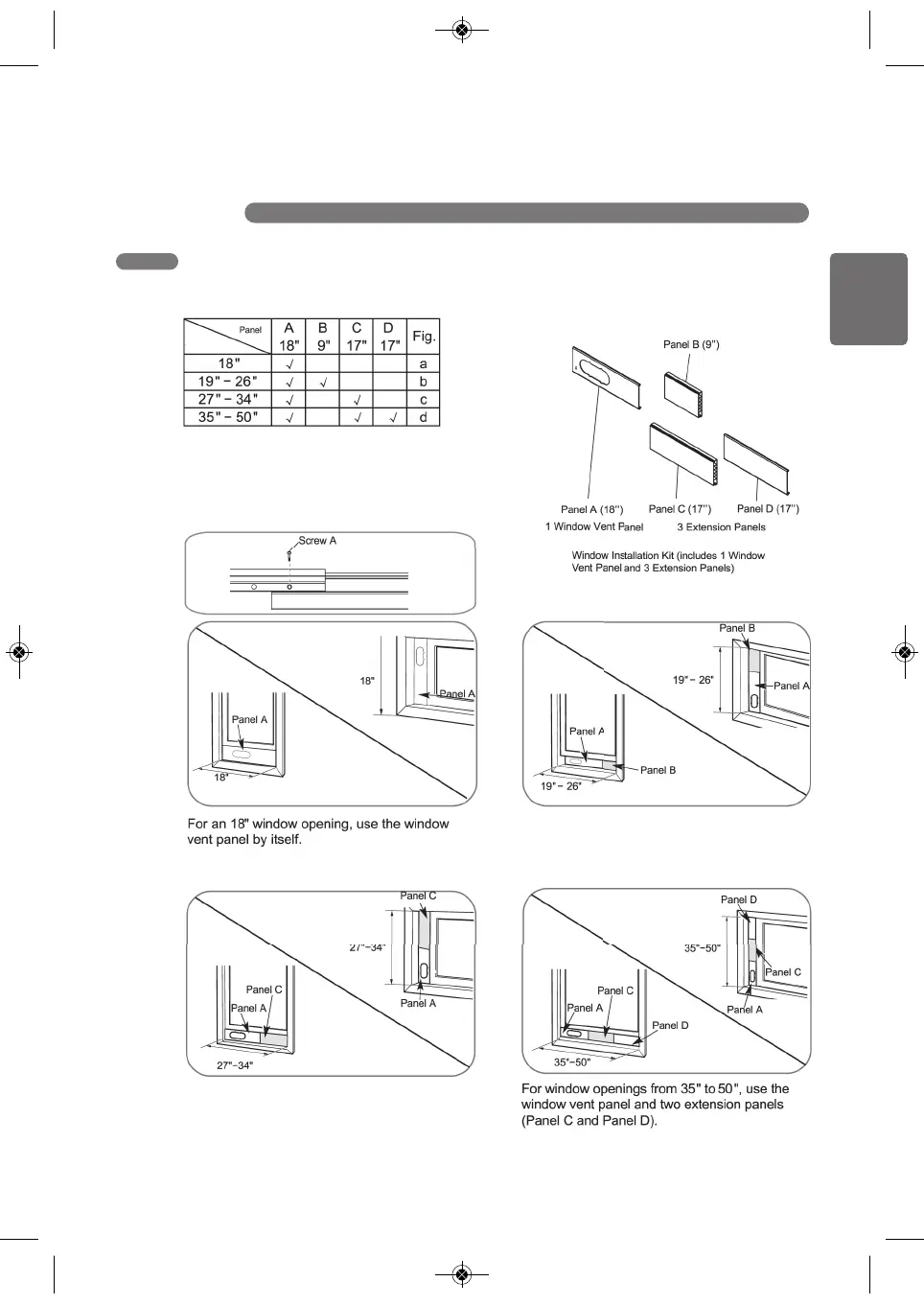

1. Select the panels required based on the window
opening, as shown above.
2. If the installation requires 2 or 3 panels, assemble
the panels to the proper length and fix them in
place with 1 type A screw.
For window openings from 19” to 26”, use the
window vent panel (Panel A) and an extension
panel (Panel B).
For window openings from 27” to 34”, use the
window vent panel (Panel A) and an extension
panel (Panel C).
Window opening
Fig. a Fig. b
Fig. c Fig. d
