Service Bulletin
UJ63 Repair Instruction

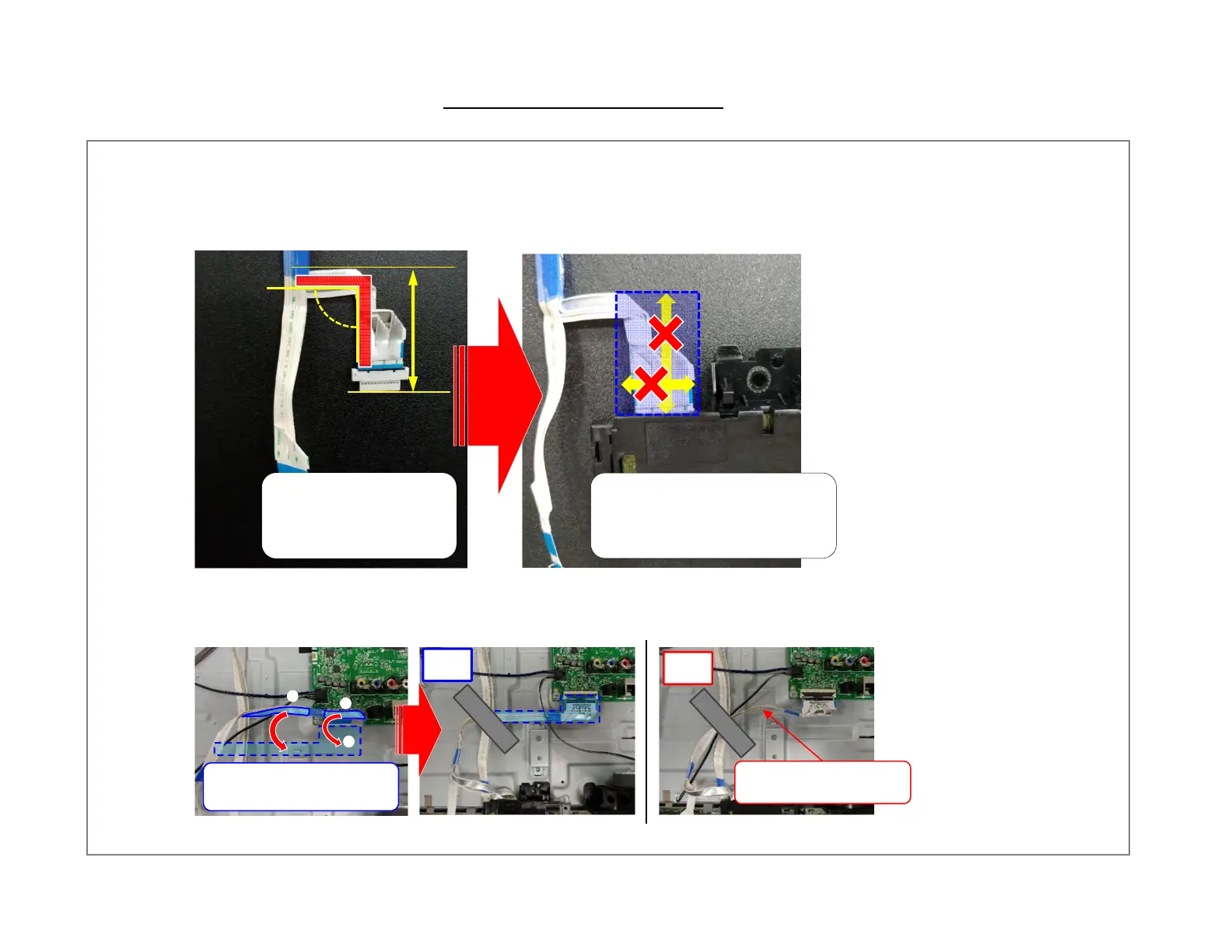

1) Cable Preparation and Precautions: (UJ63 all models)
a. Wi-Fi cable Preparing, Precautions for Wi-Fi Board connection during SVC.
b. Precaution of Wi-Fi cable arrangement.
Cable Aluminum-shield should be in contact with module rear surface.
Prepare the Wi-Fi
Cable at 90° as shown
in the picture as 1.77”.
Make sure that there is no
upward/downward or left / right
bending force in the vicinity of
the Wi-Fi Cable (blue part).
90º
1.77 Inches
OK
NG
AL-Shield ① of on the Wi-Fi cable
back surface should be contacted
with the back of module ②.
Aluminum-Shield isn’t making
contacted with module
①
①
②
Page 5
Product: TV
Bulletin #:
GLZ201900187-01
Release Date: 2019-11-05
Please refer to below (page 18)
