8. Trouble Shooting
Symptom Check Point
1. FS E 1. Check for a loose connection
2. Check Sensor Resistance
8. Trouble Shooting

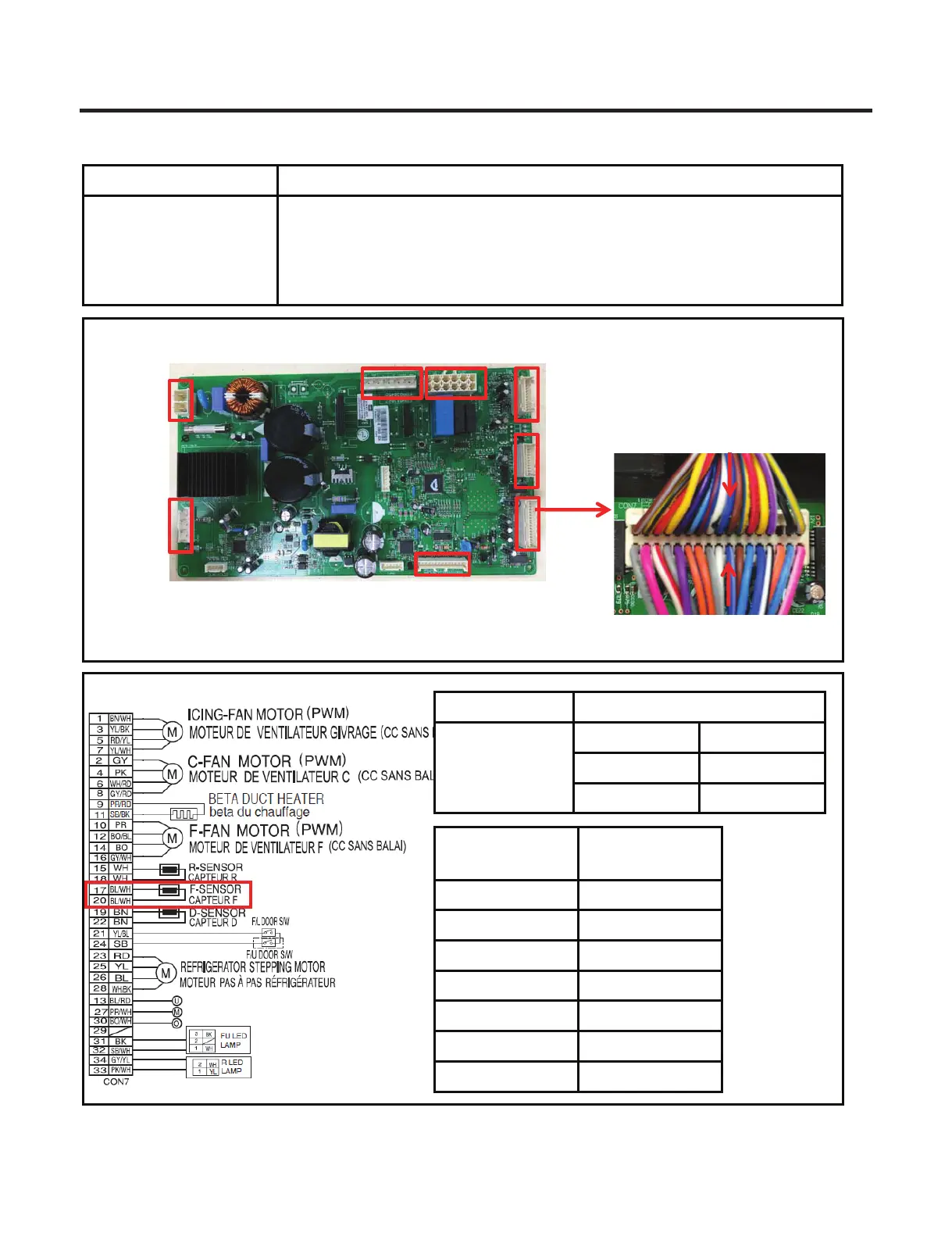

8-1. Freezer Sensor Error (FS E)
CON6
CON1
CON201
CON4
CON5
CON7
CON2 CON3
Resistance [
CON7
17
th
pin ~ 20
th
pin
Short 0
Open OFF
Other Normal
CON7
17
th
pin ~ 20
th
pin
Resistance [
-22ºF / -30ºC 40k
-13ºF / -25ºC 30k
-4ºF / -20ºC 23k
5ºF / -15ºC 17k
14ºF / -10ºC 13k
23ºF / -5ºC 10k
32ºF / 0ºC 8k
