-26-
Symptom Check Point
1. rS E 1. Check for a loose connection
2. Check Sensor Resistance

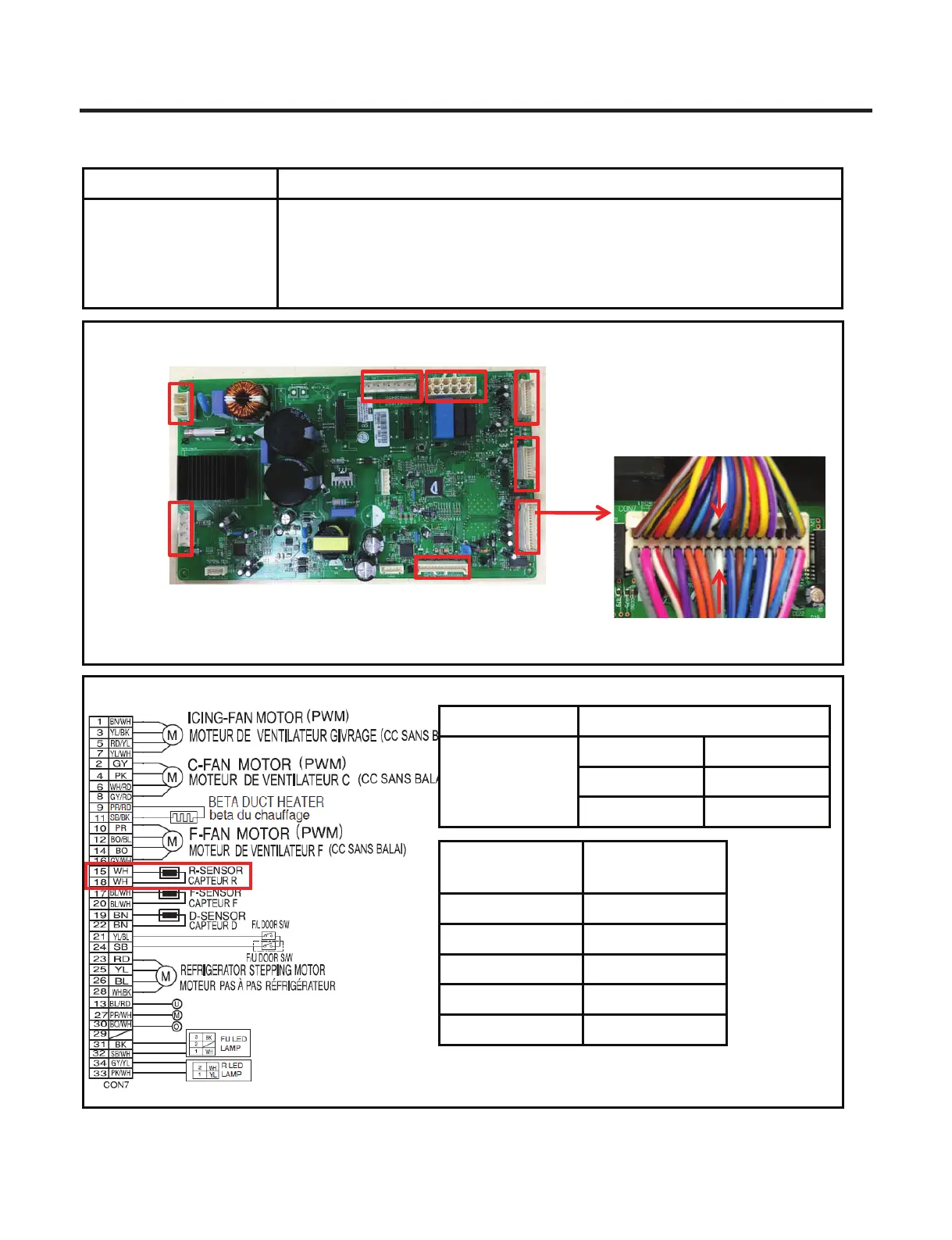

8-2. Refrigerator Sensor Error (rS E)
CON6
CON1
CON201
CON4
CON5
CON7
CON2 CON3
Resistance [
CON7
15
th
pin ~ 18
th
pin
Short 0
Open OFF
Other Normal
CON7
15
th
pin ~ 18
th
pin
Resistance [
23ºF / -5ºC 38k
32ºF / 0ºC 30k
41ºF / 5ºC 24k
50ºF / 10ºC 19.5k
59ºF / 15ºC 16k
