REFRIGERATOR INSTREFRIGERATOR INSTALLATION

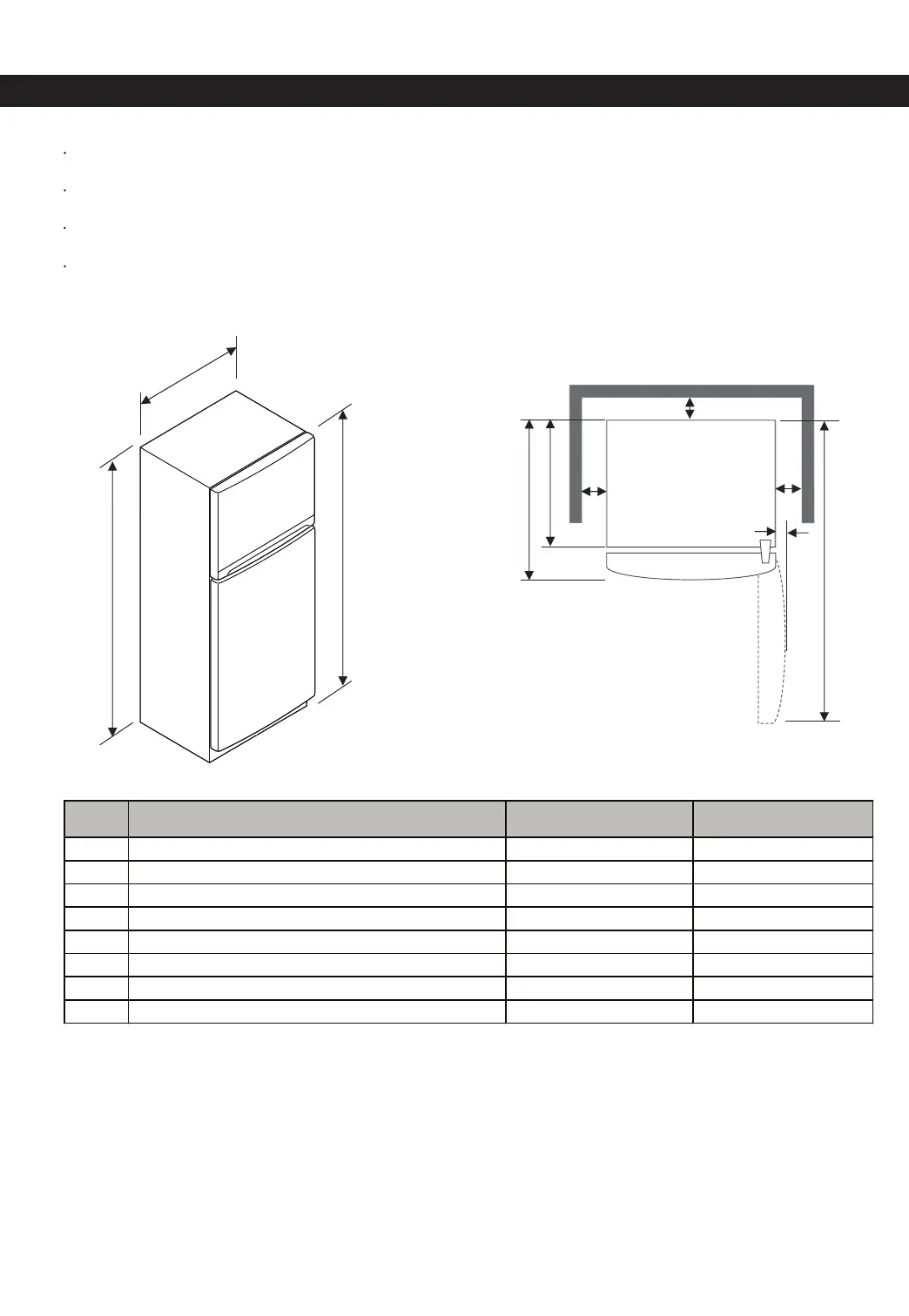

DIMENSIONS AND CLEARANCES
E
E
E
C
A F
B
D
H
G
- Dimension/Clearance
20.2 cu.ft.
23.8 cu.ft.
A Depth 33.9" (861 mm) 34" (863.6 mm)
B Width 29.9"
(
759.5 mm) 33" (838.2 mm)
C Height to Top of Case 65.6 " (1,666.9 mm) 68" (1,727.2 mm)
D Height to Top of Hinge 66.1" (1,679 mm) 69” (1,752.6 mm)
E Cabinet Back / Side Clearance 2" (50.8 mm) 2” (50.8 mm)
F Depth without Door 29.5" (749.5 mm) 29.5” (749.5 mm)
G Door Edge Clearance (Door Open 90°) 2" (50.8 mm) 2” (50.8 mm)
H Depth (Total with Door Open 90°) 60.3" (1,530.4 mm) 63.3"
(1,606.5 mm)
Check the dimensions of the appliance and the installation path to ensure there is sufficient room to move the refrig-
erator through doors or narrow openings.
If an opening is too narrow to fit the refrigerator through, remove the refrigerator doors. See How to Remove and
Install the Refrigerator Doors in this manual.
The installation location chosen for the refrigerator should allow space behind the unit for connections and airflow
and space in front to open the doors and drawers.
Too small of a distance from adjacent items may result in lowered freezing capability and increased electricity
consumption charges. Allow at least 34 inches (863.6mm) for 23.8 cu.ft. and 31 inches (787.4 mm) for 20.2 cu.ft.
model in front
of the refrigerator to open the doors, and at least 2 inches (50.8mm) between the back of the refrig-
erator and the wall.
