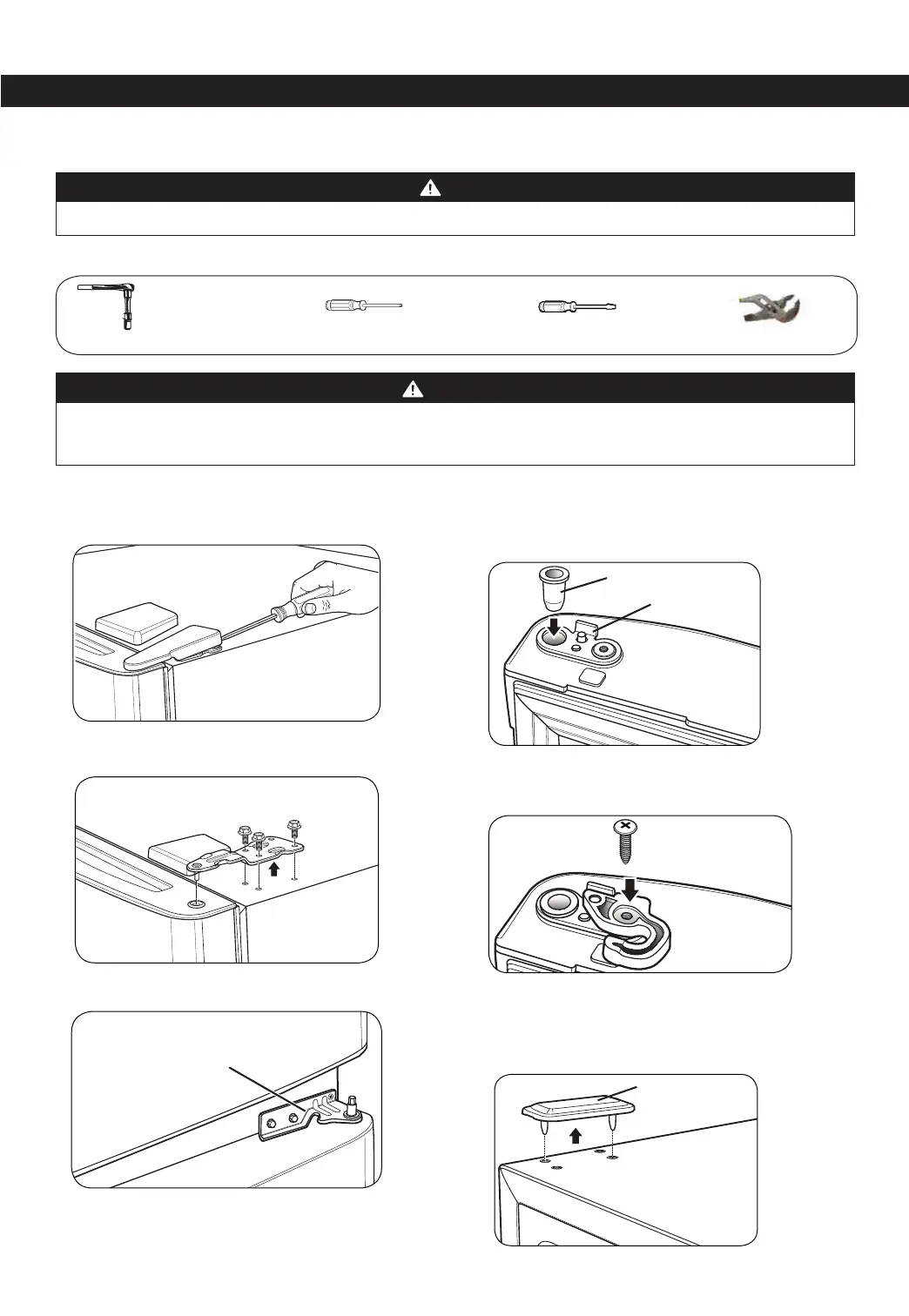

HOW TO REVERSE AND INSTALL THE REFRIGERATOR DOORS (on some models)
You may find it more convenient to have the doors converted from the left opening type (factory installed) to the right
opening type. Directions refer to the right side as the side on your right as you face the unit.
1. Removing Freezer Door
Gently pry off the top hinge cover
with a flat head
screwdriver and remove.
Using 10mm or 3/8 inch socket wrench, remove the
three bolts and lift off the top hinge. Set parts aside
Slightly lift up the refrigerator door and remove it.
Reverse the Door Closer/Stop by flipping it over. Place
it
on top of the Hinge Pin Insert Bracket, and tighten bo
th
down with the screw.
Pry off the cover on the top left side of the refrigerator to
uncover the screw holes.
Set the freezer door and top hinge parts to the side and
remove the refrigerator door.
REFRIGERATOR INSTALLATION
Hinge Pin
Middle Hinge B racket
Hinge Pin
Insert Bracket
Hinge Pin Insert
Cover
(on top of
refrigerator)
WARNING
ELECTRICAL SHOCK HAZARD
CAUTION
Before you begin, either unplug the refrigerator or turn off the power at the circuit breaker or fuse box. Remove
food and any door rack from the refrigerator. Failure to do so could result in death or serious injury.
Door reversal must be done by an authorized installer or service person. If it is not, the doors will not be
covered by the warranty.
TOOLS YOU MIGHT NEED OR USE
3/8 in
10 mm
Hex Socket Wrench Phillips Screwdriver No. 2 Flat Head Screwdriver Adjustable Wrench
1/4 in
Move the Hinge Pin Insert Bracket to the other side of the
door, keeping the same orientation, and move the Hinge
Pin Insert into the hole on the left side of the bracket.
Turn the freezer door upside down on a non-scratch
surface. Loosen the screw to remove the Door
Closer/Stop and Hinge Pin Insert.
To Next Page
