To replace doors, begin with refrigerator door and then
follow with freezer door.
3. Replacing Refrigerator Door

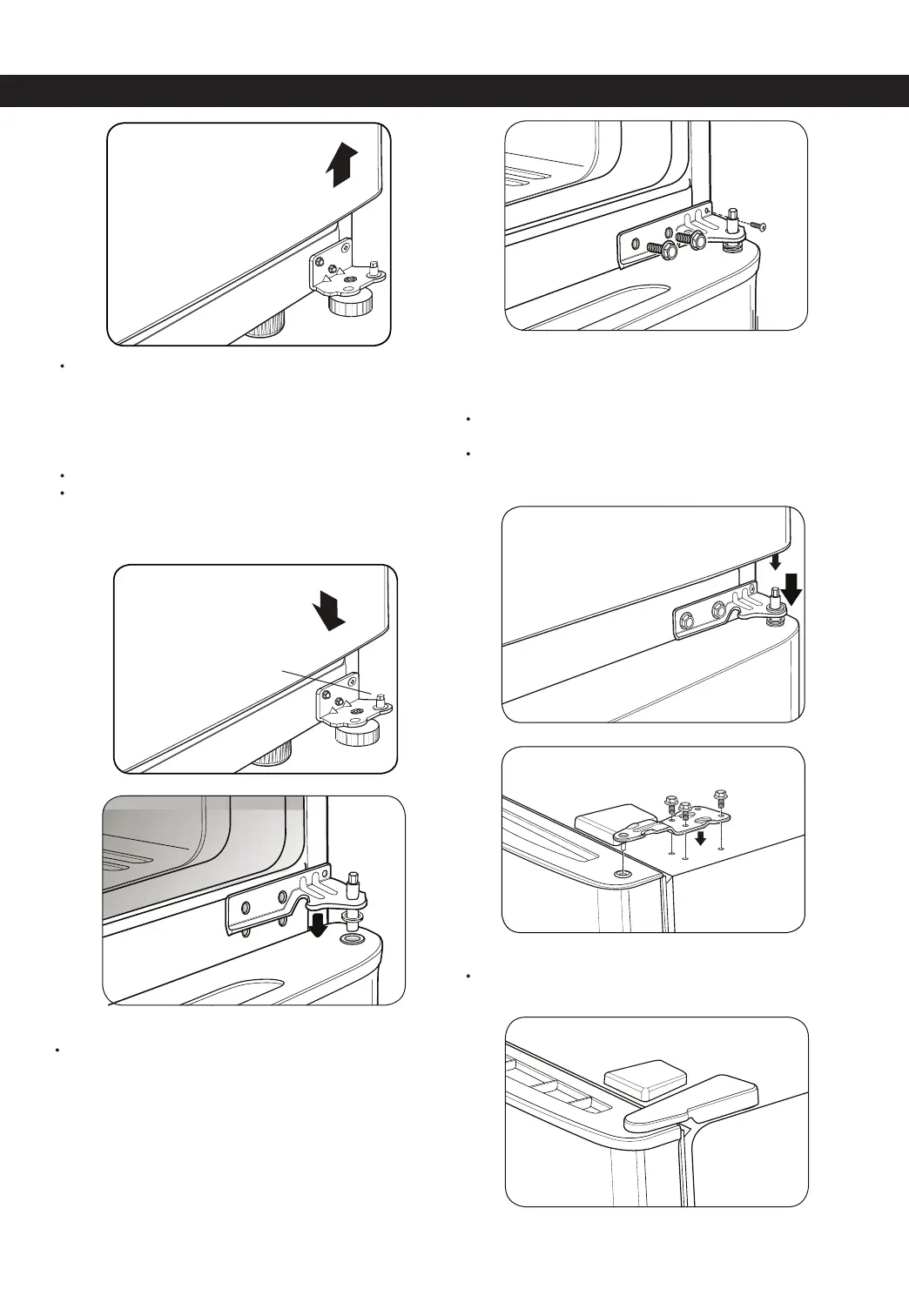

Set door on Bottom Hinge Pin (See Figure 7).
Place hinge pin of middle bracket inside the hinge pin
insert on the top of the door (See Figure 8). Hold the
door in place and line up the hinge with the holes in
the refrigerator housing.
Use the two bolts and the screw to refasten the middle
hinge with the refrigerator housing. See Figure 9.
4. Replacing Freezer Door
Set the freezer door onto the Middle Hinge pin (Figure
10).
Place upper hinge in the top of the freezer door and
line up the hinge with the holes in top of refrigerator.
Use the three bolts to fasten the hinge (See Figure 11).
Carefully, force the top hinge cover back into place over
hinge (See Figure 12).
REFRIGERATOR INSTALLATION
Fig. 8
Fig. 9
Fig. 12
Bottom Hinge Pin
Fig. 6
Fig. 10
Fig. 7
REFRIGERATOR INSTALLATION
Fig. 11
8

LG LRTLS2403S Specifications

General

Type	freestanding
Style	contour; top freezer
Color	stainless steel; grey
Total Capacity	23.80 cu. ft.
Refrigerator Capacity	17.60 cu. ft.
Freezer Capacity	6.20 cu.ft.
Humidity Controlled Crispers	2 humidity crispers
Number of Refrigerator Shelves	2
Number of Refrigerator Door Bins	3
Temperature Control	electronic/digital; yes
Temperature Sensor	3
Wine Rack	no
Interior Light	ceiling led
Dispenser	internal; water dispenser only
Ice Maker	optional; ice maker ready
Water Filter	yes; lt500p
Smart Home	no
Wi-Fi	no
Annual Energy Consumption	417

Weight and Dimensions

Depth	34 inch
Height	69 inch
Width	33 inch
