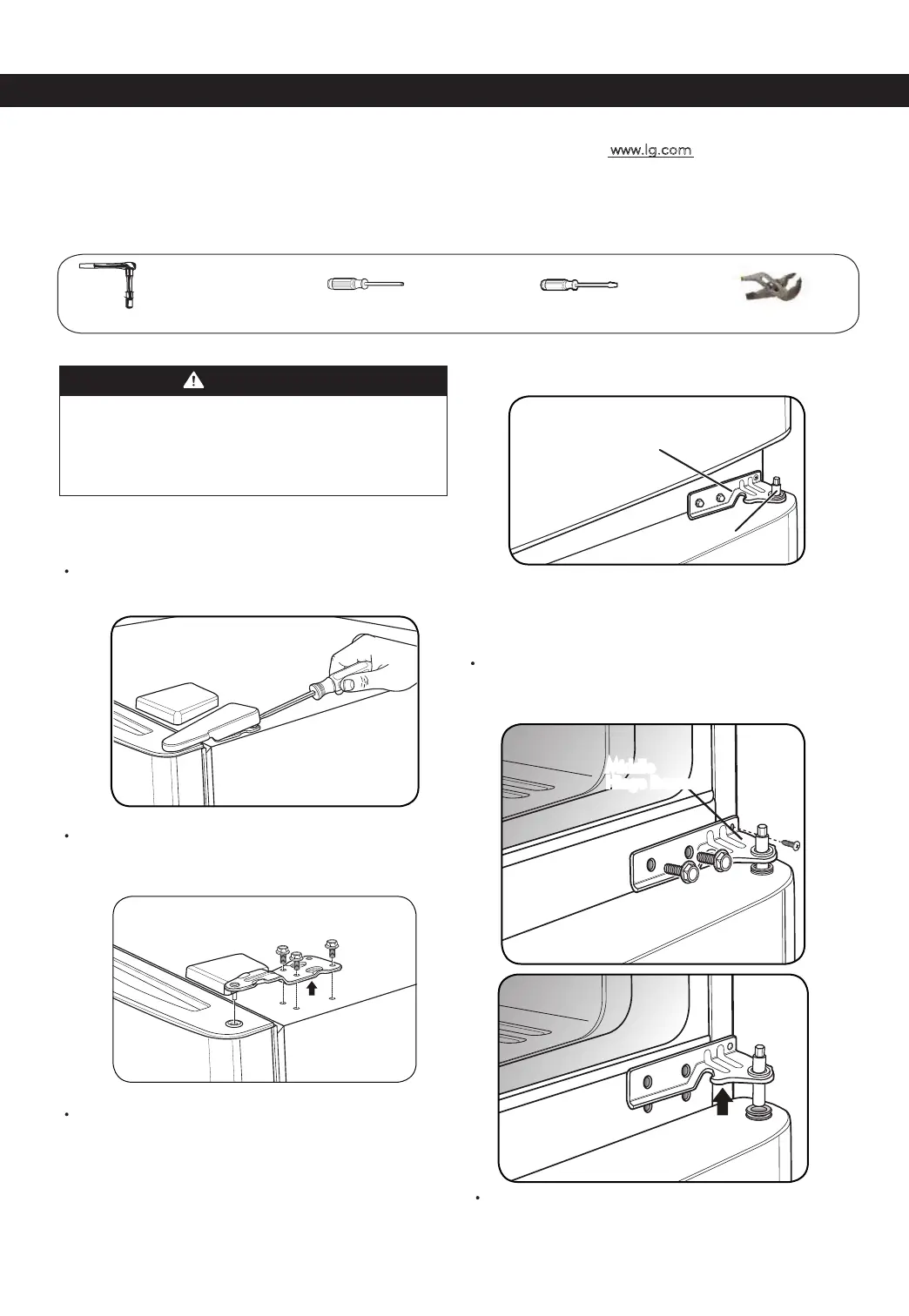

HOW TO REMOVE AND INSTALL THE REFRIGERATOR DOORS
If entrance is lees than 35 inches wide, the refrigerator’s door will need to be removed.
IMPORTANT: Before starting, turn off and unplug the refrigerator. Remove all food and the racks from the doors.
TOOLS YOU MIGHT NEED OR USE
3/8 in
10 mm
Hex Socket Wrench Phillips Screwdriver No. 2 Flat Head Screwdriver Adjustable Wrench
WARNING
ELECTRICAL SHOCK HAZARD
Before you begin, either unplug the refrigerator or
turn off the power at the circuit breaker or fuse box.
Remove food and any door rack from the refrigerator.
Failure to do so could result in death or serious injury.
1. Removing Freezer Door
Gently pry off the Top Hinge Cover with a flat head
screwdriver and remove it. See Fig. 1.
Using 10 mm or 3/8 inch socket wrench, remove
the three bolts and lift the Top Hinge (See Fig. 2). Set
parts aside.
Lift freezer door slightly and remove it (See Fig. 3) Set
parts aside.
2. Removing Refrigerator Door
Loose and remove the two bolts and the screw to
remove the middle hinge bracket from refrigerator
housing (Figure 4). Set parts aside (Figure 5).
Lift up door slightly and remove it (See Figure 6).
REFRIGERATOR INSTALLATION
Hinge Pin
Middle Hinge Bracket
Fig. 1
Fig. 3
Fig. 4
Fig. 5
1/4 in
(For additional support on this topic, including helpful videos, please visit us at: www.lg.com
).
Fig. 2
Middle
Hinge Bracket
To Next Page
