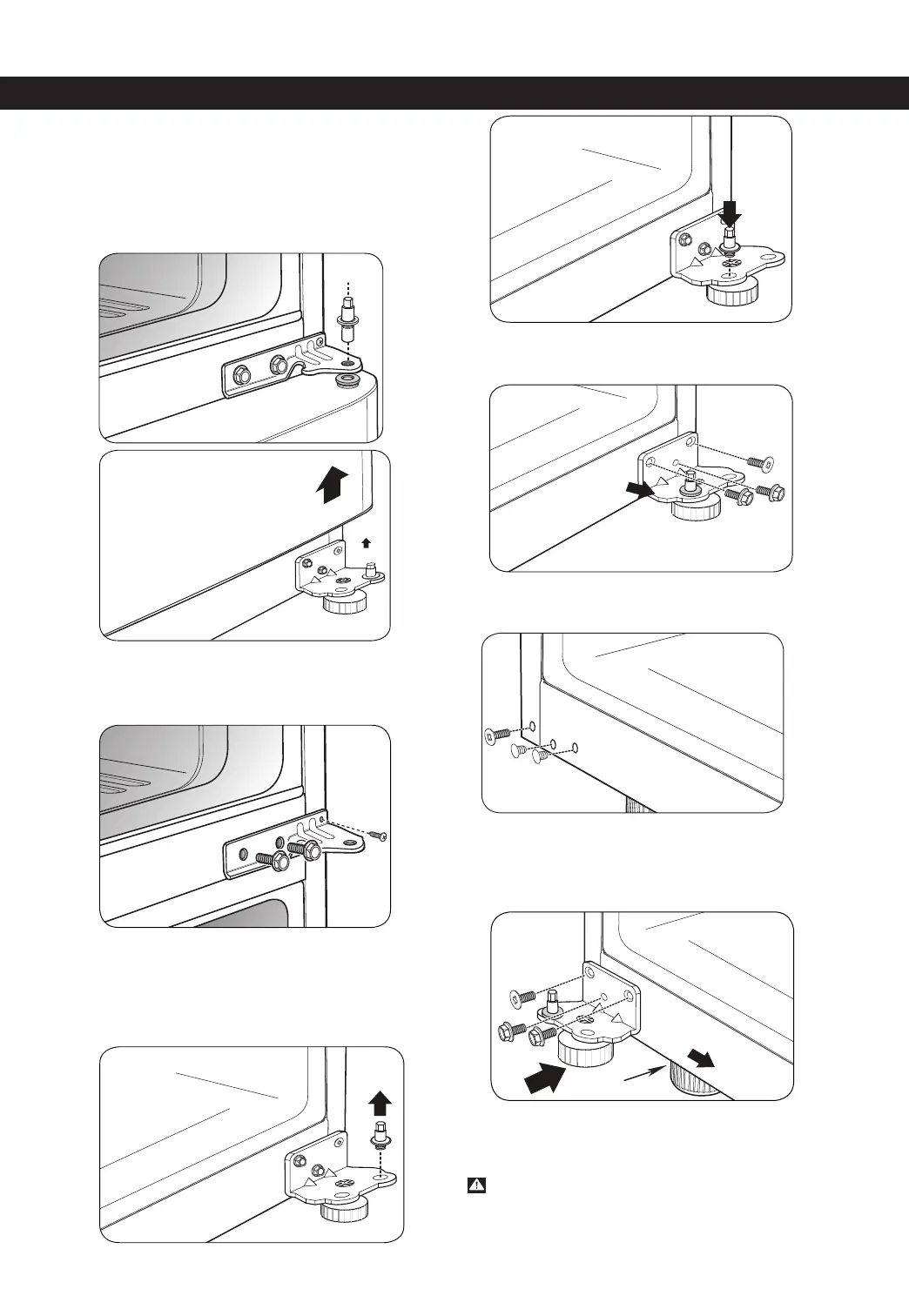

2. Reversing and Reinst
alling Refrigerator Door
REFRIGERATOR INSTALLATIONREFRIGERATOR INSTALLATION
Leveler
Using a ¼” socket wrench, loosen and remove Hinge Pin
from the Middle Hinge Bracket. Remove washer under-
neath the middle hinge and set aside.
NOTE: At this point the door will be loose. Slightly lift the
door and remove it.
Using a 3/8’’ socket wrench with a 2-Inch extension and
screwdriver, loosen the two bolts and one screw, and
remove the Bottom Hinge from right side of the housing.
Remove the Decorative Caps on the bottom of the refrig-
erator housing. You will need these holes for the Bottom
Hinge.
Move the Bottom Hinge to the left side of the housing,
keeping the same orientation, and reattach with the two
bolts and one screw. The flat screw must be placed on
the exterior side of the hinge. Move the Decorative Bolt
to the hole on the lower right side of the housing.
Turn the refrigerator door upside down on a
nonscratching surface. Loosen the two screws to
remove the Bottom Hinge Pin Insert Bracket with the
Hinge Pin Insert.
WARNING: If you reinstall or replace doors, move the
leveler to the opposite site.
NOTE: The leveler is only present on some models.
Loosen and remove the two bolts and use the Phillips head
screwdriver to remove the Middle Hinge Bracket from the
refrigerator housing. Set parts aside.
Remove the washer from the Bottom Hinge Pin. Using a
¼” socket wrench, loosen and remove the Hinge Pin from
the Bottom Hinge. Reattach the Hinge Pin to the opposite
side of the hinge.
NOTE: This is easier to do while the hinge is still attached.
