A
A
B
Oil trap
Outdoor unit
Indoor unit
Outdoor unit
Indoor unit
B

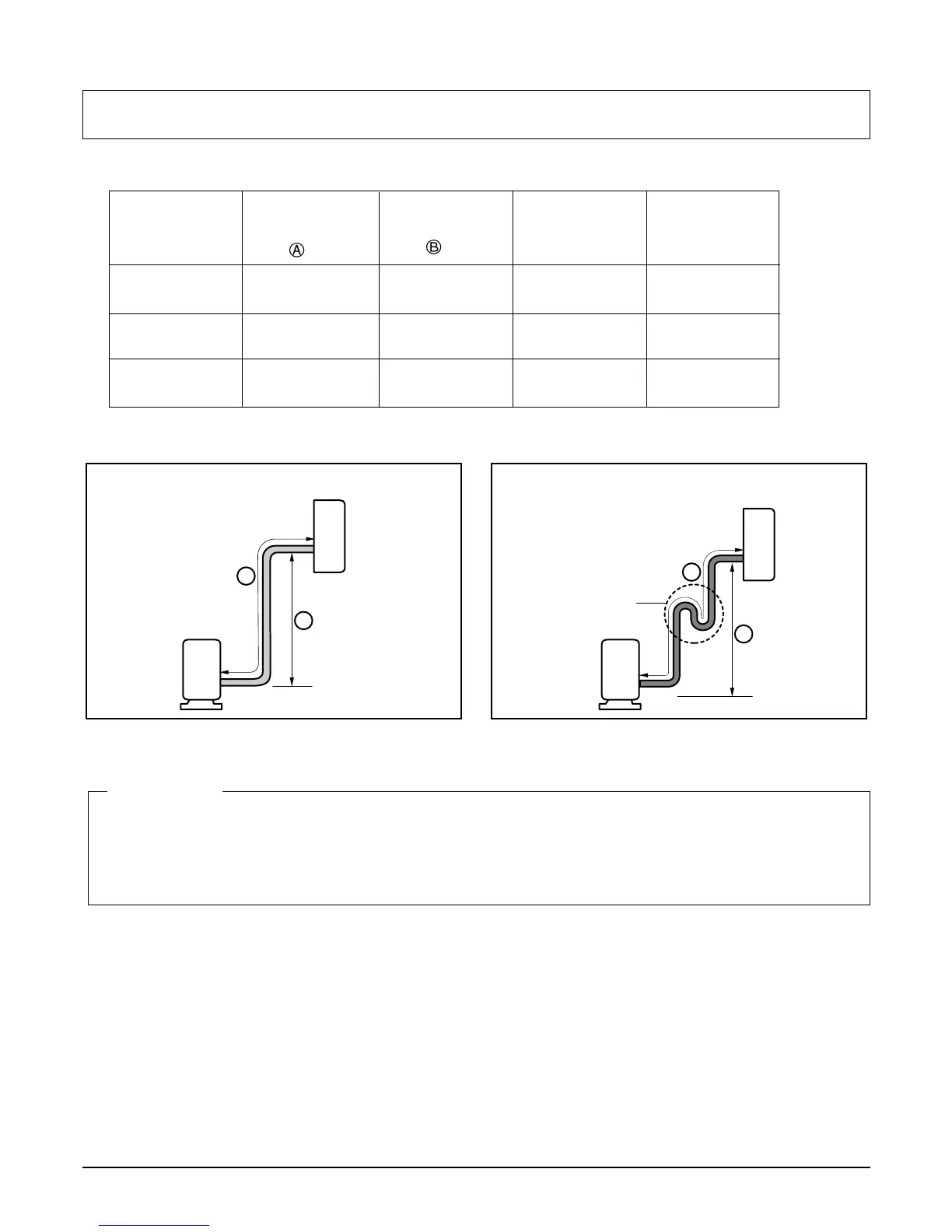

6. Pipe length and the elevation
• Capicity is based on standard length and maximum allowance length is the basis of reliability.
• Oil trap should be installed per 5~7 meters.
• Numerical value in "( )" is for Rotary Comp. model.
CAUTION
In case more than 5m
Max. Piping
Length
(m)
Capacity
(Btu/h)
7~12K 15 7 5 20
18K 30(20) 15(10) 5 20
24K~30K 30 15 5 30
Max.
Elevation
(m)
Standard
Length(m)
Additional Refrig-
erant
(g/m)
